Diodes / Rectifier Diodes / STPSC20065W
Datasheets
STPSC20065W by: STMicroelectronics

Rectifier Diode, Schottky, 1 Phase, 1 Element, 20A, 650V V(RRM), Silicon Carbide, DO-247

Part Details for STPSC20065W by STMicroelectronics

Results Overview of STPSC20065W by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy

STPSC20065W Information

STPSC20065W by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for STPSC20065W

Part # Distributor Description Stock Price Buy
DISTI # 497-19232-ND
DigiKey DIODE SIL CARBIDE 650V 20A DO247 Min Qty: 1 Lead time: 25 Weeks Container: Tube 90
In Stock
  • 1 $6.2400
  • 30 $3.5523
  • 120 $2.9603
  • 510 $2.5263
  • 1,020 $2.4654
$2.4654 / $6.2400 Buy Now
DISTI # STPSC20065W
Avnet Americas - Rail/Tube (Alt: STPSC20065W) COO: Italy RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks, 0 Days Container: Tube 2400
  • 1 $6.1182
  • 2 $3.3884
  • 4 $2.9302
  • 8 $2.9152
  • 16 $2.9003
$2.9003 / $6.1182 Buy Now
DISTI # STPSC20065W
Avnet Americas - Rail/Tube (Alt: STPSC20065W) COO: Italy RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks, 0 Days Container: Tube 2400
  • 1 $6.1182
  • 2 $3.3884
  • 4 $2.9302
  • 8 $2.9152
  • 16 $2.9003
$2.9003 / $6.1182 Buy Now
DISTI # 511-STPSC20065W
Mouser Electronics SiC Schottky Diodes 650 V power Schottky silicon carbide diode RoHS: Compliant 0
  • 1 $6.1800
  • 10 $3.4400
  • 100 $2.9900
  • 600 $2.5600
  • 1,200 $2.4600
$2.4600 / $6.1800 Order Now
DISTI # E02:0323_10179743
Arrow Electronics Diode Schottky SiC 650V 20A 2-Pin(2+Tab) DO-247 Tube COO: China RoHS: Exempt Min Qty: 600 Package Multiple: 30 Lead time: 25 Weeks Date Code: 2414 Europe - 600
  • 600 $2.4369
  • 1,020 $2.3753
$2.3753 / $2.4369 Buy Now
STMicroelectronics 650 V power Schottky silicon carbide diode COO: Singapore RoHS: Compliant Min Qty: 1 0
  • 1 $6.0600
  • 10 $3.3700
  • 100 $2.9300
$2.9300 / $6.0600 Buy Now
Future Electronics STPSC20065 Series 650 V 20 A Flange Mount Schottky SiC Diode - DO-247 RoHS: Compliant pbFree: Yes Min Qty: 600 Package Multiple: 50 Lead time: 25 Weeks Container: Tube 0
Tube
  • 50 $2.4500
  • 150 $2.4200
  • 200 $2.4100
  • 500 $2.3800
  • 750 $2.3500
$2.3500 / $2.4500 Buy Now
DISTI # 87623379
Verical Diode Schottky SiC 650V 20A 2-Pin(2+Tab) DO-247 Tube RoHS: Exempt Min Qty: 600 Package Multiple: 600 Date Code: 2414 Americas - 600
  • 600 $2.4361
  • 1,020 $2.3745
$2.3745 / $2.4361 Buy Now
DISTI # E02:0323_10179743
Arrow Electronics Diode Schottky SiC 650V 20A 2-Pin(2+Tab) DO-247 Tube COO: China RoHS: Exempt Min Qty: 600 Package Multiple: 30 Lead time: 25 Weeks Date Code: 2414 Europe - 600
  • 600 $2.4369
  • 1,020 $2.3753
$2.3753 / $2.4369 Buy Now
DISTI # 87623379
Verical Diode Schottky SiC 650V 20A 2-Pin(2+Tab) DO-247 Tube COO: China RoHS: Exempt Min Qty: 600 Package Multiple: 600 Date Code: 2414 Americas - 600
  • 600 $2.4361
  • 1,020 $2.3745
$2.3745 / $2.4361 Buy Now
DISTI # STPSC20065W
TME Diode: Schottky rectifying, SiC, THT, 650V, 20A, DO247, Ufmax: 1.65V Min Qty: 1 0
  • 1 $8.5900
  • 5 $7.7300
  • 30 $6.8300
  • 150 $6.1400
  • 600 $5.9200
$5.9200 / $8.5900 RFQ
DISTI # E02:0323_10179743
Arrow Electronics Diode Schottky SiC 650V 20A 2-Pin(2+Tab) DO-247 Tube COO: China RoHS: Exempt Min Qty: 600 Package Multiple: 30 Lead time: 25 Weeks Date Code: 2414 Europe - 600
  • 600 $2.4369
  • 1,020 $2.3753
$2.3753 / $2.4369 Buy Now
DISTI # 87623379
Verical Diode Schottky SiC 650V 20A 2-Pin(2+Tab) DO-247 Tube COO: China RoHS: Exempt Min Qty: 600 Package Multiple: 600 Date Code: 2414 Americas - 600
  • 600 $2.4361
  • 1,020 $2.3745
$2.3745 / $2.4361 Buy Now
DISTI # STPSC20065W
Avnet Silica (Alt: STPSC20065W) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 17 Weeks, 0 Days Silica - 600
Buy Now
DISTI # STPSC20065W
EBV Elektronik (Alt: STPSC20065W) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 26 Weeks, 0 Days EBV - 0
Buy Now

US Tariff Estimator: STPSC20065W by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STPSC20065W
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STPSC20065W

STPSC20065W CAD Models

  • Part Symbol

    schematic symbol

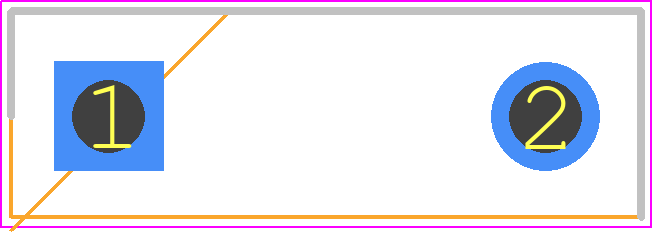

  • Footprint

    pcb footprint

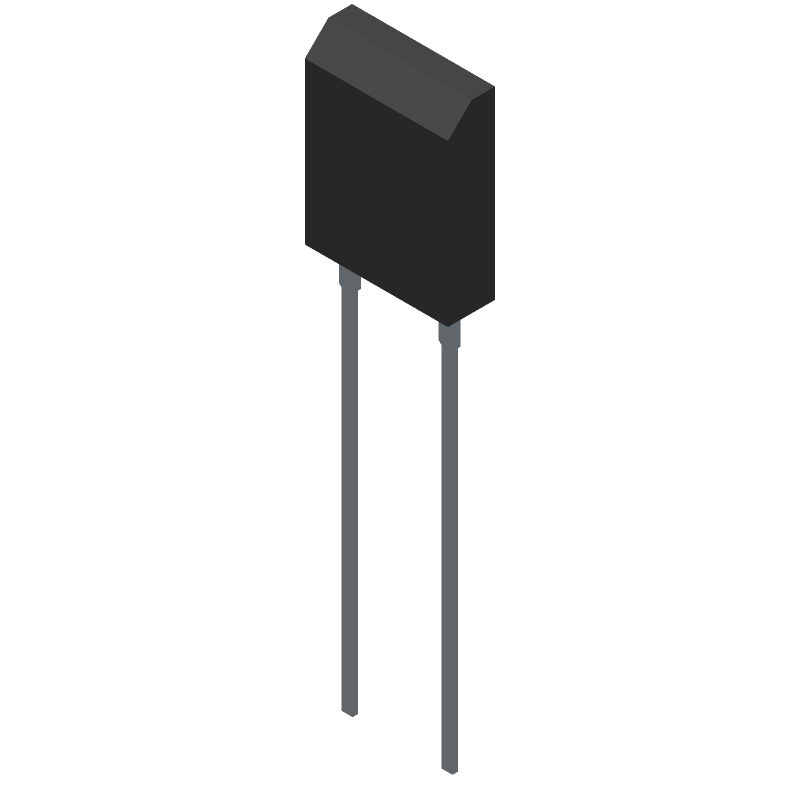

  • 3D Model
