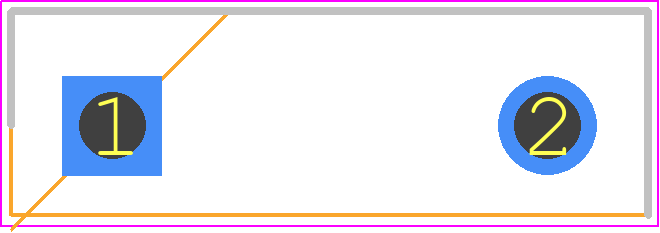

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for STPSC40G12WL by STMicroelectronics
Results Overview of STPSC40G12WL by STMicroelectronics
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Not Available)
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
STPSC40G12WL Information
STPSC40G12WL by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STPSC40G12WL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78AK8731
|
Newark | Sic Schottky Diode, 1.2Kv, 40A, Do-247Ll, Product Range:-, Diode Configuration:Single, Repetitive Peak Reverse Voltage:1.2Kv, Average Forward Current:40A, Total Capacitive Charge:202Nc, Diode Case Style:Do-247Ll, No. Of Pins:2 Pin Rohs Compliant: Yes |Stmicroelectronics STPSC40G12WL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 172 |
|
$18.3300 / $20.5200 | Buy Now |
|
DISTI #
497-STPSC40G12WL-ND
|
DigiKey | 1200 V, 20 A HIGH SURGE SILICON Min Qty: 1 Lead time: 25 Weeks Container: Tube |
190 In Stock |
|
$11.4642 / $14.2500 | Buy Now |
|
DISTI #
STPSC40G12WL
|
Avnet Americas | - Rail/Tube (Alt: STPSC40G12WL) COO: China RoHS: Not Compliant Min Qty: 600 Package Multiple: 600 Lead time: 25 Weeks, 0 Days Container: Tube | 0 |
|
$7.6611 / $8.3893 | Buy Now |
|
DISTI #
STPSC40G12WL
|
Avnet Americas | - Rail/Tube (Alt: STPSC40G12WL) COO: China RoHS: Not Compliant Min Qty: 600 Package Multiple: 600 Lead time: 25 Weeks, 0 Days Container: Tube | 0 |
|
$7.6611 / $8.3893 | Buy Now |
|
DISTI #
78AK8731
|
Avnet Americas | (Alt: 78AK8731) COO: China RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 | 0 |
|
$18.6700 / $20.8800 | Buy Now |
|
DISTI #
78AK8731
|
Avnet Americas | (Alt: 78AK8731) COO: China RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 | 0 |
|
$18.6700 / $20.8800 | Buy Now |
|
DISTI #
511-STPSC40G12WL
|
Mouser Electronics | SiC Schottky Diodes 1200 V, 40 A High surge Silicon Carbide Power Schottky Diode RoHS: Compliant | 599 |
|
$11.1900 / $14.1100 | Buy Now |
|
|
STMicroelectronics | 1200 V, 40 A High surge Silicon Carbide Power Schottky Diode COO: Italy RoHS: Compliant Min Qty: 1 | 599 |
|
$10.9700 / $13.8300 | Buy Now |
|
DISTI #
STPSC40G12WL
|
Avnet Silica | (Alt: STPSC40G12WL) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
STPSC40G12WL
|
EBV Elektronik | (Alt: STPSC40G12WL) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 26 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for STPSC40G12WL
STPSC40G12WL CAD Models
STPSC40G12WL Part Data Attributes
|
|
STPSC40G12WL
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STPSC40G12WL
STMicroelectronics
Rectifier Diode, Schottky, 1 Phase, 1 Element, 40A, 1200V V(RRM), Silicon Carbide, DO-247
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Do-247ll, 2 Pin | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 25 Weeks | |
| Application | High Voltage Power | |
| Case Connection | Cathode | |
| Configuration | Single | |
| Diode Element Material | Silicon Carbide | |
| Diode Type | Rectifier Diode | |
| Forward Voltage-Max (VF) | 1.5 V | |
| JEDEC-95 Code | DO-247 | |
| JESD-30 Code | R-PSFM-T2 | |
| Non-rep Pk Forward Current-Max | 280 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 40 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| Rep Pk Reverse Voltage-Max | 1200 V | |
| Reverse Current-Max | 300 µA | |
| Reverse Test Voltage | 1200 V | |
| Surface Mount | No | |
| Technology | Schottky | |
| Terminal Form | Through-Hole | |
| Terminal Position | Single |
STPSC40G12WL Frequently Asked Questions (FAQ)
-
STMicroelectronics provides a recommended layout in the application note AN5156, which includes guidelines for thermal management, signal routing, and decoupling.
-
To optimize thermal performance, ensure good thermal conduction between the device and the PCB, use thermal vias, and consider using a heat sink or a thermal interface material (TIM).
-
The maximum allowed voltage on the VCC pin is 3.6V, as specified in the datasheet. Exceeding this voltage may damage the device.
-
The STPSC40G12WL is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. Consult the datasheet and application notes for more information.
-
Start by verifying the power supply, clock signals, and data signals. Check the device's operating conditions, and consult the datasheet and application notes for troubleshooting guidelines.
