Diodes / Rectifier Diodes / STPST80H100L2Y
Datasheets
STPST80H100L2Y by: STMicroelectronics

Rectifier Diode, Schottky, 1 Phase, 1 Element, 80A, 100V V(RRM), Silicon

Part Details for STPST80H100L2Y by STMicroelectronics

Results Overview of STPST80H100L2Y by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

STPST80H100L2Y Information

STPST80H100L2Y by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for STPST80H100L2Y

Part # Distributor Description Stock Price Buy
DISTI # 44AM8293
Newark Schottky Rectifier, 100V, 80A, Hu3Pak |Stmicroelectronics STPST80H100L2Y RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 281
  • 1 $5.6900
  • 10 $4.5500
  • 25 $4.2600
  • 50 $3.9700
  • 100 $3.6800
  • 250 $3.5400
  • 500 $3.4100
  • 1,200 $3.2700
$3.2700 / $5.6900 Buy Now
DISTI # 497-STPST80H100L2YCT-ND
DigiKey AUTOMOTIVE 100 V, 80 A TRENCH SC Min Qty: 1 Lead time: 99 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) 538
In Stock
  • 1 $6.3800
  • 10 $4.2840
  • 100 $3.1038
  • 600 $2.5484
  • 1,200 $2.5358
$2.5358 / $6.3800 Buy Now
DISTI # STPST80H100L2Y
Avnet Americas RECTIFIER - Trays (Alt: STPST80H100L2Y) COO: Malaysia RoHS: Not Compliant Min Qty: 600 Package Multiple: 600 Container: Tray 0
  • 600 $2.8980
  • 1,200 $2.7414
  • 2,400 $2.6692
  • 4,800 $2.6008
  • 9,600 $2.5358
$2.5358 / $2.8980 Buy Now
DISTI # STPST80H100L2Y
Avnet Americas RECTIFIER - Trays (Alt: STPST80H100L2Y) COO: Malaysia RoHS: Not Compliant Min Qty: 600 Package Multiple: 600 Container: Tray 0
  • 600 $2.8980
  • 1,200 $2.7414
  • 2,400 $2.6692
  • 4,800 $2.6008
  • 9,600 $2.5358
$2.5358 / $2.8980 Buy Now
DISTI # 511-STPST80H100L2Y
Mouser Electronics Schottky Diodes & Rectifiers Automotive 100 V, 80 A Trench Schottky Diode RoHS: Compliant 2404
  • 1 $5.6900
  • 10 $4.5500
  • 100 $3.6800
  • 600 $3.2700
  • 1,200 $2.8000
$2.8000 / $5.6900 Buy Now
STMicroelectronics Automotive 100 V, 80 A Trench Schottky Diode COO: Japan RoHS: Compliant Min Qty: 1 2404
  • 1 $5.5800
  • 10 $4.4600
  • 100 $3.6100
$3.6100 / $5.5800 Buy Now

US Tariff Estimator: STPST80H100L2Y by STMicroelectronics

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

STPST80H100L2Y
STMicroelectronics
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for STPST80H100L2Y

STPST80H100L2Y CAD Models

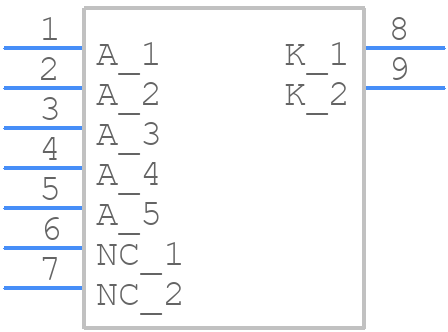

  • Part Symbol

    schematic symbol

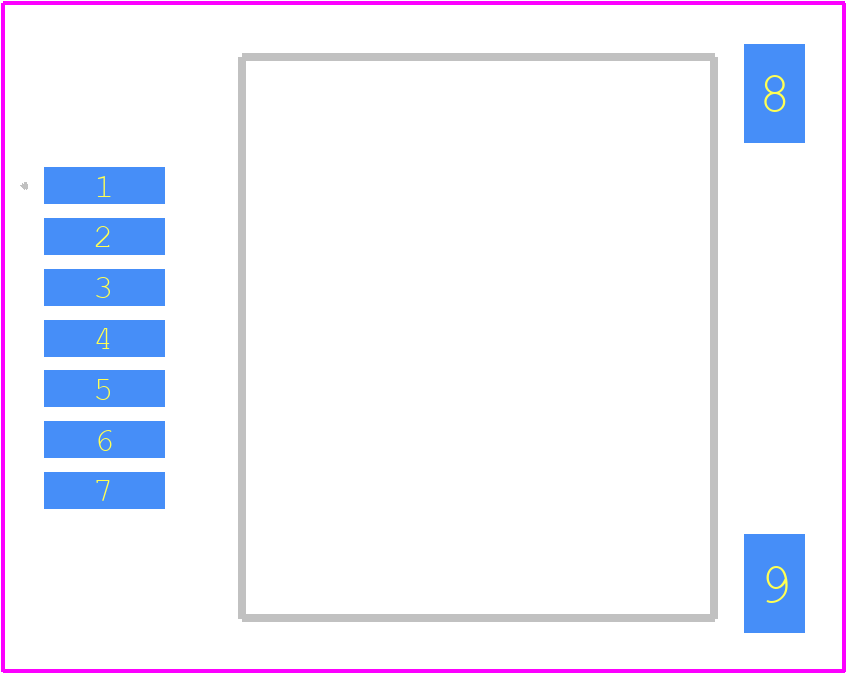

  • Footprint

    pcb footprint

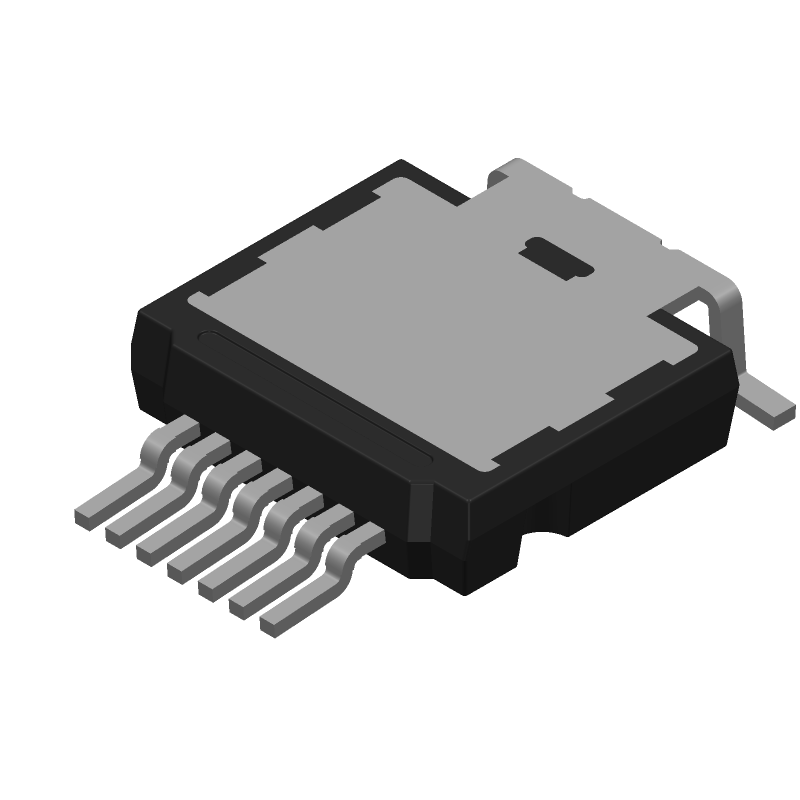

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

STPST80H100L2Y Part Data Attributes

Parametric Data
STPST80H100L2Y STMicroelectronics
Buy Now Datasheet
Compare Parts:
STPST80H100L2Y STMicroelectronics Rectifier Diode, Schottky, 1 Phase, 1 Element, 80A, 100V V(RRM), Silicon
Part Life Cycle Code Active
Reach Compliance Code Unknown
ECCN Code EAR99
HTS Code 8541.10.00.80
Additional Feature Free Wheeling Diode
Application Efficiency
Case Connection Cathode
Configuration Single
Diode Element Material Silicon
Diode Type Rectifier Diode
Forward Voltage-Max (VF) 0.81 V
JESD-30 Code R-PSSO-G7
Non-rep Pk Forward Current-Max 900 A
Number of Elements 1
Number of Phases 1
Number of Terminals 7
Operating Temperature-Max 175 °C
Operating Temperature-Min -40 °C
Output Current-Max 80 A
Package Body Material Plastic/Epoxy
Package Shape Rectangular
Package Style Small Outline
Reference Standard Aec-Q101
Rep Pk Reverse Voltage-Max 100 V
Reverse Current-Max 100 µA
Reverse Test Voltage 100 V
Surface Mount Yes
Technology Schottky
Terminal Form Gull Wing
Terminal Position Single
equivalents icon

STPST80H100L2Y Frequently Asked Questions (FAQ)

  • STMicroelectronics recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.

  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power handling at high temperatures.

  • The maximum allowed voltage on the gate driver input is 20V, as specified in the datasheet. Exceeding this voltage may damage the device.

  • Yes, the STPST80H100L2Y is suitable for high-frequency switching applications up to 100 kHz. However, ensure proper layout and decoupling to minimize EMI and ringing.

  • Use a suitable overvoltage protection circuit, such as a TVS diode or a zener diode, and consider adding overcurrent protection using a fuse or a current sense resistor.
