STTH15L06D Information
STTH15L06D by STMicroelectronics is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for STTH15L06D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45AC7744
|
Newark | Rectifier, Single, 600V, 15A, To-220Ac, Repetitive Reverse Voltage Vrrm Max:600V, Forward Current If(Av):15A, Diode Configuration:Single, Forward Voltage Vf Max:1.55V, Reverse Recovery Time Trr Max:85Ns, Forward Surge Current Ifsm Rohs Compliant: Yes |Stmicroelectronics STTH15L06D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 568 |
|
$0.8500 / $2.1100 | Buy Now |
|
DISTI #
497-3821-5-ND
|
DigiKey | DIODE STANDARD 600V 15A TO220AC Min Qty: 1 Lead time: 15 Weeks Container: Tube |
890 In Stock |
|
$0.5612 / $1.8600 | Buy Now |
|
DISTI #
STTH15L06D
|
Avnet Americas | Diode Switching 600V 20A 2-Pin(2+Tab) TO-220AC Tube - Rail/Tube (Alt: STTH15L06D) COO: China RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Tube | 0 |
|
$0.5435 / $0.6211 | Buy Now |
|
DISTI #
511-STTH15L06D
|
Mouser Electronics | Rectifiers RECTIFIER RoHS: Compliant | 1541 |
|
$0.5610 / $1.8500 | Buy Now |
|
DISTI #
70014098
|
RS | DIODE, RECTIFIER, ULTRAFAST, VR 600V, IF 15A, PKG TO-220AC, VF 0.85V, TRR 55NS, CS 130A Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$0.5300 / $0.6300 | RFQ |
|
|
STMicroelectronics | 600 V, 15 A Low Drop Ultrafast Diode COO: France RoHS: Compliant Min Qty: 1 | 1541 |
|
$0.5500 / $1.8000 | Buy Now |
|
|
Future Electronics | STTH15L06 Series 600 V 15 A Turbo 2 Ultrafast High Voltage Rectifier - TO-220AC RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 50 Lead time: 15 Weeks Container: Tube | 0Tube |
|
$0.5500 / $0.5650 | Buy Now |
|
|
Bristol Electronics | 7 |
|
RFQ | ||
|
|
Quest Components | RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 20A, 600V V(RRM), SILICON, TO-220AC | 1179 |
|
$0.8374 / $2.3925 | Buy Now |
|
|
Quest Components | RECTIFIER DIODE, 1 PHASE, 1 ELEMENT, 20A, 600V V(RRM), SILICON, TO-220AC | 20 |
|
$1.1921 / $1.2958 | Buy Now |
US Tariff Estimator: STTH15L06D by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for STTH15L06D
STTH15L06D CAD Models
-
Part Symbol
-

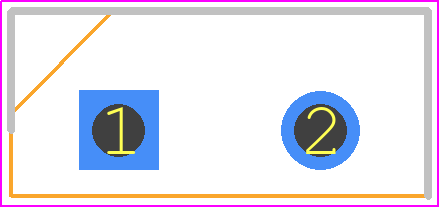

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STTH15L06D Part Data Attributes
|
|
STTH15L06D
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STTH15L06D
STMicroelectronics
Rectifier Diode, 1 Phase, 1 Element, 20A, 600V V(RRM), Silicon, TO-220AC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TO-220AC | |
| Package Description | Plastic Package-2 | |
| Pin Count | 3 | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 15 Weeks | |
| Application | High Voltage Ultra Fast Recovery | |
| Configuration | Single | |
| Diode Element Material | Silicon | |
| Diode Type | Rectifier Diode | |
| Forward Voltage-Max (VF) | 1.2 V | |
| JEDEC-95 Code | TO-220AC | |
| JESD-30 Code | R-PSFM-T2 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 130 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Output Current-Max | 20 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Recovery Time-Max | 0.085 µS | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Through-Hole | |
| Terminal Position | Single |
STTH15L06D Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the STTH15L06D is -40°C to 150°C.
-
To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive interface material, and minimizing thermal resistance.
-
To minimize EMI, it's recommended to use a multi-layer PCB with a solid ground plane, keep the layout compact, and use shielding or filtering components as needed.
-
Yes, the STTH15L06D is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching characteristics, such as rise and fall times, and ensure proper PCB layout and decoupling.
-
To protect the device, use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, such as zener diodes or transient voltage suppressors, and ensure that the device is operated within its recommended operating conditions.
