T495X156K050ATE200 by: KEMET Corporation

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 15uF, Surface Mount, 2917, CHIP

Part Details for T495X156K050ATE200 by KEMET Corporation

Results Overview of T495X156K050ATE200 by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

T495X156K050ATE200 Information

T495X156K050ATE200 by KEMET Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for T495X156K050ATE200

Part # Distributor Description Stock Price Buy
DISTI # 50M5256
Newark Tantalum Capacitor, 15Uf 50V 10%, Capacitance:15Μf, Voltage(Dc):50V, Capacitor Case/Package:2917 [7343 Metric], Capacitance Tolerance:± 10%, Esr:0.2Ohm, Manufacturer Size Code:X, Failure Rate:-, Ripple Current:908Ma Rohs Compliant: Yes |Kemet T495X156K050ATE200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 768
  • 1 $7.6300
  • 10 $6.4100
  • 25 $6.1400
$6.1400 / $7.6300 Buy Now
DISTI # 42AC0264
Newark Cap, 15Μf, 50V, 10% Rohs Compliant: Yes |Kemet T495X156K050ATE200 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Tape & Reel 0
  • 500 $5.1700
  • 1,000 $5.1300
  • 2,000 $5.0800
  • 3,000 $5.0300
$5.0300 / $5.1700 Buy Now
DISTI # 399-10306-1-ND
DigiKey CAP TANT 15UF 10% 50V 2917 Min Qty: 1 Lead time: 19 Weeks Container: Cut Tape (CT), Tape & Reel (TR), Digi-Reel® 1714
In Stock
  • 1 $5.8800
  • 10 $4.3030
  • 50 $3.6742
  • 100 $3.4796
  • 500 $3.1503
  • 1,000 $3.0482
  • 1,500 $2.9971
  • 2,500 $2.9404
$2.9404 / $5.8800 Buy Now
DISTI # T495X156K050ATE200
Avnet Americas - Tape and Reel (Alt: T495X156K050ATE200) COO: Mexico RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 15 Weeks, 0 Days Container: Tape & Reel 0
  • 500 $2.8805
  • 1,000 $2.7869
  • 2,000 $2.7005
  • 4,000 $2.6730
  • 8,000 $2.6592
$2.6592 / $2.8805 Buy Now
DISTI # 80-T495X156K50ATE200
Mouser Electronics Tantalum Capacitors - Solid SMD 50V 15uF 2917 10% ESR=200mOhms RoHS: Compliant 2868
  • 1 $5.8800
  • 10 $3.1900
  • 100 $3.1000
  • 500 $2.9400
$2.9400 / $5.8800 Buy Now
DISTI # V72:2272_09049225
Arrow Electronics Cap Tant Solid 15uF 50V X CASE 10% (7.3 X 4.3 X 4mm) Inward L SMD 7343-43 0.2 Ohm 125°C T/R COO: Mexico RoHS: Compliant Min Qty: 36 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2130 Container: Cut Strips Americas - 95
  • 36 $2.7700
$2.7700 Buy Now
DISTI # 60940447
Verical Cap Tant Solid 15uF 50V X CASE 10% (7.3 X 4.3 X 4mm) Inward L SMD 7343-43 0.2 Ohm 125°C T/R RoHS: Compliant Min Qty: 36 Package Multiple: 1 Date Code: 2130 Americas - 95
  • 36 $2.7700
$2.7700 Buy Now
Bristol Electronics   Min Qty: 7 14
  • 7 $0.7313
$0.7313 Buy Now
Quest Components TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 50V, 10% +TOL, 10% -TOL, 15UF, SURFACE MOUNT, 2917 500
  • 1 $7.5000
  • 54 $3.2500
  • 155 $3.0000
$3.0000 / $7.5000 Buy Now
Quest Components TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 50V, 10% +TOL, 10% -TOL, 15UF, SURFACE MOUNT, 2917 11
  • 1 $0.9750
  • 6 $0.7800
$0.7800 / $0.9750 Buy Now
DISTI # T495X156K050ATE200.
TTI Tantalum Capacitors - Solid SMD 50volts 15uF 10% ESR=200 RoHS: Compliant pbFree: Pb-Free Min Qty: 10 Package Multiple: 10 Container: Cut Tape Americas - 90
In Stock
  • 10 $4.4500
$4.4500 Buy Now
DISTI # T495X156K050ATE200
TTI Tantalum Capacitors - Solid SMD 50V 15uF 2917 10% ESR=200mOhms RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel Americas - 0
  • 500 $2.9400
  • 1,000 $2.9000
$2.9000 / $2.9400 Buy Now
DISTI # V72:2272_09049225
Arrow Electronics Cap Tant Solid 15uF 50V X CASE 10% (7.3 X 4.3 X 4mm) Inward L SMD 7343-43 0.2 Ohm 125°C T/R COO: Mexico RoHS: Compliant Min Qty: 36 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2130 Container: Cut Strips Americas - 95
  • 36 $2.7700
$2.7700 Buy Now
DISTI # 60940447
Verical Cap Tant Solid 15uF 50V X CASE 10% (7.3 X 4.3 X 4mm) Inward L SMD 7343-43 0.2 Ohm 125°C T/R COO: Mexico RoHS: Compliant Min Qty: 36 Package Multiple: 1 Date Code: 2130 Americas - 95
  • 36 $2.7700
$2.7700 Buy Now
DISTI # V72:2272_09049225
Arrow Electronics Cap Tant Solid 15uF 50V X CASE 10% (7.3 X 4.3 X 4mm) Inward L SMD 7343-43 0.2 Ohm 125°C T/R COO: Mexico RoHS: Compliant Min Qty: 36 Package Multiple: 1 Lead time: 15 Weeks Date Code: 2130 Container: Cut Strips Americas - 95
  • 36 $2.7700
$2.7700 Buy Now
DISTI # 60940447
Verical Cap Tant Solid 15uF 50V X CASE 10% (7.3 X 4.3 X 4mm) Inward L SMD 7343-43 0.2 Ohm 125°C T/R COO: Mexico RoHS: Compliant Min Qty: 36 Package Multiple: 1 Date Code: 2130 Americas - 95
  • 36 $2.7700
$2.7700 Buy Now
DISTI # T495X156K050ATE200
Avnet Abacus - Tape and Reel (Alt: T495X156K050ATE200) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 17 Weeks, 0 Days Container: Tape & Reel Abacus - 0
Buy Now
Chip Stock CapTantSolid15uF50VXCASE10%(7.3X4.3X4mm)SMD7343-430.2Ohm125CT/R 1125
RFQ

US Tariff Estimator: T495X156K050ATE200 by KEMET Corporation

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

T495X156K050ATE200
KEMET Corporation
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for T495X156K050ATE200

T495X156K050ATE200 CAD Models

  • Part Symbol

    schematic symbol

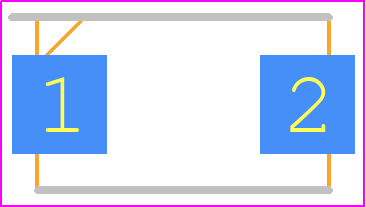

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

T495X156K050ATE200 Part Data Attributes

Parametric Data
T495X156K050ATE200 KEMET Corporation
Buy Now Datasheet
Compare Parts:
T495X156K050ATE200 KEMET Corporation Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 15uF, Surface Mount, 2917, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 13 Weeks
Additional Feature Ripple Current And Esr Is Measured At 100khz
Capacitance 15 µF
Capacitor Type Tantalum Capacitor
Dielectric Material Tantalum (Dry/Solid)
ESR 200 MΩ
Height 4 Mm
JESD-609 Code e3
Leakage Current 0.0075 Ma
Length 7.3 Mm
Mounting Feature Surface Mount
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method Tr, Embossed Plastic, 7 Inch
Polarity Polarized
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Ripple Current 145.2 Ma
Size Code 2917
Surface Mount Yes
Tan Delta 0.06
Terminal Finish Matte Tin Over Nickel
Terminal Shape J Bend
Width 4.3 Mm

Alternate Parts for T495X156K050ATE200

This table gives cross-reference parts and alternative options found for T495X156K050ATE200. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of T495X156K050ATE200, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T493X156K050CB6110WAFL KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495X156K050ATE200 vs T493X156K050CB6110WAFL
T493X156K050AB6210WAFL KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495X156K050ATE200 vs T493X156K050AB6210WAFL
T495X156K050ANA3007280 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid) T495X156K050ATE200 vs T495X156K050ANA3007280
T493X156K050CM6110 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 15uF, Surface Mount, 2917, CHIP T495X156K050ATE200 vs T493X156K050CM6110
T493X156K050AT6413 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495X156K050ATE200 vs T493X156K050AT6413
T493X156K050CB63107280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 15uF, Surface Mount, 2917, CHIP T495X156K050ATE200 vs T493X156K050CB63107280
T493X156K050BT64107610 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495X156K050ATE200 vs T493X156K050BT64107610
T491X156K050AM KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 15uF, Surface Mount, 2917, CHIP T495X156K050ATE200 vs T491X156K050AM
T493X156K050CC6110 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 15uF, 2917 T495X156K050ATE200 vs T493X156K050CC6110
T495X156K050ANE2507280 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), T495X156K050ATE200 vs T495X156K050ANE2507280
equivalents icon

T495X156K050ATE200 Related Parts

T495X156K050ATE200 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the T495X156K050ATE200 is 260°C for 10 seconds or less, with a peak temperature of 240°C.

  • Yes, the T495X156K050ATE200 is a high-reliability capacitor that meets the requirements of various industries, including aerospace, defense, and medical devices.

  • Yes, the T495X156K050ATE200 is designed to withstand high-vibration environments and meets the requirements of various vibration tests, including IEC 60068-2-6.

  • The ESR of the T495X156K050ATE200 is typically around 50 mohms, but this value can vary depending on the frequency and operating conditions.

  • Yes, the T495X156K050ATE200 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
