Part Details for TAS5709APHPR by Texas Instruments
Results Overview of TAS5709APHPR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for TAS5709APHPR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-25493-2-ND
|
DigiKey | IC AUDIO AMP D 48-HTQFP Min Qty: 1000 Container: Tape & Reel |
0 Tape & Reel |
|
$5.4762 | Buy Now |
|
DISTI #
595-TAS5709APHPR
|
Mouser Electronics | Audio Amplifiers 20W Stereo I2S Aud A mp A 595-TAS5709APH A 595-TAS5709APHP RoHS: Compliant | 942 |
|
$5.1100 / $7.5800 | Buy Now |
|
DISTI #
86029138
|
Verical | Audio Amp Speaker 2-CH Stereo 20.6W Class-D 48-Pin HTQFP EP T/R RoHS: Compliant Min Qty: 64 Package Multiple: 1 Date Code: 1301 | Americas - 69000 |
|
$4.6875 / $5.8625 | Buy Now |
|
DISTI #
86031005
|
Verical | Audio Amp Speaker 2-CH Stereo 20.6W Class-D 48-Pin HTQFP EP T/R RoHS: Compliant Min Qty: 64 Package Multiple: 1 | Americas - 1000 |
|
$4.6875 / $5.8625 | Buy Now |
|
|
Rochester Electronics | Audio Amplifier Class D 4 Half Bridge 20.6W 48-QFP T/R RoHS: Compliant Status: Active Min Qty: 1 | 70000 |
|
$3.7500 / $4.6900 | Buy Now |
US Tariff Estimator: TAS5709APHPR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

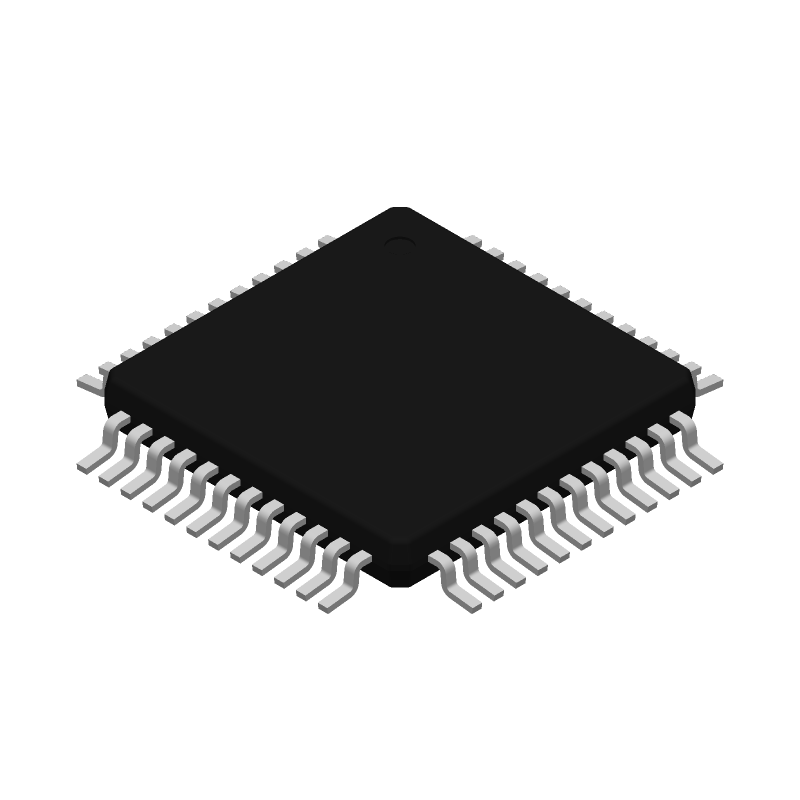

TAS5709APHPR CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TAS5709APHPR Part Data Attributes
|
|
TAS5709APHPR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TAS5709APHPR
Texas Instruments
Audio Amplifier, 20W, 2 Channel(s), 1 Func, PQFP48
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFP | |
| Pin Count | 48 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Bandwidth-Nom | 20 Khz | |
| Consumer IC Type | Audio Amplifier | |
| Harmonic Distortion | 10% | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e4 | |
| Length | 7 Mm | |
| Moisture Sensitivity Level | 3 | |
| Noise Figure-Nom | 106 Db | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Output Power-Nom | 20 W | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HTFQFP | |
| Package Equivalence Code | TQFP48,.35SQ | |
| Package Shape | Square | |
| Package Style | Flatpack, Heat Sink/Slug, Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max | 83 Ma | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Temperature Grade | Other | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 Mm |
