Part Details for TAS5727PHP by Texas Instruments
Results Overview of TAS5727PHP by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (10 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TAS5727PHPR | Texas Instruments | 25-W Digital Audio Power Amplifier with EQ and 2-Band DRC 48-HTQFP 0 to 85 | |
| TAS5727PHP | Texas Instruments | 25-W Digital Audio Power Amplifier with EQ and 2-Band DRC 48-HTQFP 0 to 85 |
Price & Stock for TAS5727PHP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-32736-ND
|
DigiKey | IC AUDIO AMP D 48-HTQFP Min Qty: 250 Container: Tray |
0 Tray |
|
$5.8859 | Buy Now |
|
DISTI #
595-TAS5727PHP
|
Mouser Electronics | Audio Amplifiers 25W Digital Audio Po wer Amp A 595-TAS57 A 595-TAS5727PHPR RoHS: Compliant | 0 |
|
$5.8900 | Order Now |
|
|
Vyrian | Audio Amplifier, 25W, 2 Channel(s), 1 Func, PQFP48 | 8683 |
|
RFQ |
US Tariff Estimator: TAS5727PHP by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

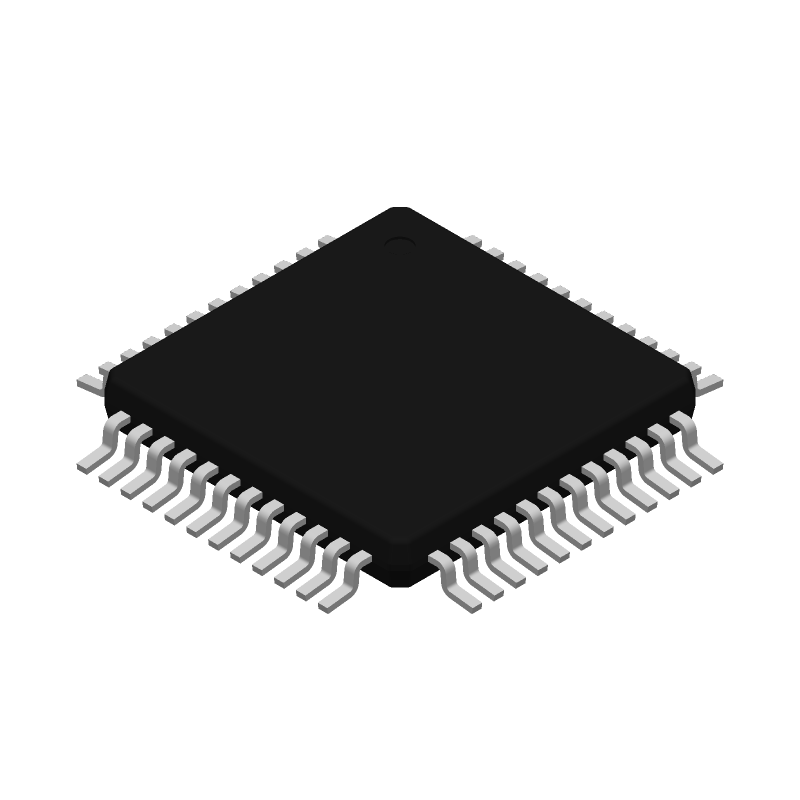

TAS5727PHP CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TAS5727PHP Part Data Attributes
|
|
TAS5727PHP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TAS5727PHP
Texas Instruments
Audio Amplifier, 25W, 2 Channel(s), 1 Func, PQFP48
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFP | |
| Pin Count | 48 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Bandwidth-Nom | 20 Khz | |
| Consumer IC Type | Audio Amplifier | |
| Harmonic Distortion | 10% | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e4 | |
| Length | 7 Mm | |
| Moisture Sensitivity Level | 3 | |
| Noise Figure-Nom | 106 Db | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Output Power-Nom | 25 W | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HTFQFP | |
| Package Equivalence Code | TQFP48,.35SQ | |
| Package Shape | Square | |
| Package Style | Flatpack, Heat Sink/Slug, Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max | 68 Ma | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Temperature Grade | Other | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 Mm |
