TC6502P085VCTTR Information
TC6502P085VCTTR by Microchip Technology Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for TC6502P085VCTTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TC6502P085VCTR-ND
|
DigiKey | THERMOSTAT 85DEGC ACT HI SOT23-5 Min Qty: 3000 Lead time: 6 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.7300 | Buy Now |
|
DISTI #
TC6502P085VCTTR
|
Microchip Technology Inc | Ultra Small Temp Switch with Pin-Selectable Hysteresis, SOT-23, Projected EOL: 2034-01-01 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tape & Reel | In Stock: 0 and Alternates Available |
|
$0.7000 / $0.9700 | Buy Now |
|
DISTI #
70048271
|
RS | IC, TEMP SENSOR, OUTPUT, LOGIC, -55 TO 135 DEGREES C, SOT23-5 Min Qty: 3000 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$0.8200 / $0.9700 | RFQ |
|
|
Onlinecomponents.com | COO: Thailand RoHS: Compliant | 0 |
|
$0.6580 / $1.3780 | Buy Now |
|
|
Bristol Electronics | Min Qty: 4 | 3668 |
|
$0.5211 / $1.5792 | Buy Now |
|
|
Quest Components | 2934 |
|
$0.5790 / $2.1056 | Buy Now | |
|
|
Quest Components | 2934 |
|
$0.8400 / $2.2400 | Buy Now | |
|
DISTI #
TC6502P085VCT
|
TME | IC: temperature sensor, logic output,RTD, -55÷135°C, SOT23-5, SMD Min Qty: 1 | 0 |
|
$0.7600 / $0.9500 | RFQ |
|
|
NAC | Ultra Small Temp Switch with Pin-Selectable Hysteresis. - THERMAL MANAGEMENT PRODUCTS Product Line RoHS: Compliant Package Multiple: 1 | 0 |
|
$0.7600 / $0.9400 | Buy Now |
|
DISTI #
TC6502P085VCTTR
|
Avnet Silica | (Alt: TC6502P085VCTTR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
US Tariff Estimator: TC6502P085VCTTR by Microchip Technology Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TC6502P085VCTTR
TC6502P085VCTTR CAD Models
-

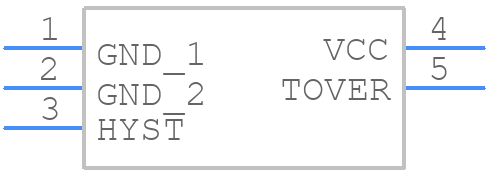

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TC6502P085VCTTR Part Data Attributes
|
|
TC6502P085VCTTR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
TC6502P085VCTTR
Microchip Technology Inc
Ultra Small Temp Switch with Pin-Selectable Hysteresis
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Sot-23, 5 Pin | |
| Pin Count | 5 | |
| Manufacturer Package Code | SOT-23-5 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Accuracy-Max (Cel) | 6 Cel | |
| Body Breadth | 1.63 Mm | |
| Body Height | 1.1 Mm | |
| Body Length or Diameter | 2.95 Mm | |
| Housing | Plastic | |
| JESD-609 Code | e3 | |
| Mounting Feature | Surface Mount | |
| Number of Terminals | 5 | |
| Operating Current-Max | 0.04 Ma | |
| Operating Temperature-Max | 135 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Voltage-Max | 4 V | |
| Output Voltage-Min | 0.3 V | |
| Package Body Material | Plastic | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape/Style | Rectangular | |
| Screening Level | Ts 16949 | |
| Sensors/Transducers Type | Temperature Sensor,Switch/Digital Output,Single Trip Point | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | Solder |
