TCK-059 Information

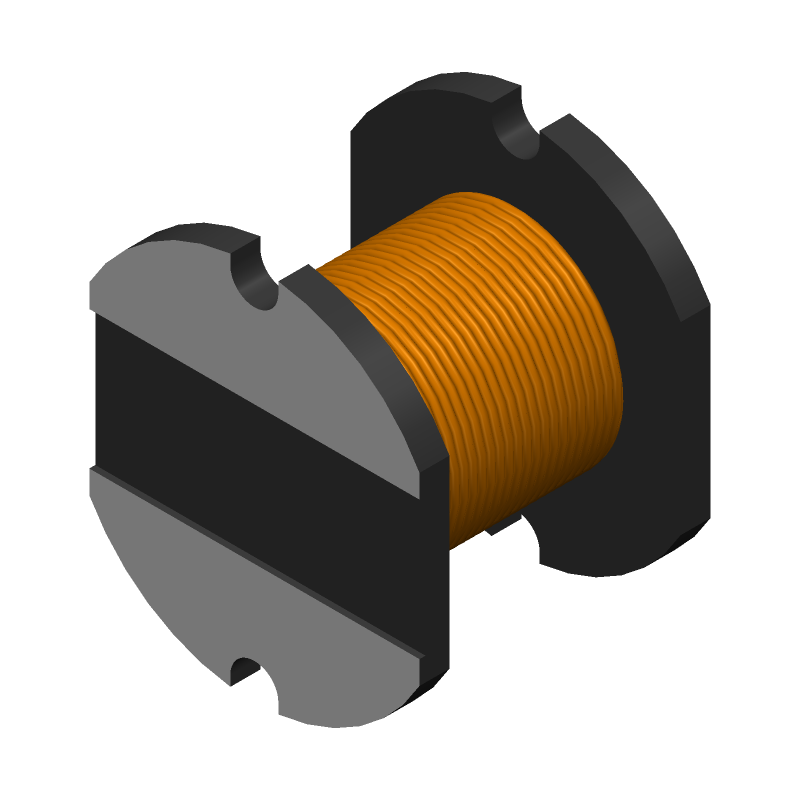

TCK-059 by Traco Power is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for TCK-059
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
90Y8641
|
Newark | Filter, Smd, Common Mode, 2.2Uh, |Traco Power TCK-059 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 136 |
|
$2.6713 | Buy Now |
|
DISTI #
45Y1637
|
Newark | Filter, Smd, Common Mode, 2.2Uh, |Traco Power TCK-059 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.1665 | Buy Now |
|
DISTI #
93792797
|
Verical | Power Choke Wirewound 2.2uH 20% 1KHz 4.8A 0.025Ohm DCR RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2618 | Americas - 978 |
|
$1.9680 / $2.9080 | Buy Now |
|
DISTI #
88140457
|
Verical | Power Choke Wirewound 2.2uH 20% 1KHz 4.8A 0.025Ohm DCR RoHS: Compliant Min Qty: 25 Package Multiple: 1 | Americas - 42 |
|
$3.1473 | Buy Now |
|
DISTI #
495-TCK-059
|
Mouser Electronics | Power Inductors - SMD Filter Component RoHS: Compliant | 1226 |
|
$2.3200 / $2.9400 | Buy Now |
|
DISTI #
70421869
|
RS | COMMON MODE CHOKE, 0.0022MH,3.8A Min Qty: 10 Package Multiple: 1 Lead time: 19 Weeks, 0 Days Container: Bulk | 0 |
|
$2.4100 / $2.7400 | RFQ |
|
DISTI #
000000000005182116
|
Sager | Power Inductors - SMD Product Type: EMC Chokes, Package Style: N/A, Output Power (W): 2.2 H 20%, Input Voltage: N/A, Output 1 (Vdc): N/A, Output 2 (Vdc): N/A, Output 3 (Vdc): N/A Min Qty: 1 | 0 |
|
$2.0700 / $2.7000 | Buy Now |
|
DISTI #
TCK-059
|
TME | Inductor: wire, SMD, 2.2uH, R: 25mΩ, ±20%, 5.2x5.8x4.5mm, 3.8A Min Qty: 1 | 42 |
|
$2.0300 / $2.5700 | Buy Now |
US Tariff Estimator: TCK-059 by Traco Power
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
TCK-059 CAD Models
-
Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TCK-059 Part Data Attributes
|
|
TCK-059
Traco Power
Buy Now
Datasheet
|
Compare Parts:
TCK-059
Traco Power
General Purpose Inductor, 2.2uH, 20%, 1 Element, Yes, 2320
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Chip | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Case/Size Code | 2320 | |
| Construction | Rectangular | |
| DC Resistance | 0.025 Ω | |
| Inductance-Nom (L) | 2.2 µH | |
| Inductor Application | Filter Choke | |
| Inductor Type | General Purpose Inductor | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 4.5 Mm | |
| Package Length | 5.8 Mm | |
| Package Style | Smt | |
| Package Width | 5.2 Mm | |
| Rated Current-Max | 4.8 A | |
| Shape/Size Description | Rectangular Package | |
| Shielded | No | |
| Surface Mount | Yes | |
| Terminal Placement | Dual Ended | |
| Terminal Shape | One Surface | |
| Test Frequency | 0.001 Mhz | |
| Tolerance | 20% |
TCK-059 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the TCK-059 is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
-
To ensure reliability in high-vibration environments, it is recommended to use a secure mounting method, such as screwing or clipping, and to follow the manufacturer's guidelines for vibration testing.
-
Yes, the TCK-059 is designed to operate in humid environments, but it is recommended to follow the manufacturer's guidelines for humidity testing and to ensure proper sealing and conformal coating.
-
The recommended input voltage range for the TCK-059 is 36-72V DC, with a maximum input voltage of 80V DC for short-term transients.
-
To troubleshoot issues with the TCK-059, check the input voltage, output voltage, and output current, and ensure that the device is properly connected and configured. Consult the datasheet and manufacturer's application notes for troubleshooting guidelines.
