TCMV106M100R0050 by: Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 100V, 20% +Tol, 20% -Tol, 10uF, 2924

Part Details for TCMV106M100R0050 by Kyocera AVX Components

Results Overview of TCMV106M100R0050 by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TCMV106M100R0050 Information

TCMV106M100R0050 by Kyocera AVX Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for TCMV106M100R0050

Part # Distributor Description Stock Price Buy
DISTI # 478-9591-1-ND
DigiKey CAP TANT POLY 10UF 100V 2924 Min Qty: 1 Lead time: 21 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 523
In Stock
  • 1 $17.9300
  • 10 $14.1580
  • 50 $12.8520
  • 400 $11.7093
  • 800 $11.4429
$11.4429 / $17.9300 Buy Now
DISTI # TCMV106M100R0050
Avnet Americas Tantalum Polymer Capacitor, 10 uF, 100 V, ? 20%, V, 50 mohm, 2924 [7361-38 Metric] - Tape and Reel (Alt: TCMV106M100R0050) COO: Czechia RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 21 Weeks, 0 Days Container: Tape & Reel 1200
  • 400 $14.4238
  • 800 $14.0887
  • 1,600 $13.7688
  • 3,200 $13.4479
  • 6,400 $13.1773
$13.1773 / $14.4238 Buy Now
DISTI # 581-TCMV106M100R0050
Mouser Electronics Tantalum Capacitors - Polymer 100V 10uF 20% 2924 E SR=50 mOhm RoHS: Compliant 162
  • 1 $17.9300
  • 10 $12.8600
  • 400 $12.8500
$12.8500 / $17.9300 Buy Now
Future Electronics CAP TANT POLY 10UF 20% 100V 2924 RoHS: Compliant pbFree: Yes Min Qty: 400 Package Multiple: 400 Lead time: 21 Weeks Container: Reel 0
Reel
  • 400 $7.6400
$7.6400 Buy Now
DISTI # TCMV106M100R0050
TTI Tantalum Capacitors - Polymer 100V 10uF 20% 2924 E SR=50 mOhm RoHS: Compliant pbFree: Pb-Free Min Qty: 400 Package Multiple: 400 Container: Reel Americas - 1200
In Stock
  • 400 $14.2300
$14.2300 Buy Now
DISTI # TCMV106M100R0050
TME Capacitor: polymer, 10uF, 100VDC, V, 2924, SMD, ESR: 50mΩ, TCM, ±20% Min Qty: 400 0
  • 400 $10.6200
$10.6200 RFQ
DISTI # TCMV106M100R0050
Avnet Abacus Tantalum Polymer Capacitor 10 uF 100 V 20 V 50 mohm 2924 736138 Metric (Alt: TCMV106M100R0050) RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 22 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for TCMV106M100R0050

TCMV106M100R0050 CAD Models

  • Part Symbol

    schematic symbol

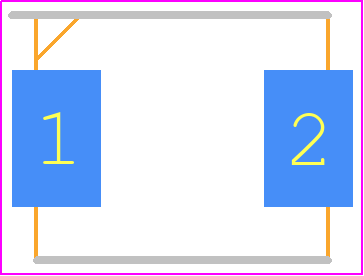

  • Footprint

    pcb footprint

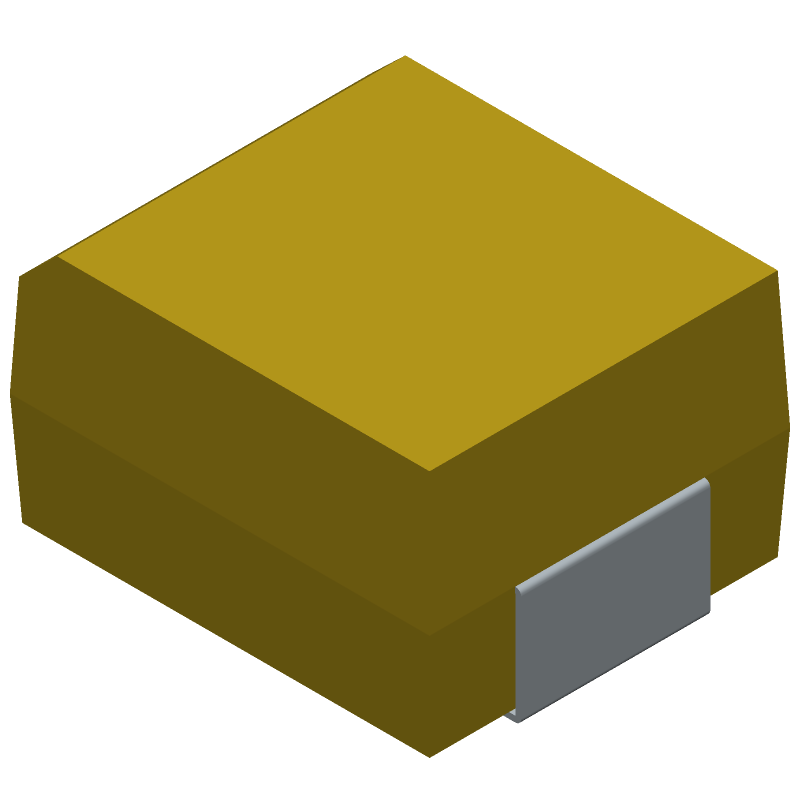

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TCMV106M100R0050 Part Data Attributes

Parametric Data
TCMV106M100R0050 Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
TCMV106M100R0050 Kyocera AVX Components Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 100V, 20% +Tol, 20% -Tol, 10uF, 2924
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
Factory Lead Time 21 Weeks
Capacitance 10 µF
Capacitor Type Tantalum Capacitor
Dielectric Material Tantalum (Solid Polymer)
ESR 50 MΩ
Height 3.55 Mm
Length 7.3 Mm
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Style Smt
Packing Method Tr, 7 Inch
Polarity Polarized
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 100 V
Size Code 2924
Width 6.1 Mm

Alternate Parts for TCMV106M100R0050

This table gives cross-reference parts and alternative options found for TCMV106M100R0050. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TCMV106M100R0050, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TCMV106M100K0050 Kyocera AVX Components Check for Price Tantalum Capacitor, Tantalum (solid Polymer), TCMV106M100R0050 vs TCMV106M100K0050
equivalents icon

TCMV106M100R0050 Related Parts

TCMV106M100R0050 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the TCMV106M100R0050 is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

  • Yes, the TCMV106M100R0050 is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6 for vibration testing.

  • The maximum allowable DC voltage derating for the TCMV106M100R0050 is 80% of the rated voltage, which is 80% of 100V = 80V.

  • Yes, the TCMV106M100R0050 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

  • The typical ESR of the TCMV106M100R0050 is 50 mΩ at 100 kHz and 20°C.
