TFML-142-02-L-D by: Samtec Inc

Board Connector, 84 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

Part Details for TFML-142-02-L-D by Samtec Inc

Results Overview of TFML-142-02-L-D by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Environmental Monitoring Industrial Automation

TFML-142-02-L-D Information

TFML-142-02-L-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DAO3W3P543M40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3W3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert UNC 4.40, Back: Metal Brackets.
DAL3V3P543G30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Harpoons for 1.6mm PCB Thickness.
DAV3V3P543H40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 3V3 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Harpoons for 2.4mm PCB Thickness.

Price & Stock for TFML-142-02-L-D

Part # Distributor Description Stock Price Buy
Onlinecomponents.com   RoHS: Compliant 0
  • 5 $15.7100
  • 25 $14.2300
  • 50 $13.6000
  • 100 $10.1300
  • 250 $8.8100
  • 500 $6.7600
  • 1,000 $4.8400
$4.8400 / $15.7100 Buy Now
DISTI # 000000000003256864
Sager Headers & Wire Housings 0
Buy Now
Master Electronics   RoHS: Compliant 0
  • 5 $15.7100
  • 25 $14.2300
  • 50 $13.6000
  • 100 $10.1300
  • 250 $8.8100
  • 500 $6.7600
  • 1,000 $4.8400
$4.8400 / $15.7100 Buy Now

US Tariff Estimator: TFML-142-02-L-D by Samtec Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

TFML-142-02-L-D
Samtec Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for TFML-142-02-L-D

TFML-142-02-L-D CAD Models

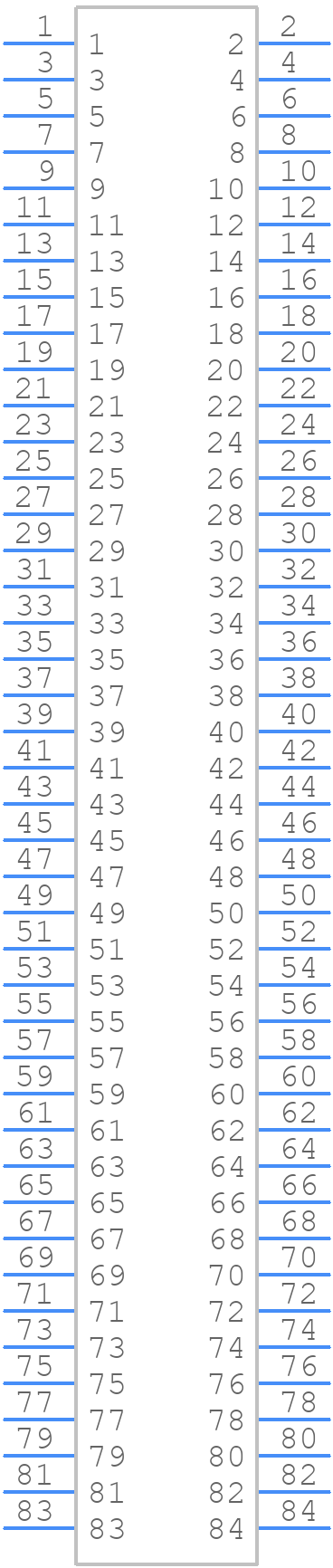

  • Part Symbol

    schematic symbol

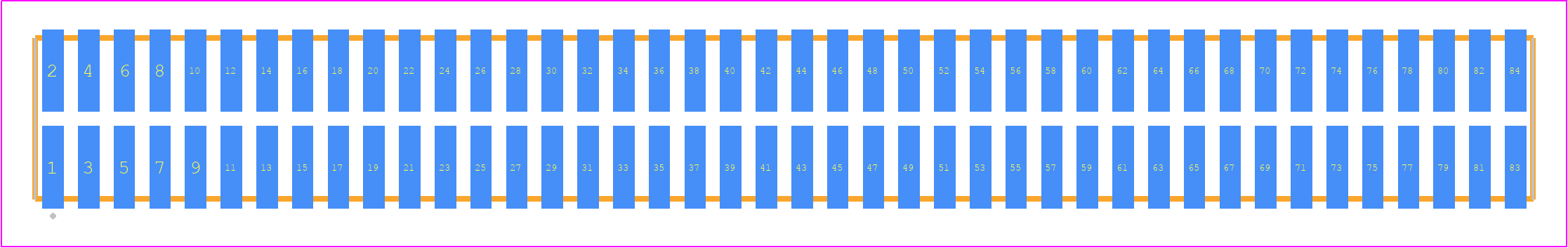

  • Footprint

    pcb footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TFML-142-02-L-D Part Data Attributes

Parametric Data
TFML-142-02-L-D Samtec Inc
Buy Now Datasheet
Compare Parts:
TFML-142-02-L-D Samtec Inc Board Connector, 84 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Additional Feature Shrouded
Connector Type Board Connector
Contact Finish Mating Gold Over Nickel
Contact Finish Termination Tin (Sn) - With Nickel (Ni) Barrier
Contact Gender Male
Contact Material Phosphor Bronze
DIN Conformance No
Filter Feature No
IEC Conformance No
JESD-609 Code e3
MIL Conformance No
Mixed Contacts No
Mounting Style Straight
Mounting Type Board
Number Of Connectors One
Number of Rows Loaded 2
Option General Purpose
Rated Current (Signal) 3.2 A
Terminal Pitch 1.27 Mm
Termination Type Surface Mount
Total Number of Contacts 84

Alternate Parts for TFML-142-02-L-D

This table gives cross-reference parts and alternative options found for TFML-142-02-L-D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TFML-142-02-L-D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TFML-142-02-F-D Samtec Inc Check for Price Board Connector, 84 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, TFML-142-02-L-D vs TFML-142-02-F-D
TFML-142-01-L-D Samtec Inc Check for Price Board Connector, 84 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, TFML-142-02-L-D vs TFML-142-01-L-D
G802A08420 Amphenol Corporation Check for Price Board Connector, 84 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, TFML-142-02-L-D vs G802A08420
TFML-142-02-SM-D Samtec Inc Check for Price Board Connector, 84 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, TFML-142-02-L-D vs TFML-142-02-SM-D
