THS6182RHFT Information
THS6182RHFT by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for THS6182RHFT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-THS6182RHFT-ND
|
DigiKey | IC TRANSCEIVER 1/0 24VQFN Min Qty: 31 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
2500 In Stock |
|
$9.6800 | Buy Now |
|
DISTI #
THS6182RHFT-ND
|
DigiKey | IC TRANSCEIVER 1/0 24VQFN Min Qty: 31 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$9.9530 | Buy Now |
|
DISTI #
595-THS6182RHFT
|
Mouser Electronics | High Speed Operational Amplifiers Low Pwr Dissipation Line Driver A 595-TH A 595-THS6182RHFR RoHS: Compliant | 0 |
|
$9.5900 / $9.9100 | Order Now |
|
DISTI #
86286215
|
Verical | ADSL Driver Dual 100MHz 24-Pin VQFN EP T/R RoHS: Compliant Min Qty: 39 Package Multiple: 1 | Americas - 1750 |
|
$7.7375 / $9.6750 | Buy Now |
|
DISTI #
86287958
|
Verical | ADSL Driver Dual 100MHz 24-Pin VQFN EP T/R RoHS: Compliant Min Qty: 39 Package Multiple: 1 Date Code: 1001 | Americas - 500 |
|
$7.7375 / $9.6750 | Buy Now |
|
DISTI #
86294172
|
Verical | ADSL Driver Dual 100MHz 24-Pin VQFN EP T/R RoHS: Compliant Min Qty: 39 Package Multiple: 1 Date Code: 1201 | Americas - 250 |
|
$7.7375 / $9.6750 | Buy Now |
|
|
Rochester Electronics | Line Driver, 2 Func, 2 Driver, CMOS, PQCC24 RoHS: Compliant Status: Active Min Qty: 1 | 2500 |
|
$6.1900 / $7.7400 | Buy Now |
|
|
Chip Stock | TRUE ROHS3Compliant DIFFERENTIAL Driver interface driver -40C~85C 100MHz +-5/+-15V 450V/mus | 5170 |
|
RFQ |
US Tariff Estimator: THS6182RHFT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for THS6182RHFT

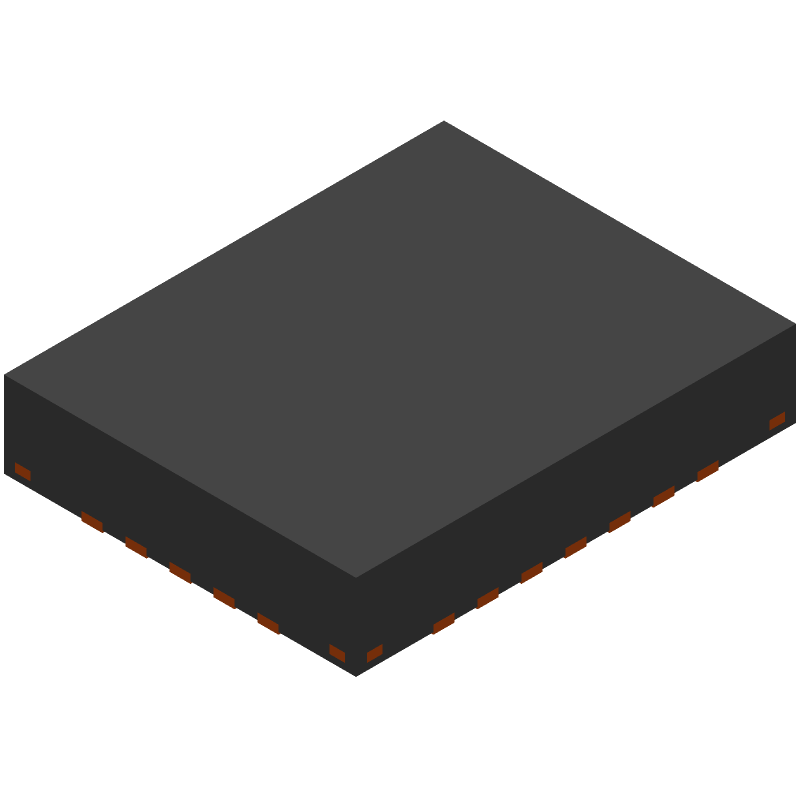

THS6182RHFT CAD Models
-
