TIP31C Information
TIP31C by STMicroelectronics is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for TIP31C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34X3393
|
Newark | Bipolar (Bjt) Single Transistor, Npn, 100 V, 40 W, 3 A, 50 Rohs Compliant: Yes |Stmicroelectronics TIP31C RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 3217 |
|
$0.3160 / $1.1800 | Buy Now |
|
DISTI #
TIP31C
|
Avnet Americas | Bipolar (BJT) Single Transistor, NPN, 100 V, 3 A, 40 W, TO-220AB, Through Hole - Rail/Tube (Alt: TIP31C) COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Tube | 16250 |
|
$0.1740 | Buy Now |
|
|
STMicroelectronics | COMPLEMENTARY SILICON POWER TRANSISTORS COO: Singapore RoHS: Compliant Min Qty: 1 | 6562 |
|
$0.2900 / $1.0800 | Buy Now |
|
|
Bristol Electronics | 440 |
|
RFQ | ||
|
|
Bristol Electronics | 36 |
|
RFQ | ||
|
DISTI #
TIP31C
|
TME | Transistor: NPN, bipolar, 100V, 3A, 40W, TO220AB Min Qty: 1 | 1646 |
|
$0.2560 / $0.7900 | Buy Now |
|
|
Ameya Holding Limited | TIP31C Series NPN 100 V 3 A Power Transistor Through Hole - TO-220 | 41 |
|
RFQ | |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ | |
|
DISTI #
TIP31C
|
IBS Electronics | TRANS GP BJT NPN 100V 3A 2000MW 3-PIN(3+, TAB) TO-220AB TUBE Min Qty: 50 Package Multiple: 1 | 950 |
|
$0.1988 / $0.2212 | Buy Now |
|
DISTI #
TIP31C
|
Avnet Silica | Bipolar BJT Single Transistor NPN 100 V 3 A 40 W TO220AB Through Hole (Alt: TIP31C) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 15 Weeks, 0 Days | Silica - 53850 |
|
Buy Now |
US Tariff Estimator: TIP31C by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TIP31C

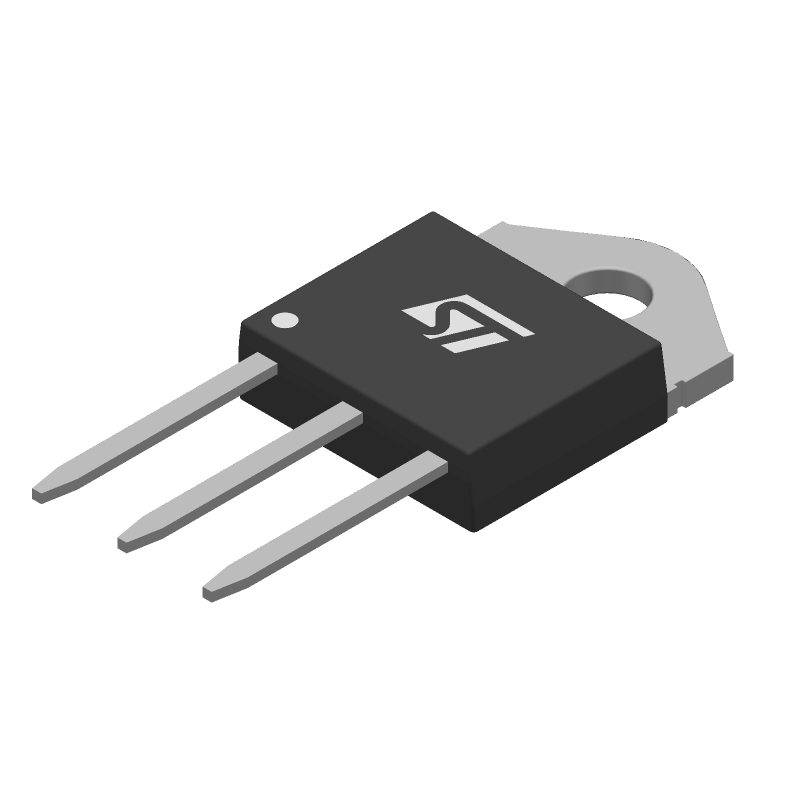

TIP31C CAD Models
-
Part Symbol
-

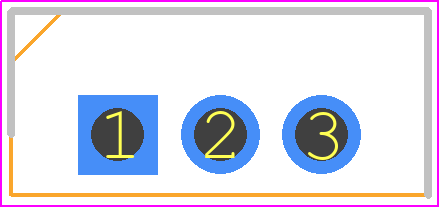

Footprint
-
