Part Details for TIP42AG by onsemi
Results Overview of TIP42AG by onsemi
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (8 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TIP42AG Information
TIP42AG by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for TIP42AG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AC7403
|
Newark | Transistor, Pnp, -60V, -6A, To-220, Transistor Polarity:Pnp, Collector Emitter Voltage V(Br)Ceo:60V, Transition Frequency Ft:3Mhz, Power Dissipation Pd:65W, Dc Collector Current:-6A, Dc Current Gain Hfe:15Hfe, Transistor Case Rohs Compliant: Yes |Onsemi TIP42AG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 7373 |
|
$0.5590 / $1.7900 | Buy Now |
|
DISTI #
TIP42AGOS-ND
|
DigiKey | TRANS PNP 60V 6A TO-220 Min Qty: 1 Lead time: 9 Weeks Container: Tube |
163 In Stock |
|
$0.3915 / $1.6200 | Buy Now |
|
DISTI #
TIP42AG
|
Avnet Americas | PNP Bipolar Power Transistor 60 V. ONSSPCTRNSTLT1T0R, - Rail/Tube (Alt: TIP42AG) COO: China RoHS: Compliant Min Qty: 1600 Package Multiple: 50 Lead time: 9 Weeks, 0 Days Container: Tube | 0 |
|
$0.3867 / $0.4232 | Buy Now |
|
DISTI #
863-TIP42AG
|
Mouser Electronics | Bipolar Transistors - BJT 6A 60V 65W PNP RoHS: Compliant | 0 |
|
$0.4480 / $1.6200 | Order Now |
|
|
Onlinecomponents.com | PNP Bipolar Power Transistor 60 V COO: Malaysia |
1100 In Stock |
|
$0.5430 / $1.0810 | Buy Now |
|
DISTI #
86044108
|
Verical | Trans GP BJT PNP 60V 6A 2000mW 3-Pin(3+Tab) TO-220AB Tube RoHS: Exempt Min Qty: 627 Package Multiple: 1 Date Code: 2201 | Americas - 8600 |
|
$0.4121 / $0.5983 | Buy Now |
|
DISTI #
86032151
|
Verical | Trans GP BJT PNP 60V 6A 2000mW 3-Pin(3+Tab) TO-220AB Tube RoHS: Exempt Min Qty: 627 Package Multiple: 1 Date Code: 2301 | Americas - 2000 |
|
$0.4121 / $0.5983 | Buy Now |
|
DISTI #
83591208
|
Verical | Trans GP BJT PNP 60V 6A 2000mW 3-Pin(3+Tab) TO-220AB Tube RoHS: Exempt Min Qty: 50 Package Multiple: 50 Date Code: 2349 | Americas - 1100 |
|
$0.7600 / $1.2706 | Buy Now |
|
|
Quest Components | 6 A, 60 V, PNP, SI, POWER TRANSISTOR, TO-220AB | 40 |
|
$0.8736 / $1.4560 | Buy Now |
|
|
Quest Components | 6 A, 60 V, PNP, SI, POWER TRANSISTOR, TO-220AB | 34 |
|
$0.5242 / $0.8736 | Buy Now |
US Tariff Estimator: TIP42AG by onsemi
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TIP42AG
TIP42AG CAD Models
-
Part Symbol
-

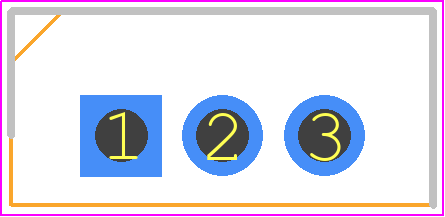

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TIP42AG Part Data Attributes
|
|
TIP42AG
onsemi
Buy Now
Datasheet
|
Compare Parts:
TIP42AG
onsemi
PNP Bipolar Power Transistor 60 V, TO-220 3 LEAD STANDARD, 50-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TO-220 3 LEAD STANDARD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 221A | |
| Reach Compliance Code | Not Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Factory Lead Time | 10 Weeks | |
| Case Connection | Collector | |
| Collector Current-Max (IC) | 6 A | |
| Collector-Emitter Voltage-Max | 60 V | |
| Configuration | Single | |
| DC Current Gain-Min (hFE) | 15 | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Flange Mount | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | Pnp | |
| Power Dissipation-Max (Abs) | 65 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Through-Hole | |
| Terminal Position | Single | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon | |
| Transition Frequency-Nom (fT) | 3 Mhz |
Alternate Parts for TIP42AG
This table gives cross-reference parts and alternative options found for TIP42AG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TIP42AG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TIP42A | STMicroelectronics | $0.5918 | PNP power transistor | TIP42AG vs TIP42A |
| TIP41BG | onsemi | $0.6201 | NPN Bipolar Power Transistor 80 V, TO-220 3 LEAD STANDARD, 50-TUBE | TIP42AG vs TIP41BG |
| JAN2N4399 | Microchip Technology Inc | $160.6994 | Power BJT _ TO-3 | TIP42AG vs JAN2N4399 |
| JANTXV2N4399 | Microchip Technology Inc | $281.1952 | Power BJT _ TO-3 | TIP42AG vs JANTXV2N4399 |
| 2N4398 | Microchip Technology Inc | $49.1612 | Power BJT _ TO-3 | TIP42AG vs 2N4398 |
| 2N4399 | Microchip Technology Inc | $69.3057 | Power BJT _ TO-3 | TIP42AG vs 2N4399 |
| TIP42BG | onsemi | Check for Price | PNP Bipolar Power Transistor 80 V, TO-220 3 LEAD STANDARD, 50-TUBE | TIP42AG vs TIP42BG |
| TIP41AG | onsemi | Check for Price | NPN Bipolar Power Transistor 60 V, TO-220 3 LEAD STANDARD, 50-TUBE | TIP42AG vs TIP41AG |
TIP42AG Frequently Asked Questions (FAQ)
-
The maximum safe operating area (SOA) for the TIP42AG is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. A general rule of thumb is to limit the collector current to 10A and the collector-emitter voltage to 40V to ensure safe operation.
-
To ensure the TIP42AG is properly biased for linear operation, you should ensure that the base-emitter voltage (VBE) is around 0.7V and the collector-emitter voltage (VCE) is at least 1V. Additionally, the base current should be limited to around 1/10th of the collector current to prevent saturation.
-
The recommended heatsink for the TIP42AG depends on the specific application and power dissipation requirements. However, a general rule of thumb is to use a heatsink with a thermal resistance of around 10-20°C/W to ensure the junction temperature remains below 150°C.
-
Yes, the TIP42AG can be used as a switch, but it's not recommended due to its relatively low current gain (hFE) and high saturation voltage (VCE(sat)). For switching applications, it's recommended to use a transistor with a higher current gain and lower saturation voltage, such as the TIP120 or TIP122.
-
To protect the TIP42AG from overvoltage and overcurrent, you can use a combination of voltage regulators, current limiters, and protective diodes. Additionally, ensure that the device is operated within its recommended operating conditions and that the power supply is properly regulated.
