Part Details for TLK1211RCP by Texas Instruments
Results Overview of TLK1211RCP by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (4 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
TLK1211RCP Information
TLK1211RCP by Texas Instruments is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TLK1211RCP | Texas Instruments | Gigabit Ethernet Serdes for PON 64-HVQFP -40 to 85 |
Price & Stock for TLK1211RCP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-20780-ND
|
DigiKey | IC TRANSCEIVER FULL 1/1 64HVQFP Min Qty: 1 Container: Tray |
0 Tray |
|
$11.2838 / $17.6900 | Buy Now |
|
DISTI #
595-TLK1211RCP
|
Mouser Electronics | Ethernet ICs Gigabit Ethernet Ser des for PON R 595-T R 595-TLK2201BIRCP RoHS: Compliant | 41 |
|
$11.1500 / $17.6900 | Buy Now |
|
DISTI #
86036086
|
Verical | PHY 1-CH 2.5V 64-Pin HVQFP EP Tray RoHS: Compliant Min Qty: 29 Package Multiple: 1 Date Code: 1101 | Americas - 40 |
|
$10.5125 / $13.1375 | Buy Now |
|
|
Rochester Electronics | IC DAC 1 CONV 16Bits R-2R 3-Wire Serial, MICROWIRE, QSPI, SPI 8-SOP Tube RoHS: Compliant Status: Active Min Qty: 1 | 45 |
|
$8.4100 / $10.5100 | Buy Now |
|
DISTI #
86036086
|
Verical | PHY 1-CH 2.5V 64-Pin HVQFP EP Tray RoHS: Compliant Min Qty: 29 Package Multiple: 1 Date Code: 1101 | Americas - 40 |
|
$10.5125 / $13.1375 | Buy Now |
|
DISTI #
86036086
|
Verical | PHY 1-CH 2.5V 64-Pin HVQFP EP Tray RoHS: Compliant Min Qty: 29 Package Multiple: 1 Date Code: 1101 | Americas - 40 |
|
$10.5125 / $13.1375 | Buy Now |
US Tariff Estimator: TLK1211RCP by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
TLK1211RCP CAD Models
-

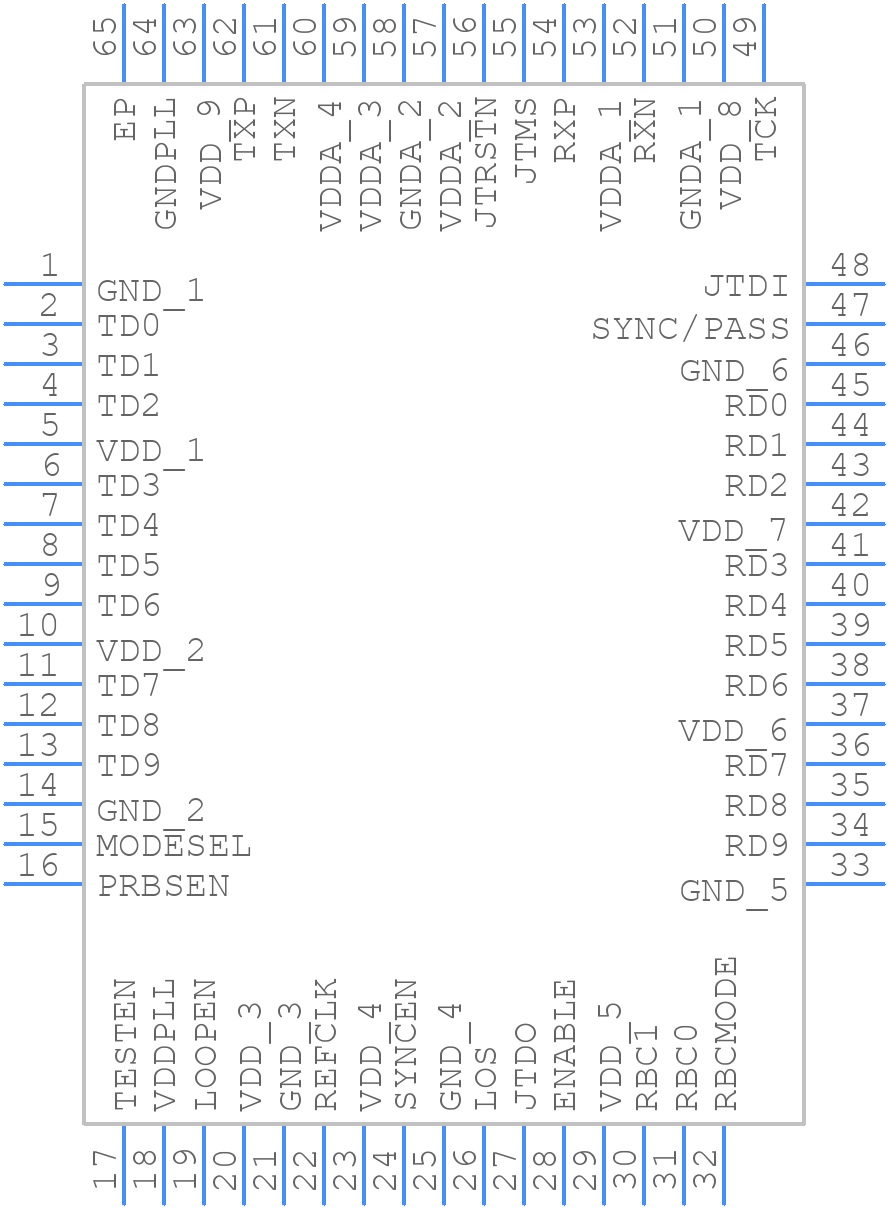

Part Symbol
-

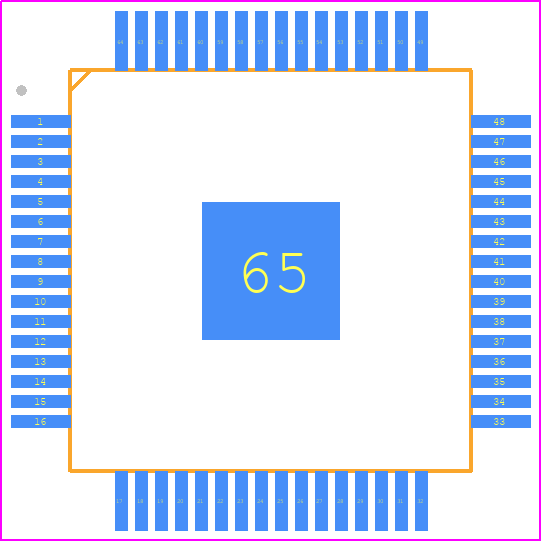

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLK1211RCP Part Data Attributes
|
|
TLK1211RCP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLK1211RCP
Texas Instruments
Ethernet Transceiver, 1-Trnsvr, CMOS, PQFP64
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFP | |
| Pin Count | 64 | |
| ECCN Code | 5A991.B.1 | |
| HTS Code | 8542.39.00.90 | |
| Data Rate | 1250000 Mbps | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 10 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HVFQFP | |
| Package Equivalence Code | TQFP64,.47SQ | |
| Package Shape | Square | |
| Package Style | Flatpack, Heat Sink/Slug, Very Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 Mm | |
| Supply Current-Max | 113 Ma | |
| Supply Voltage-Nom | 2.5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Telecom IC Type | Ethernet Transceiver | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 Mm |
