TLV2451IP Information
TLV2451IP by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TLV2451IP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-1891-5-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT 8DIP Min Qty: 700 Container: Tube |
0 Tube |
|
$1.7063 | Buy Now |
|
DISTI #
595-TLV2451IP
|
Mouser Electronics | Operational Amplifiers - Op Amps Low Power Rail-Rail RoHS: Compliant | 665 |
|
$1.5300 / $3.0100 | Buy Now |
|
DISTI #
86289776
|
Verical | Op Amp Single Low Power Amplifier R-R I/O ±3V/6V 8-Pin PDIP Tube RoHS: Compliant Min Qty: 216 Package Multiple: 1 Date Code: 0201 | Americas - 13350 |
|
$1.4625 / $1.7375 | Buy Now |
|
DISTI #
86289534
|
Verical | Op Amp Single Low Power Amplifier R-R I/O ±3V/6V 8-Pin PDIP Tube RoHS: Compliant Min Qty: 216 Package Multiple: 1 Date Code: 0401 | Americas - 12950 |
|
$1.4625 / $1.7375 | Buy Now |
|
DISTI #
86294884
|
Verical | Op Amp Single Low Power Amplifier R-R I/O ±3V/6V 8-Pin PDIP Tube RoHS: Compliant Min Qty: 216 Package Multiple: 1 Date Code: 0601 | Americas - 12500 |
|
$1.4625 / $1.7375 | Buy Now |
|
DISTI #
86288619
|
Verical | Op Amp Single Low Power Amplifier R-R I/O ±3V/6V 8-Pin PDIP Tube RoHS: Compliant Min Qty: 216 Package Multiple: 1 Date Code: 9901 | Americas - 3150 |
|
$1.4625 / $1.7375 | Buy Now |
|
|
Rochester Electronics | Op Amp Standard 220kHz 8-DIP Tube RoHS: Compliant Status: Active Min Qty: 1 | 41967 |
|
$1.1700 / $1.4600 | Buy Now |
|
DISTI #
TLV2451IP
|
TME | IC: operational amplifier, 220kHz, Ch: 1, Uoper: 2.7÷6V, DIP8, 500pA Min Qty: 50 | 0 |
|
$2.4200 | RFQ |
US Tariff Estimator: TLV2451IP by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
TLV2451IP CAD Models
-

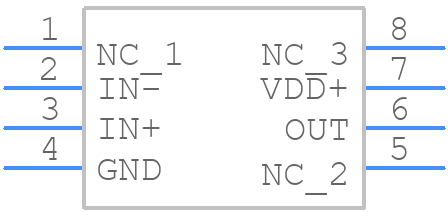

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLV2451IP Part Data Attributes
|
|
TLV2451IP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV2451IP
Texas Instruments
Operational Amplifier, 1 Func, 1500uV Offset-Max, CMOS, PDIP8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DIP | |
| Pin Count | 8 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.007 µA | |
| Bias Current-Max (IIB) @25C | 0.005 µA | |
| Common-mode Reject Ratio-Min | 70 Db | |
| Common-mode Reject Ratio-Nom | 80 Db | |
| Frequency Compensation | Yes | |
| Input Offset Current-Max (IIO) | 0.00045 µA | |
| Input Offset Voltage-Max | 1500 µV | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e4 | |
| Length | 9.81 Mm | |
| Low-Bias | No | |
| Low-Offset | No | |
| Micropower | Yes | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Packing Method | Tube | |
| Power | No | |
| Programmable Power | No | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 Mm | |
| Slew Rate-Min | 0.02 V/Us | |
| Slew Rate-Nom | 0.11 V/Us | |
| Supply Current-Max | 0.042 Ma | |
| Supply Voltage Limit-Max | 7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | No | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Unity Gain BW-Nom | 220 | |
| Voltage Gain-Min | 63095 | |
| Wideband | No | |
| Width | 7.62 Mm |
