TLV2553IPWR Information
TLV2553IPWR by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TLV2553IPWRQ1 | Texas Instruments | Automotive 12-Bit 200-KSPS 11-Channel Low-Power Serial ADC 20-TSSOP -40 to 85 | |
| TLV2553IPWR | Texas Instruments | 12-Bit, 200 KSPS, 11 Channel, Low Power, Serial ADC Serial Out, w/Pwrdwn 20-TSSOP -40 to 85 | |
| TLV2553IPWRG4 | Texas Instruments | 12-Bit, 200 KSPS, 11 Channel, Low Power, Serial ADC Serial Out, w/Pwrdwn 20-TSSOP -40 to 85 |
Price & Stock for TLV2553IPWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | 12-bit200-KSPS11-channellow-powerserialADCwithpowerdown20-TSSOP-40to85 | 2690 |
|
RFQ | |
|
|
LCSC | -40+85 SPI 2.7V5.5V TSSOP-20 Analog to Digital Converters (ADC) RoHS | 8 |
|
$21.0322 / $21.7797 | Buy Now |
|
|
Win Source Electronics | 12-BIT, 200-KSPS, 11-CHANNEL, LOW-POWER, SERIAL ADC | IC ADC 12BIT SAR 20TSSOP | 280 |
|
$14.8572 / $22.2858 | Buy Now |
US Tariff Estimator: TLV2553IPWR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TLV2553IPWR
TLV2553IPWR CAD Models
-
Part Symbol
-

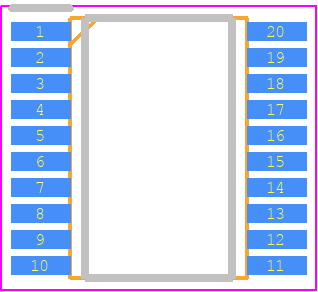

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLV2553IPWR Part Data Attributes
|
|
TLV2553IPWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV2553IPWR
Texas Instruments
12-bit 200-KSPS 11-channel low-power serial ADC with power down 20-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TSSOP | |
| Package Description | Tssop, Tssop20,.25 | |
| Pin Count | 20 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.30 | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 4.15 µS | |
| Converter Type | Adc, Successive Approximation | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 6.5 Mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 11 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | Serial | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP20,.25 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile, Shrink Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.2 Mhz | |
| Sample and Hold / Track and Hold | Sample | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max | 1.2 Ma | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | Yes | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.65 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 Mm |
Alternate Parts for TLV2553IPWR
This table gives cross-reference parts and alternative options found for TLV2553IPWR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLV2553IPWR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLV2553IDWR | Texas Instruments | $4.4937 | 12-bit 200-KSPS 11-channel low-power serial ADC with power down 20-SOIC -40 to 85 | TLV2553IPWR vs TLV2553IDWR |
| TLV2553IPW | Texas Instruments | $5.6165 | 12-bit 200-KSPS 11-channel low-power serial ADC with power down 20-TSSOP -40 to 85 | TLV2553IPWR vs TLV2553IPW |
| TLV2553IDW | Texas Instruments | $5.6165 | 12-bit 200-KSPS 11-channel low-power serial ADC with power down 20-SOIC -40 to 85 | TLV2553IPWR vs TLV2553IDW |
| TLV2553IPWRG4 | Texas Instruments | Check for Price | 12-bit 200-KSPS 11-channel low-power serial ADC with power down 20-TSSOP -40 to 85 | TLV2553IPWR vs TLV2553IPWRG4 |
TLV2553IPWR Frequently Asked Questions (FAQ)
-
The recommended layout and placement for the TLV2553IPWR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources to minimize noise. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
-
To optimize the performance of the TLV2553IPWR in a noisy environment, use a low-pass filter at the input, use a shielded cable for the analog input, and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise. Additionally, ensure that the device is properly decoupled and that the power supply is clean and well-regulated.
-
The TLV2553IPWR can handle clock frequencies up to 3.6 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information.
-
Yes, the TLV2553IPWR can be used in a multi-channel application. However, it's recommended to use a separate device for each channel to ensure optimal performance and to minimize crosstalk between channels. Additionally, consider using a multiplexer or a switch to select the desired channel.
-
To troubleshoot issues with the TLV2553IPWR, start by checking the power supply and clock signals, then verify that the input signals are within the specified range. Use an oscilloscope to check the output signals and verify that they are within the expected range. Consult the datasheet and application notes for more information on troubleshooting.
