TLV9044IDYYR Information
TLV9044IDYYR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TLV9044IDYYR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TLV9044IDYYRDKR-ND
|
DigiKey | QUAD, 5.5-V, 350-KHZ, ULTRA-LOW Min Qty: 1 Container: Digi-Reel |
20681 Digi-Reel® |
|
$0.6808 / $1.3200 | Buy Now |
|
DISTI #
296-TLV9044IDYYRCT-ND
|
DigiKey | QUAD, 5.5-V, 350-KHZ, ULTRA-LOW Min Qty: 1 Container: Cut Tape |
20681 Cut Tape |
|
$0.6808 / $1.3200 | Buy Now |
|
DISTI #
296-TLV9044IDYYRTR-ND
|
DigiKey | QUAD, 5.5-V, 350-KHZ, ULTRA-LOW Min Qty: 3000 Container: Tape & Reel |
18000 Tape & Reel |
|
$0.6103 / $0.6396 | Buy Now |
|
DISTI #
595-TLV9044IDYYR
|
Mouser Electronics | Operational Amplifiers - Op Amps Quad 5.5-V 350-kHz U ltra-low 1.2-V l RoHS: Compliant | 4656 |
|
$0.6180 / $1.3200 | Buy Now |
|
|
Ameya Holding Limited | 31395 |
|
RFQ |
US Tariff Estimator: TLV9044IDYYR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
TLV9044IDYYR CAD Models
-

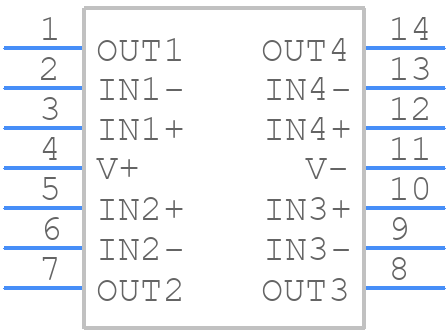

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TLV9044IDYYR Part Data Attributes
|
|
TLV9044IDYYR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV9044IDYYR
Texas Instruments
Operational Amplifier, 4 Func, 2250uV Offset-Max, CMOS, PDSO14
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Amplifier Type | Operational Amplifier | |
| Architecture | Voltage-Feedback | |
| Average Bias Current-Max (IIB) | 0.000012 µA | |
| Bias Current-Max (IIB) @25C | 0.000012 µA | |
| Common-mode Reject Ratio-Min | 75 Db | |
| Common-mode Reject Ratio-Nom | 89 Db | |
| Frequency Compensation | No | |
| Input Offset Current-Max (IIO) | 0.00003 µA | |
| Input Offset Voltage-Max | 2250 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.645 Mm | |
| Low-Bias | Yes | |
| Low-Offset | No | |
| Micropower | Yes | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | No | |
| Programmable Power | No | |
| Seated Height-Max | 1.55 Mm | |
| Slew Rate-Nom | 0.2 V/Us | |
| Supply Current-Max | 0.052 Ma | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 1.2 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 350 | |
| Voltage Gain-Min | 223872.11 | |
| Wideband | No | |
| Width | 3.905 Mm |
