TMP35FSZ-REEL Information
TMP35FSZ-REEL by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| HSCHD02AR0001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Black housing | |
| HSDNBSPPCB14WBA | Amphenol Communications Solutions | HSD Right plug,Tape and Reel,Cream white housing | |
| HSCHD02BR1001R | Amphenol Communications Solutions | HSC Right Angle plug,Tape and Reel,Blue housing |
Price & Stock for TMP35FSZ-REEL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86AK8799
|
Newark | Temperature Sensor, 125Deg C, Nsoic-8, Sensor Output Type:Analog, Accuracy:± 2°C, Sensor Case/Package:Nsoic, No. Of Pins:8Pins, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, No. Of Channels:1Channels, Resolution:- Rohs Compliant: Yes |Analog Devices TMP35FSZ-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2500 |
|
$1.5200 / $2.3500 | Buy Now |
|
DISTI #
505-TMP35FSZ-REELCT-ND
|
DigiKey | IC SENSOR TEMP 2.7/5.5V 8SOIC Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1425 In Stock |
|
$1.3745 / $2.2800 | Buy Now |
|
DISTI #
584-TMP35FSZ-REEL
|
Mouser Electronics | Board Mount Temperature Sensors 3V TEMPERATURE SENSOR TAPE & REEL RoHS: Compliant | 2363 |
|
$1.3000 / $2.2800 | Buy Now |
|
|
Analog Devices Inc | 3V TEMPERATURE SENSOR TAPE & R Min Qty: 1 Package Multiple: 2500 | 75285 |
|
$1.3745 / $2.2800 | Buy Now |
|
DISTI #
26622849
|
Verical | Temp Sensor Analog Serial (2-Wire) 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 75000 |
|
$1.1626 | Buy Now |
|
|
Rochester Electronics | Analog Voltage Output Sensor, 0.1V Min, 2V Max, 3Cel, Rectangular, 8 Pin, Surface Mount RoHS: Compliant Status: Active Min Qty: 1 | 37785 |
|
$0.9920 / $1.6000 | Buy Now |
|
DISTI #
26622849
|
Verical | Temp Sensor Analog Serial (2-Wire) 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 75000 |
|
$1.1626 | Buy Now |
|
DISTI #
26622849
|
Verical | Temp Sensor Analog Serial (2-Wire) 8-Pin SOIC N T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 75000 |
|
$1.1626 | Buy Now |
US Tariff Estimator: TMP35FSZ-REEL by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TMP35FSZ-REEL
TMP35FSZ-REEL CAD Models
-

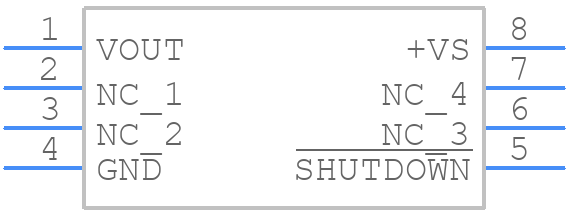

Part Symbol
-
