TNETE2201BPHD Information
TNETE2201BPHD by Texas Instruments is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TNETE2201BPHD | Texas Instruments | 1.25-Gigabit Ethernet Transceiver 64-HTQFP 0 to 70 |
Price & Stock for TNETE2201BPHD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86044378
|
Verical | PHY 1-CH 1.25Gbps 3.3V 64-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 55 Package Multiple: 1 Date Code: 1201 | Americas - 69120 |
|
$5.5375 / $6.9250 | Buy Now |
|
DISTI #
86046401
|
Verical | PHY 1-CH 1.25Gbps 3.3V 64-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 55 Package Multiple: 1 Date Code: 1101 | Americas - 16380 |
|
$5.5375 / $6.9250 | Buy Now |
|
DISTI #
86051592
|
Verical | PHY 1-CH 1.25Gbps 3.3V 64-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 55 Package Multiple: 1 Date Code: 1001 | Americas - 7110 |
|
$5.5375 / $6.9250 | Buy Now |
|
DISTI #
86034890
|
Verical | PHY 1-CH 1.25Gbps 3.3V 64-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 55 Package Multiple: 1 Date Code: 0301 | Americas - 6530 |
|
$5.5375 / $6.9250 | Buy Now |
|
DISTI #
86028751
|
Verical | PHY 1-CH 1.25Gbps 3.3V 64-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 55 Package Multiple: 1 Date Code: 0401 | Americas - 1464 |
|
$5.5375 / $6.9250 | Buy Now |
|
DISTI #
86035977
|
Verical | PHY 1-CH 1.25Gbps 3.3V 64-Pin HTQFP EP Tray RoHS: Compliant Min Qty: 55 Package Multiple: 1 | Americas - 90 |
|
$5.5375 / $6.9250 | Buy Now |
|
DISTI #
595-TNETE2201BPHD
|
Mouser Electronics | Ethernet ICs 1.25-Gigabit Etherne t Transceiver RoHS: Compliant | 0 |
|
$6.4800 / $6.5000 | Order Now |
|
|
Bristol Electronics | PHY 1-CH 1.25Gbps 3.3V 64-Pin HTQFP EP Tray Min Qty: 1 | 155 |
|
$3.7742 / $8.3872 | Buy Now |
|
|
Quest Components | IC,LAN TRANSCEIVER,SINGLE,BICMOS,TQFP,64PIN,PLASTIC | 435 |
|
$4.2660 / $10.6650 | Buy Now |
|
|
Quest Components | IC,LAN TRANSCEIVER,SINGLE,BICMOS,TQFP,64PIN,PLASTIC | 124 |
|
$6.5768 / $10.6650 | Buy Now |
US Tariff Estimator: TNETE2201BPHD by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
TNETE2201BPHD CAD Models
-

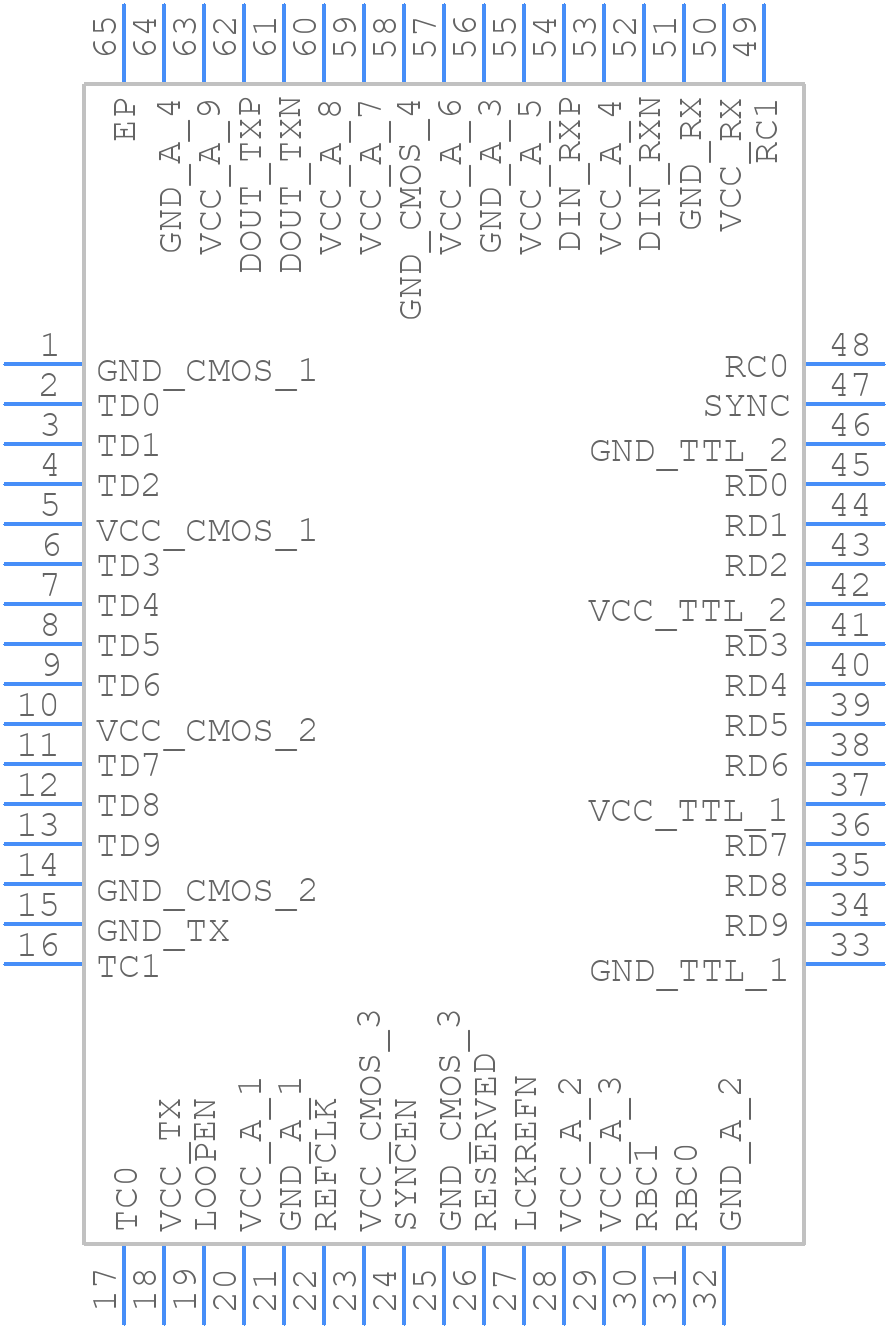

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TNETE2201BPHD Part Data Attributes
|
|
TNETE2201BPHD
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TNETE2201BPHD
Texas Instruments
Ethernet Transceiver, 1-Trnsvr, CMOS, PQFP64
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | QFP | |
| Package Description | Htqfp-64 | |
| Pin Count | 64 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Date Of Intro | 1999-08-27 | |
| Data Rate | 1250000 Mbps | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 14 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | HTQFP | |
| Package Equivalence Code | TQFP64,.63SQ,32 | |
| Package Shape | Square | |
| Package Style | Flatpack, Heat Sink/Slug, Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max | 0.26 Ma | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Telecom IC Type | Ethernet Transceiver | |
| Temperature Grade | Commercial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.8 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 14 Mm |
