TPS2561ADRCR by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS2561ADRCR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-43616-1-ND
|
DigiKey | IC PWR SWITCH N-CHAN 1:2 10VSON Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
12618 In Stock |
|
$0.6645 / $1.4200 | Buy Now |
|
DISTI #
2156-TPS2561ADRCR-ND
|
DigiKey | IC PWR SWITCH N-CHAN 1:2 10VSON Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT | Temporarily Out of Stock |
|
Buy Now | |
|
DISTI #
595-TPS2561ADRCR
|
Mouser Electronics | Power Switch ICs - Power Distribution Dual Channel Prec Ad j Crnt-Ltd Pwr Sw A 595-TPS2561ADRCT RoHS: Compliant | 3713 |
|
$0.6670 / $1.4200 | Buy Now |
|
DISTI #
V72:2272_07413133
|
Arrow Electronics | USB Power Switch Dual 6.5V 0.25A to 2.8A 10-Pin VSON EP T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2426 Container: Cut Strips | Americas - 89 |
|
$0.6501 / $1.3943 | Buy Now |
|
DISTI #
87629067
|
Verical | USB Power Switch Dual 6.5V 0.25A to 2.8A 10-Pin VSON EP T/R RoHS: Compliant Min Qty: 11 Package Multiple: 1 Date Code: 2426 | Americas - 89 |
|
$0.6501 / $1.0092 | Buy Now |
|
|
Quest Components | 384 |
|
$1.1100 / $2.4000 | Buy Now | |
|
|
Rochester Electronics | Power Supply Support Circuit, Adjustable, 1 Channel, PDSO10 RoHS: Compliant Status: Active Min Qty: 1 | 7 |
|
$0.5263 / $0.8489 | Buy Now |
|
DISTI #
V72:2272_07413133
|
Arrow Electronics | USB Power Switch Dual 6.5V 0.25A to 2.8A 10-Pin VSON EP T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2426 Container: Cut Strips | Americas - 89 |
|
$0.6501 / $1.3943 | Buy Now |
|
DISTI #
87629067
|
Verical | USB Power Switch Dual 6.5V 0.25A to 2.8A 10-Pin VSON EP T/R COO: Philippines RoHS: Compliant Min Qty: 11 Package Multiple: 1 Date Code: 2426 | Americas - 89 |
|
$0.6501 / $1.0092 | Buy Now |
|
DISTI #
V72:2272_07413133
|
Arrow Electronics | USB Power Switch Dual 6.5V 0.25A to 2.8A 10-Pin VSON EP T/R COO: Philippines RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2426 Container: Cut Strips | Americas - 89 |
|
$0.6501 / $1.3943 | Buy Now |
US Tariff Estimator: TPS2561ADRCR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS2561ADRCR
TPS2561ADRCR CAD Models
-

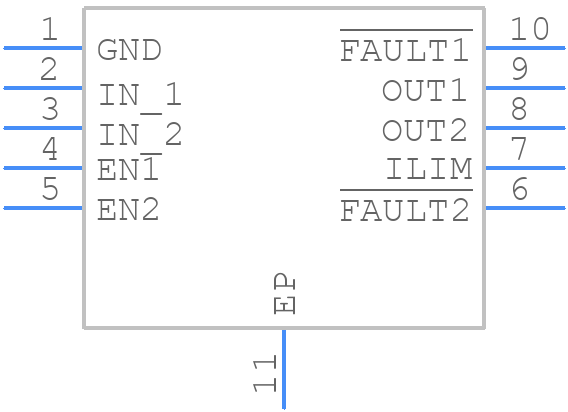

Part Symbol
-
