TPS54334DDAR Information
TPS54334DDAR by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS54334DDAR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-47882-1-ND
|
DigiKey | IC REG BUCK ADJ 3A 8SOPWR Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
5288 In Stock |
|
$1.1358 / $2.2800 | Buy Now |
|
DISTI #
595-TPS54334DDAR
|
Mouser Electronics | Switching Voltage Regulators 4.2V to 28V Input vo ltage 3A Output cur A 595-TPS54334DDA RoHS: Compliant | 2539 |
|
$1.0400 / $2.0900 | Buy Now |
|
|
Quest Components | 1542 |
|
$0.7000 / $2.0000 | Buy Now | |
|
|
Chip Stock | Conv DC-DC 4.2V to 28V Synchronous Step Down Single-Out 0.8V to 28V 3A 8-Pin HSOP EP T/R | 19270 |
|
RFQ | |
|
|
LCSC | Buck Switching Regulator IC Adjustable 0.8V24V 1 Output 3A SO-8 | 2809 |
|
$0.6447 / $1.1359 | Buy Now |
US Tariff Estimator: TPS54334DDAR by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS54334DDAR
TPS54334DDAR CAD Models
-

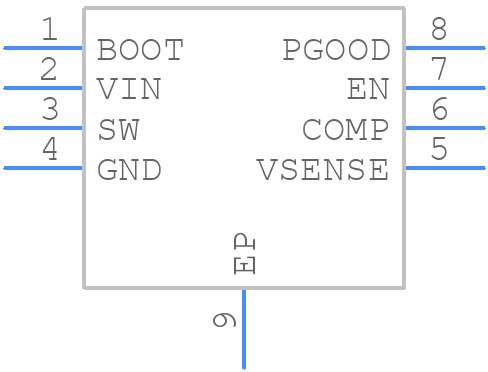

Part Symbol
-
