Part Details for TPS62800YKAT by Texas Instruments
Results Overview of TPS62800YKAT by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (1 replacement)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (9 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
TPS62800YKAT Information
TPS62800YKAT by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS62800YKAT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | Conv DC-DC 1.8V to 5.5V Synchronous Step Down Single-Out 0.7V 1A 6-Pin DSBGA T/R | 60 |
|
RFQ | |
|
|
Vyrian | Switching Regulator, Voltage-mode, 1A, 4000kHz Switching Freq-Max | 6383 |
|
RFQ |
US Tariff Estimator: TPS62800YKAT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

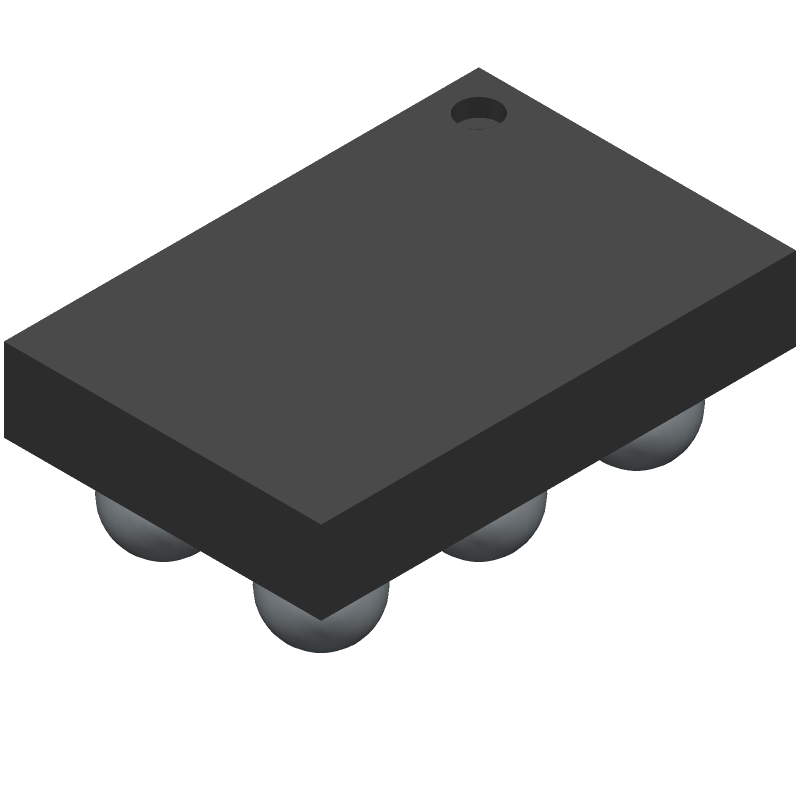

TPS62800YKAT CAD Models
-
