TPS71533QDCKRQ1 Information
TPS71533QDCKRQ1 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TPS71533QDCKRQ1 | Texas Instruments | 50-mA, 24-V, 3.2-µA Supply Current, Low-Dropout Linear Regulators in SC70 Package 5-SC70 -40 to 125 |
Price & Stock for TPS71533QDCKRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH6089
|
Newark | Regulator, Ldo, Fixed, 3.3V, Sc-70-5, Output Type:Fixed, Input Voltage Min:2.5V, Input Voltage Max:24V, Fixed Output Voltage Nom.:3.3V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:50Ma, Dropout Rohs Compliant: Yes |Texas Instruments TPS71533QDCKRQ1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 798 |
|
$0.9390 / $1.0200 | Buy Now |
|
DISTI #
296-20667-1-ND
|
DigiKey | IC REG LINEAR 3.3V 50MA SC-70-5 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
1911 In Stock |
|
$0.3321 / $0.7700 | Buy Now |
|
DISTI #
595-TPS71533QDCKRQ1
|
Mouser Electronics | LDO Voltage Regulators Auto Cat 50mA 24V 3. 2uA RoHS: Compliant | 31515 |
|
$0.3500 / $0.7700 | Buy Now |
|
|
Quest Components | 3.3V FIXED POSITIVE LDO REGULATOR, 0.75V DROPOUT, PDSO5 | 1040 |
|
$0.8580 / $2.0800 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 9454 |
|
RFQ | |
|
|
Chip Stock | Automotive,50mA24Vultra-low-IQlow-dropout(LDO)voltageregulator5-SC70-40to125 | 71365 |
|
RFQ | |
|
|
LCSC | 60dB(100kHz) Positive Fixed 3.3V SC-70-5 Voltage Regulators - Linear Low Drop Out (LDO) Regulators RoHS | 3 |
|
$0.5086 / $0.5409 | Buy Now |
|
|
Win Source Electronics | IC REG LDO 3.3V 50MA SC70-5 | 58865 |
|
$0.5471 / $0.7066 | Buy Now |
US Tariff Estimator: TPS71533QDCKRQ1 by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS71533QDCKRQ1
TPS71533QDCKRQ1 CAD Models
-

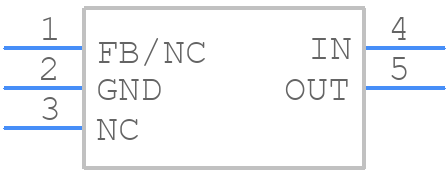

Part Symbol
-
Footprint
-

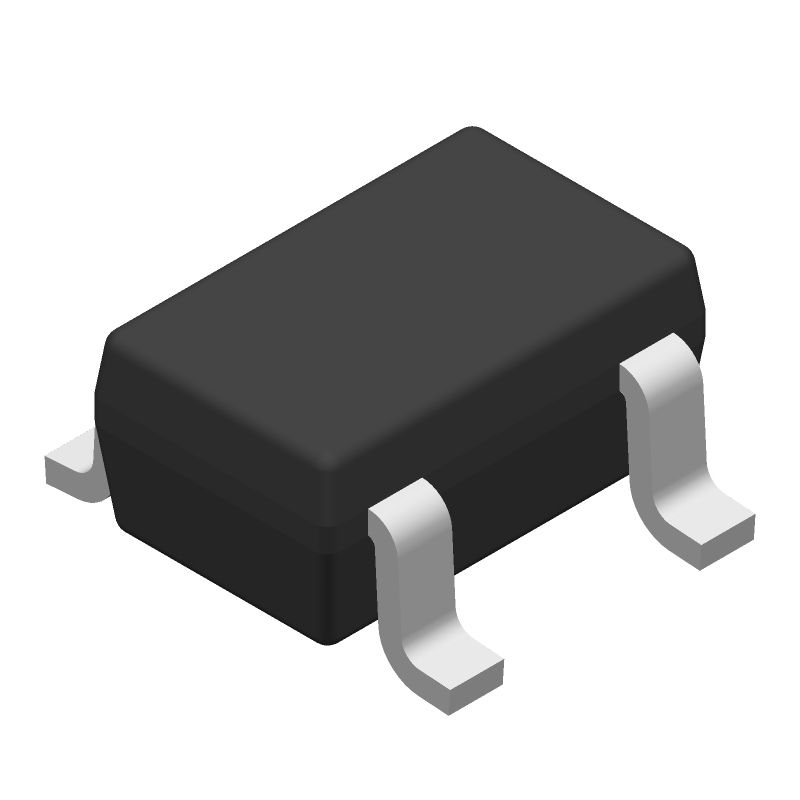

3D Model
