Part Details for TPS76318DBVT by Texas Instruments
Results Overview of TPS76318DBVT by Texas Instruments
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (5 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TPS76318DBVT Information
TPS76318DBVT by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TPS76318DBVT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3007904
|
element14 Asia-Pacific | V REG LDO 0.15A 1.8V, SMD, 76318 COO: CN RoHS: Compliant Min Qty: 1 Container: Cut Tape | 639 |
|
$1.1700 | Buy Now |
|
DISTI #
3007904RL
|
element14 Asia-Pacific | V REG LDO 0.15A 1.8V, SMD, 76318 COO: CN RoHS: Compliant Min Qty: 1 Container: Reel | 639 |
|
$1.1700 | Buy Now |
|
|
Bristol Electronics | 3965 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 5 | 758 |
|
$0.3150 / $1.1250 | Buy Now |
|
|
Bristol Electronics | 145 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 5 | 64 |
|
$0.7313 / $1.1250 | Buy Now |
|
|
Rochester Electronics | TPS763 Low Iq, 150-mA, Low-Dropout Linear Regulators RoHS: Compliant Status: Active Min Qty: 1 | 2922 |
|
$0.4042 / $0.6519 | Buy Now |
|
DISTI #
TPS76318DBVT
|
TME | IC: voltage regulator, LDO,fixed, 1.8V, 0.15A, SOT23-5, SMD, Ch: 1 Min Qty: 1 | 624 |
|
$0.6380 / $0.8900 | Buy Now |
|
|
Ameya Holding Limited | IC: voltage regulator, LDO,fixed, 1.8V, 0.15A, SOT23-5, SMD | 98171 |
|
RFQ | |
|
|
ComSIT USA | LOW-POWER 150-MILLIAMP LOW-DROPOUT LINEAR REGULATOR Fixed Positive LDO Regulator, 1.8V, 0.3V Dropout, PMOS, PDSO5 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ |
US Tariff Estimator: TPS76318DBVT by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for TPS76318DBVT
TPS76318DBVT CAD Models
-

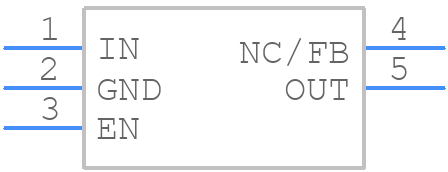

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TPS76318DBVT Part Data Attributes
|
|
TPS76318DBVT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TPS76318DBVT
Texas Instruments
150-mA, 10-V, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-23 | |
| Pin Count | 5 | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Adjustability | Fixed | |
| Dropout Voltage1-Nom | 0.375 V | |
| Input Voltage Absolute-Max | 10 V | |
| Input Voltage-Max | 10 V | |
| Input Voltage-Min | 2.7 V | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 Mm | |
| Line Regulation-Max | 0.013% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.15 A | |
| Output Voltage1-Max | 1.867 V | |
| Output Voltage1-Min | 1.733 V | |
| Output Voltage1-Nom | 1.8 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Low Profile, Shrink Pitch | |
| Packing Method | Tr, 7 Inch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | Fixed Positive Single Output Ldo Regulator | |
| Seated Height-Max | 1.45 Mm | |
| Surface Mount | Yes | |
| Technology | Pmos | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 3.7% | |
| Width | 1.6 Mm |
Alternate Parts for TPS76318DBVT
This table gives cross-reference parts and alternative options found for TPS76318DBVT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPS76318DBVT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS76318DBVRG4 | Texas Instruments | Check for Price | 150-mA, 10-V, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125 | TPS76318DBVT vs TPS76318DBVRG4 |
| TPS76318DBVTG4 | Texas Instruments | Check for Price | 150-mA, 10-V, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125 | TPS76318DBVT vs TPS76318DBVTG4 |
| TPS76318DBVR | Texas Instruments | Check for Price | 150-mA, 10-V, low-dropout voltage regulator with enable 5-SOT-23 -40 to 125 | TPS76318DBVT vs TPS76318DBVR |
| LP2985-18D | NXP Semiconductors | Check for Price | IC VREG 1.8 V FIXED POSITIVE LDO REGULATOR, 0.2 V DROPOUT, PDSO5, 1.60 MM, PLASTIC, MO-178, SOT-25, SOT-23, SOP-5, Fixed Positive Single Output LDO Regulator | TPS76318DBVT vs LP2985-18D |
| LP2985-18D-G | NXP Semiconductors | Check for Price | IC VREG 1.8 V FIXED POSITIVE LDO REGULATOR, 0.2 V DROPOUT, PDSO5, 1.60 MM, PLASTIC, MO-178, SOT-25, SOT-23, SOP-5, Fixed Positive Single Output LDO Regulator | TPS76318DBVT vs LP2985-18D-G |
TPS76318DBVT Frequently Asked Questions (FAQ)
-
The maximum input voltage is 12V, but it's recommended to keep it below 10V for optimal performance and to prevent overheating.
-
To ensure stability, use a minimum output capacitance of 2.2uF and an ESR of 0.1Ω to 10Ω. Also, place the output capacitor close to the VOUT pin to minimize parasitic inductance.
-
A minimum input capacitance of 1uF is recommended to filter out noise and ensure stable operation.
-
The TPS76318DBVT is rated for operation up to 125°C, but thermal derating is required above 85°C. Ensure proper heat sinking and thermal management to prevent overheating.
-
Power dissipation (PD) can be calculated using the formula: PD = (VIN - VOUT) x IOUT. Ensure the calculated PD is within the recommended maximum power dissipation of 1.5W.
