Capacitors / Fixed Capacitors / TPSA476K006R0800
Datasheets
TPSA476K006R0800 by: Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 1206, CHIP

Part Details for TPSA476K006R0800 by Kyocera AVX Components

Results Overview of TPSA476K006R0800 by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TPSA476K006R0800 Information

TPSA476K006R0800 by Kyocera AVX Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for TPSA476K006R0800

Part # Distributor Description Stock Price Buy
DISTI # 12P7987
Newark Cap, 47Μf, 6.3V, 10%, 1206, Smd, Capacitance:47Μf, Voltage Rating:6.3V, Tantalum Capacitor Case:1206 [3216 Metric], Product Range:Tps Series, Capacitance Tolerance:± 10%, Operating Temperature Min:-55°C, Operating Temperature Rohs Compliant: Yes |Kyocera Avx TPSA476K006R0800 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1417
  • 1 $0.6540
  • 10 $0.3580
  • 25 $0.3490
  • 50 $0.3410
  • 100 $0.3320
$0.3320 / $0.6540 Buy Now
DISTI # 75M2901
Newark Tantalum Capacitor, 47Uf, 6.3V, 0.8 Ohm, 0.1, 1206, Capacitance:47Μf, Voltage(Dc):6.3V, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 10%, Esr:0.8Ohm, Manufacturer Size Code:A, Failure Rate:-, Qualification:- Rohs Compliant: Yes |Kyocera Avx TPSA476K006R0800 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $0.6560
  • 10 $0.3600
  • 25 $0.3510
  • 50 $0.3430
  • 100 $0.3340
$0.3340 / $0.6560 Buy Now
DISTI # 56K4064
Newark Tantalum Capacitor, 47Uf, 6.3V, 0.8 Ohm, 0.1, 1206, Full Reel, Capacitance:47Μf, Voltage(Dc):6.3V, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 10%, Esr:0.8Ohm, Manufacturer Size Code:A, Failure Rate:- Rohs Compliant: Yes |Kyocera Avx TPSA476K006R0800 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel 0
  • 2,133 $0.2910
$0.2910 Buy Now
DISTI # 478-3079-1-ND
DigiKey CAP TANT 47UF 10% 6.3V 1206 Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) 26763
In Stock
  • 1 $0.7500
  • 10 $0.4690
  • 50 $0.3592
  • 100 $0.3255
  • 500 $0.2685
  • 1,000 $0.2509
  • 2,000 $0.2412
  • 4,000 $0.2290
  • 6,000 $0.2229
  • 10,000 $0.2161
  • 14,000 $0.2122
  • 20,000 $0.2084
  • 24,000 $0.2066
  • 48,000 $0.2005
$0.2005 / $0.7500 Buy Now
DISTI # TPSA476K006R0800
Avnet Americas Surface Mount Tantalum Capacitor, 47 ?F, 6.3 V, 1206 [3216 Metric], ? 10%, 0.8 ohm, A - Tape and Reel (Alt: TPSA476K006R0800) COO: El Salvador RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Tape & Reel 14000
  • 2,000 $0.1816
  • 4,000 $0.1807
  • 8,000 $0.1797
  • 16,000 $0.1788
  • 32,000 $0.1779
$0.1779 / $0.1816 Buy Now
DISTI # 581-TPSA476K006R0800
Mouser Electronics Tantalum Capacitors - Solid SMD 6.3V 47uF 10% 1206 E SR= 800 mOhm RoHS: Compliant 3256
  • 1 $1.0700
  • 10 $0.7260
  • 100 $0.5290
  • 500 $0.4380
  • 1,000 $0.4080
  • 2,000 $0.3660
$0.3660 / $1.0700 Buy Now
DISTI # 70001326
RS CAPACITOR, TANTALUM, CAP 47 UF, TOL 10%, VOL-RTG 6.3 VDC, SMT, 3216, ESR 800 MOHMS, CT Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk 1821
  • 1 $0.1900
$0.1900 Buy Now
DISTI # 70001981
RS CAPACITOR, TANTALUM, CAP 47UF, TOL 10%, SMTLOW ESR, VOL-RTG 6.3V, 3216-18, TR Min Qty: 2000 Package Multiple: 1 Container: Bulk 0
  • 2,000 $0.3000
  • 4,000 $0.2800
  • 6,000 $0.2600
$0.2600 / $0.3000 RFQ
Future Electronics TPS Series 47 µF 6.3 V 10 % 1206 (3216 Metric) Molded Tantalum Capacitor RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks Container: Reel 6000
Reel
  • 2,000 $0.1940
  • 4,000 $0.1910
  • 6,000 $0.1900
  • 8,000 $0.1890
  • 10,000 $0.1860
$0.1860 / $0.1940 Buy Now
Bristol Electronics   1352
RFQ
Quest Components TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 6.3V, 10% +TOL, 10% -TOL, 47UF, SURFACE MOUNT, 1206 2336
  • 1 $1.0000
  • 112 $0.3000
  • 1,334 $0.2000
$0.2000 / $1.0000 Buy Now
Quest Components TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 6.3V, 10% +TOL, 10% -TOL, 47UF, SURFACE MOUNT, 1206 1377
  • 1 $0.3528
  • 256 $0.1646
  • 1,216 $0.1470
$0.1470 / $0.3528 Buy Now
Quest Components TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 6.3V, 10% +TOL, 10% -TOL, 47UF, SURFACE MOUNT, 1206 527
  • 1 $0.6000
  • 43 $0.3600
  • 168 $0.3000
$0.3000 / $0.6000 Buy Now
DISTI # TPSA476K006R0800
TTI Tantalum Capacitors - Solid SMD 6.3V 47uF 10% 1206 E SR= 800 mOhm RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel Americas - 128000
In Stock
  • 2,000 $0.2410
  • 4,000 $0.2290
  • 6,000 $0.2230
  • 10,000 $0.2160
$0.2160 / $0.2410 Buy Now
DISTI # TPSA476K006R0800.
TTI Tantalum Capacitors - Solid SMD 47UF 6V 10% RoHS: Compliant pbFree: Pb-Free Min Qty: 25 Package Multiple: 25 Container: Cut Tape Americas - 1575
In Stock
  • 25 $0.4655
$0.4655 Buy Now
DISTI # TPSA476K006R0800
TME Capacitor: tantalum, low ESR, 47uF, 6.3VDC, SMD, A, 1206, ±10%, TPS Min Qty: 1 2313
  • 1 $0.6500
  • 10 $0.4710
  • 100 $0.3200
  • 500 $0.2440
  • 1,000 $0.2180
  • 2,000 $0.1950
  • 4,000 $0.1740
  • 6,000 $0.1650
  • 10,000 $0.1630
$0.1630 / $0.6500 Buy Now
DISTI # TPSA476K006R0800
Avnet Abacus Surface Mount Tantalum Capacitor 47 F 63 V 1206 3216 Metric 10 08 ohm A - Tape and Reel (Alt: TPSA476K006R0800) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 14 Weeks, 0 Days Container: Tape & Reel Abacus - 14000
Buy Now
DISTI # TPSA476K006R0800
Avnet Asia Surface Mount Tantalum Capacitor, 47 ?F, 6.3 V, 1206 [3216 Metric], ? 10%, 0.8 ohm, A (Alt: TPSA476K006R0800) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 12 Weeks, 0 Days 0
RFQ
LCSC 47uF 6.3V 800m100kHz 10% CASE-A-3216-18(mm) Tantalum Capacitors RoHS 1855
  • 5 $0.2560
  • 50 $0.2032
  • 150 $0.1806
  • 500 $0.1524
  • 2,000 $0.1398
  • 4,000 $0.1323
$0.1323 / $0.2560 Buy Now

US Tariff Estimator: TPSA476K006R0800 by Kyocera AVX Components

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

TPSA476K006R0800
Kyocera AVX Components
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for TPSA476K006R0800

TPSA476K006R0800 CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

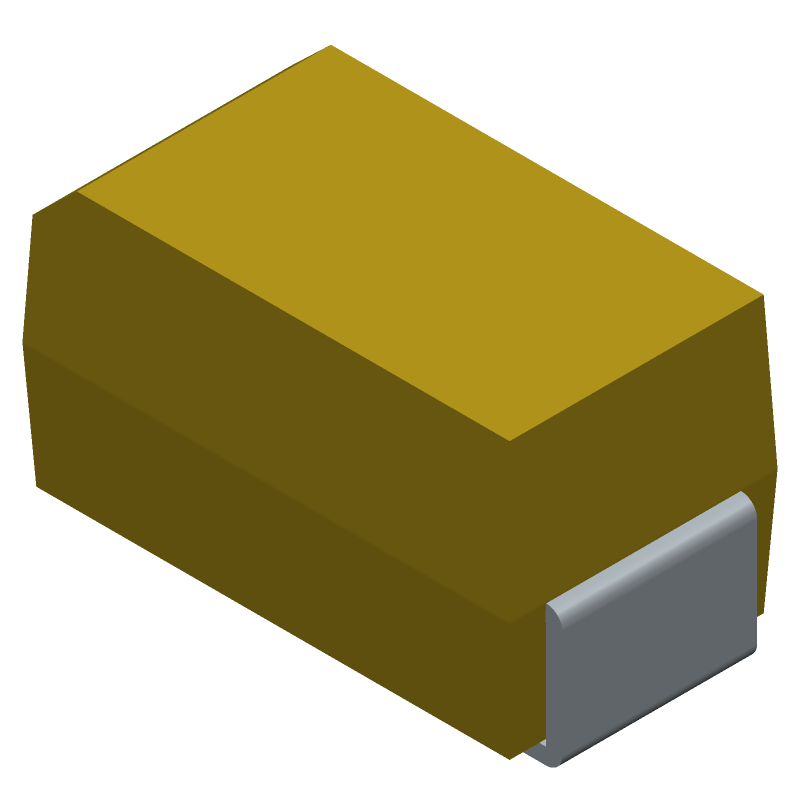

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TPSA476K006R0800 Part Data Attributes

Parametric Data
TPSA476K006R0800 Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
TPSA476K006R0800 Kyocera AVX Components Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 1206, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 13 Weeks
Additional Feature Esr And Ripple Current Is Measured At 100khz
Capacitance 47 µF
Capacitor Type Tantalum Capacitor
Dielectric Material Tantalum (Dry/Solid)
ESR 800 MΩ
Height 1.6 Mm
JESD-609 Code e3
Leakage Current 0.0028 Ma
Length 3.2 Mm
Mounting Feature Surface Mount
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method Tr, Plastic, 7 Inch
Polarity Polarized
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 6.3 V
Ripple Current 122 Ma
Size Code 1206
Surface Mount Yes
Tan Delta 0.1
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape J Bend
Width 1.6 Mm

Alternate Parts for TPSA476K006R0800

This table gives cross-reference parts and alternative options found for TPSA476K006R0800. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TPSA476K006R0800, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TAJA476K006RNJ Kyocera AVX Components $0.1754 Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 1206, CHIP TPSA476K006R0800 vs TAJA476K006RNJ
T491A476K006ATAUTO KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid) TPSA476K006R0800 vs T491A476K006ATAUTO
TMCMA0J476KTRF Holy Stone Enterprise Co Ltd Check for Price Tantalum Capacitor, Polarized, Tantalum, 6.3V, 10% +Tol, 10% -Tol, 47uF, 1206, TPSA476K006R0800 vs TMCMA0J476KTRF
TAJA476K006BNJV Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum, 6.3V, 10% +Tol, 10% -Tol, 47uF, 1206, TPSA476K006R0800 vs TAJA476K006BNJV
267E6301476KL534 Matsuo Electric Co Ltd Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT TPSA476K006R0800 vs 267E6301476KL534
TP3A476K6R3T1600AS Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 1206, CHIP TPSA476K006R0800 vs TP3A476K6R3T1600AS
SK5-0J476K-RAA ELNA America Inc Check for Price CAP,TANTALUM / TA2O5,47UF,6.3VDC,10% -TOL,10% +TOL TPSA476K006R0800 vs SK5-0J476K-RAA
T491A476K006AN KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (dry/solid), TPSA476K006R0800 vs T491A476K006AN
TP3A476K6R3F1600AS Vishay Intertechnologies Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 1206, CHIP TPSA476K006R0800 vs TP3A476K6R3F1600AS
TCSCS0J476KACR Samsung Electro-Mechanics Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 6.3V, 10% +Tol, 10% -Tol, 47uF, Surface Mount, 1206, CHIP TPSA476K006R0800 vs TCSCS0J476KACR
equivalents icon

TPSA476K006R0800 Related Parts

TPSA476K006R0800 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds, with a peak temperature of 240°C.

  • Yes, the TPSA476K006R0800 capacitor is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.

  • The MSL of the TPSA476K006R0800 is 3, which means it can withstand exposure to moisture for up to 168 hours.

  • Yes, the TPSA476K006R0800 is designed to withstand high-vibration environments, making it suitable for use in automotive, aerospace, and other high-reliability applications.

  • The ESR of the TPSA476K006R0800 is 0.08 ohms, which is relatively low and makes it suitable for high-frequency applications.
