Part Details for TS331ILT by STMicroelectronics
Results Overview of TS331ILT by STMicroelectronics
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TS331ILT Information
TS331ILT by STMicroelectronics is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TS331ILT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Future Electronics | TS331 Series 5 V 100 nA SMT Single General Purpose Comparator - SOT-23-5 RoHS: Compliant pbFree: Yes Min Qty: 6000 Package Multiple: 3000 Lead time: 30 Weeks Container: Reel | 0Reel |
|
$0.6000 | Buy Now |
|
DISTI #
93259085
|
Verical | Comparator Single R-R I/P ±2.5V/5V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 | Americas - 1380 |
|
$0.5513 / $1.1308 | Buy Now |
|
DISTI #
511-TS331ILT
|
Mouser Electronics | Analog Comparators Micropower 20uA 1.6V to 5V RtoR RoHS: Compliant | 14999 |
|
$0.6500 / $1.4200 | Buy Now |
|
DISTI #
P02:6590_01986295
|
Arrow Electronics | Comparator Single R-R I/P ±2.5V/5V 5-Pin SOT-23 T/R COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks Container: Cut Strips | Asia - 1380 |
|
$0.5490 / $1.1259 | Buy Now |
|
|
STMicroelectronics | Micropower low-voltage rail-to-rail comparator COO: Taiwan Min Qty: 1 | 14974 |
|
$0.7500 / $1.4200 | Buy Now |
|
DISTI #
P02:6590_01986295
|
Arrow Electronics | Comparator Single R-R I/P ±2.5V/5V 5-Pin SOT-23 T/R COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks Container: Cut Strips | Asia - 1380 |
|
$0.5490 / $1.1259 | Buy Now |
|
DISTI #
93259085
|
Verical | Comparator Single R-R I/P ±2.5V/5V 5-Pin SOT-23 T/R COO: China RoHS: Compliant Min Qty: 3 Package Multiple: 1 | Americas - 1380 |
|
$0.5513 / $1.1308 | Buy Now |
|
DISTI #
93259085
|
Verical | Comparator Single R-R I/P ±2.5V/5V 5-Pin SOT-23 T/R COO: China RoHS: Compliant Min Qty: 3 Package Multiple: 1 | Americas - 1380 |
|
$0.5513 / $1.1308 | Buy Now |
|
DISTI #
TS331ILT
|
TME | IC: comparator, low-power, Cmp: 1, 1.6÷5V, SMT, SOT23-5, reel,tape Min Qty: 1 | 50 |
|
$0.4100 / $0.5000 | Buy Now |
|
|
Ameya Holding Limited | TS331 Series 5 V 100 nA Surface Mount Single General Purpose Comparator - SOT-23 | 12100 |
|
RFQ |
US Tariff Estimator: TS331ILT by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
TS331ILT CAD Models
-
Part Symbol
-
Footprint
-

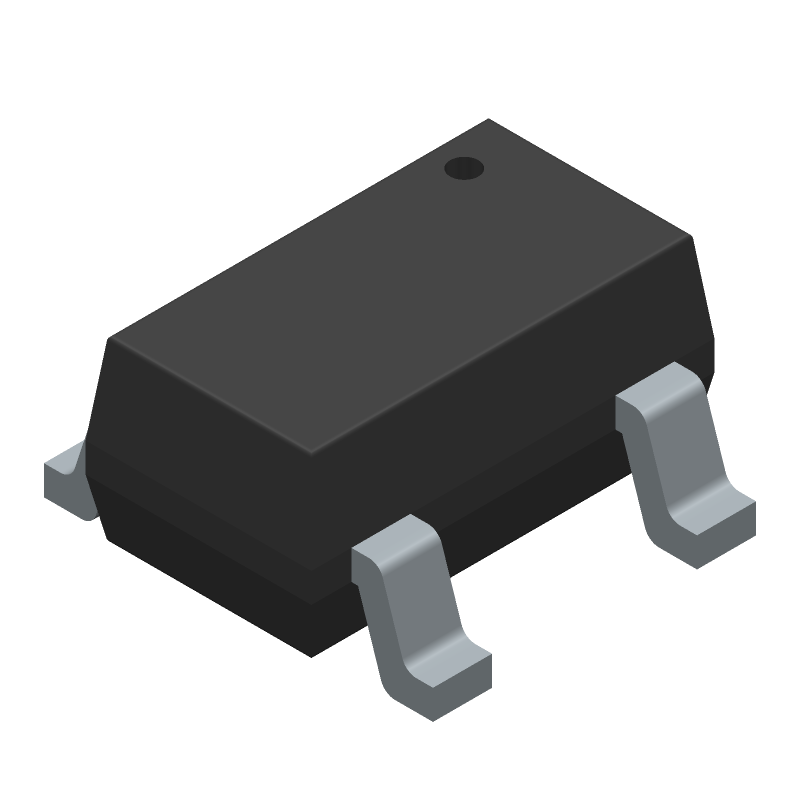

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TS331ILT Part Data Attributes
|
|
TS331ILT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TS331ILT
STMicroelectronics
Comparator, 1 Func, 6000uV Offset-Max, 420ns Response Time, PDSO5
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | SOT-23 | |
| Package Description | 5 Pin | |
| Pin Count | 5 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Factory Lead Time | 16 Weeks | |
| Amplifier Type | Comparator | |
| Average Bias Current-Max (IIB) | 0.1 µA | |
| Common-mode Reject Ratio-Nom | 68 Db | |
| Input Offset Voltage-Max | 6000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Type | Open-Drain | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Low Profile, Shrink Pitch | |
| Packing Method | Tr | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Response Time-Nom | 420 Ns | |
| Seated Height-Max | 1.45 Mm | |
| Supply Current-Max | 0.038 Ma | |
| Supply Voltage Limit-Max | 5.5 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | Yes | |
| Temperature Grade | Automotive | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.6 Mm |
TS331ILT Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the TS331ILT is -40°C to 125°C.
-
The TS331ILT requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to ensure a stable voltage supply.
-
The maximum current consumption of the TS331ILT is typically around 10mA, but this can vary depending on the specific application and operating conditions.
-
The TS331ILT can be configured for I2C or SPI communication by setting the appropriate pins high or low during power-up. Refer to the datasheet for specific pin configurations.
-
The internal oscillator on the TS331ILT provides a clock signal for the device, allowing it to operate without an external clock source.
