| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TUSB4041IPAPRQ1 | Texas Instruments | $3.6183 | USB Bus Controller, CMOS, PQFP64 | TUSB4041IPAP vs TUSB4041IPAPRQ1 |
| TUSB4041IPAPQ1 | Texas Instruments | $4.6449 | USB Bus Controller, CMOS, PQFP64 | TUSB4041IPAP vs TUSB4041IPAPQ1 |
| TUSB4041IPAPR | Texas Instruments | $4.6496 | USB Bus Controller, CMOS, PQFP64 | TUSB4041IPAP vs TUSB4041IPAPR |
Part Details for TUSB4041IPAP by Texas Instruments
Results Overview of TUSB4041IPAP by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (3 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (3 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TUSB4041IPAP Information
TUSB4041IPAP by Texas Instruments is a Bus Controller.
Bus Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TUSB4041IPAP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-46550-5-ND
|
DigiKey | IC USB 2.0 4PORT HUB 64HTQFP Min Qty: 1 Container: Tube |
0 Tube |
|
$4.9485 / $8.3500 | Buy Now |
|
DISTI #
595-TUSB4041IPAP
|
Mouser Electronics | USB Interface IC Four-Port USB 2.0 Hu b 64-HTQFP-40to 85 A 595-TUSB4041IPAPR RoHS: Compliant | 965 |
|
$4.8600 / $8.5200 | Buy Now |
|
|
Bristol Electronics | Full Speed Programmable USB Controller USB 2.0 3.3V Tray 64-Pin HTQFP EP | 160 |
|
RFQ | |
|
|
Chip Stock | 4-port high-speed 480-Mbps USB 2.0 hub 64-HTQFP -40 to 85 | 8800 |
|
RFQ | |
|
|
Vyrian | Interface Circuit, PQFP64 | 6449 |
|
RFQ | |
|
|
Win Source Electronics | IC USB 2.0 4PORT HUB 64HTQFP | 4000 |
|
$11.1387 / $16.7081 | Buy Now |
US Tariff Estimator: TUSB4041IPAP by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
TUSB4041IPAP CAD Models
-

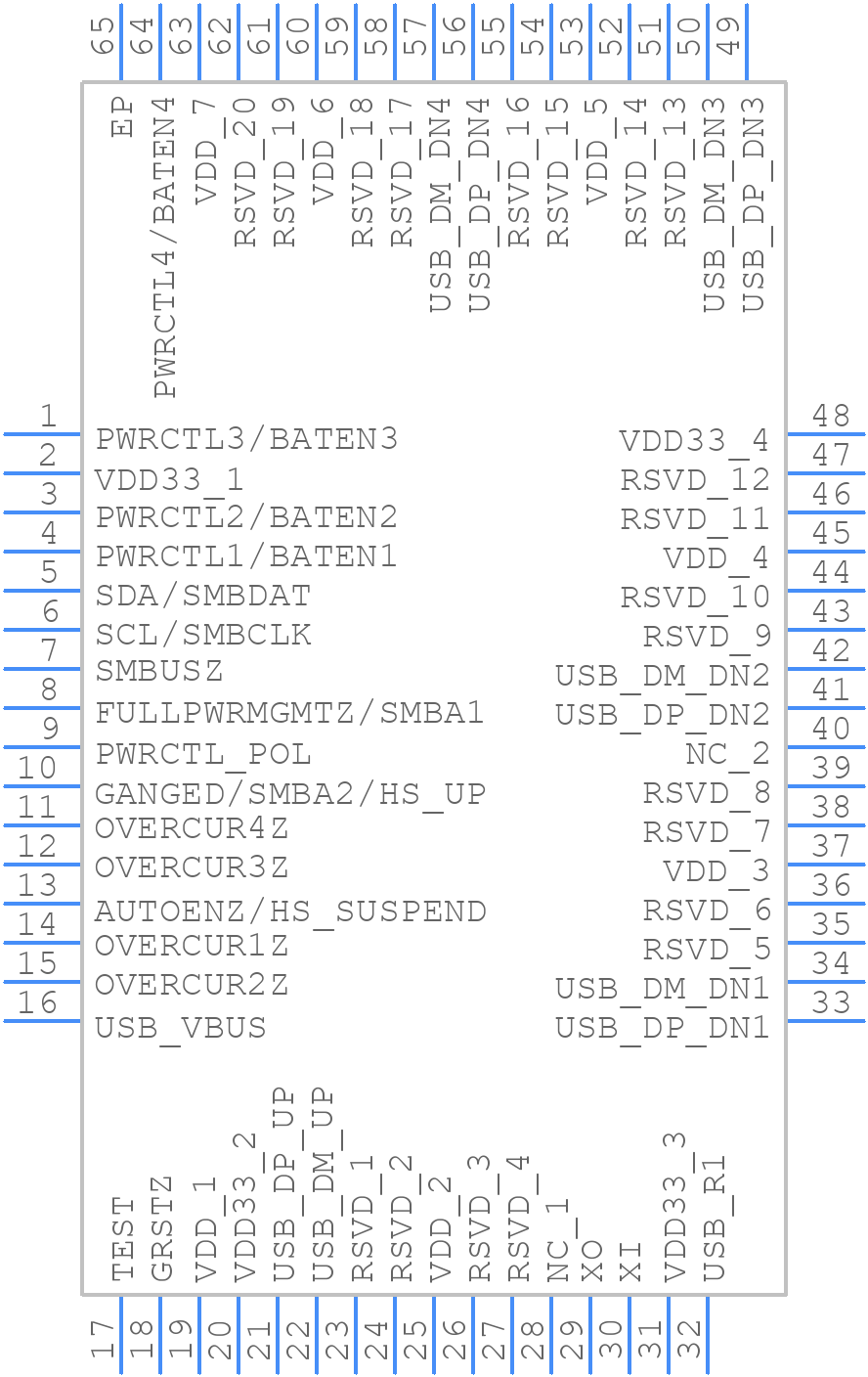

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
TUSB4041IPAP Part Data Attributes
|
|
TUSB4041IPAP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TUSB4041IPAP
Texas Instruments
USB Bus Controller, CMOS, PQFP64
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Additional Feature | Also Operates At 3.3 Supply | |
| Address Bus Width | ||
| Bus Compatibility | I2c, Smbus, Usb | |
| Clock Frequency-Max | 24 Mhz | |
| Data Transfer Rate-Max | 0.0125 Mbps | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 10 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | HTFQFP | |
| Package Equivalence Code | TQFP64,.47SQ | |
| Package Shape | Square | |
| Package Style | Flatpack, Heat Sink/Slug, Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 Mm | |
| Supply Current-Max | 86 Ma | |
| Supply Voltage-Max | 1.26 V | |
| Supply Voltage-Min | 0.99 V | |
| Supply Voltage-Nom | 1.1 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.5 Mm | |
| Terminal Position | Quad | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 Mm | |
| uPs/uCs/Peripheral ICs Type | Bus Controller, Universal Serial Bus |
