UC2842ADW Information
UC2842ADW by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| UC2842ADWTR | Texas Instruments | Current Mode PWM Controller 16-SOIC -40 to 85 | |
| UC2842ADW | Texas Instruments | Current Mode PWM Controller 16-SOIC -40 to 85 |
Price & Stock for UC2842ADW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-UC2842ADW-ND
|
DigiKey | IC PWM BOOST FLYBACK CM 16SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube |
292 In Stock |
|
$1.0755 / $2.1500 | Buy Now |
|
DISTI #
595-UC2842ADW
|
Mouser Electronics | Switching Controllers Current-Mode PWM Con troller A 595-UC284 A 595-UC2842ADWTR RoHS: Compliant | 287 |
|
$0.8960 / $1.8300 | Buy Now |
|
DISTI #
86041026
|
Verical | Current Mode PWM Controller -0.1V to 11V 1A 500kHz 16-Pin SOIC Tube RoHS: Compliant Min Qty: 276 Package Multiple: 1 Date Code: 1101 | Americas - 8680 |
|
$0.8448 / $1.3625 | Buy Now |
|
DISTI #
86049816
|
Verical | Current Mode PWM Controller -0.1V to 11V 1A 500kHz 16-Pin SOIC Tube RoHS: Compliant Min Qty: 276 Package Multiple: 1 Date Code: 0401 | Americas - 2383 |
|
$0.8448 / $1.3625 | Buy Now |
|
|
Rochester Electronics | Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDSO16 RoHS: Compliant Status: Active Min Qty: 1 | 11503 |
|
$0.6758 / $1.0900 | Buy Now |
|
DISTI #
86041026
|
Verical | Current Mode PWM Controller -0.1V to 11V 1A 500kHz 16-Pin SOIC Tube RoHS: Compliant Min Qty: 276 Package Multiple: 1 Date Code: 1101 | Americas - 8680 |
|
$0.8448 / $1.3625 | Buy Now |
|
DISTI #
86049816
|
Verical | Current Mode PWM Controller -0.1V to 11V 1A 500kHz 16-Pin SOIC Tube RoHS: Compliant Min Qty: 276 Package Multiple: 1 Date Code: 0401 | Americas - 2383 |
|
$0.8448 / $1.3625 | Buy Now |
|
DISTI #
86041026
|
Verical | Current Mode PWM Controller -0.1V to 11V 1A 500kHz 16-Pin SOIC Tube RoHS: Compliant Min Qty: 276 Package Multiple: 1 Date Code: 1101 | Americas - 8680 |
|
$0.8448 / $1.3625 | Buy Now |
|
DISTI #
86049816
|
Verical | Current Mode PWM Controller -0.1V to 11V 1A 500kHz 16-Pin SOIC Tube RoHS: Compliant Min Qty: 276 Package Multiple: 1 Date Code: 0401 | Americas - 2383 |
|
$0.8448 / $1.3625 | Buy Now |
US Tariff Estimator: UC2842ADW by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for UC2842ADW
UC2842ADW CAD Models
-

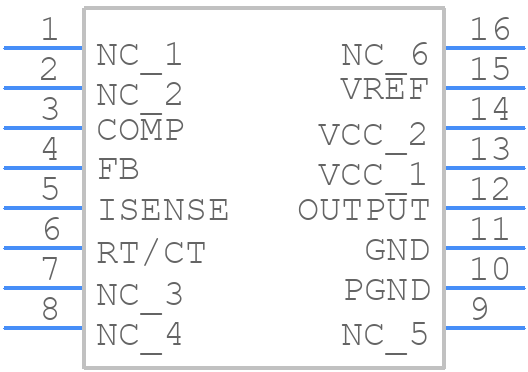

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
UC2842ADW Part Data Attributes
|
|
UC2842ADW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
UC2842ADW
Texas Instruments
Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, PDSO16
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Analog IC - Other Type | Switching Controller | |
| Control Mode | Current-Mode | |
| Control Technique | Pulse Width Modulation | |
| Input Voltage-Max | 28 V | |
| Input Voltage-Min | 11 V | |
| Input Voltage-Nom | 15 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 10.3 Mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1 A | |
| Output Voltage-Max | 5.05 V | |
| Output Voltage-Min | 4.95 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.4 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 Mm | |
| Supply Current-Max (Isup) | 25 Ma | |
| Supply Voltage-Max (Vsup) | 28 V | |
| Supply Voltage-Min (Vsup) | 16 V | |
| Supply Voltage-Nom (Vsup) | 11 V | |
| Surface Mount | Yes | |
| Switcher Configuration | Buck-Boost | |
| Switching Frequency-Max | 500 Khz | |
| Technology | Bipolar | |
| Temperature Grade | Industrial | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 1.27 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 Mm |
