Part Details for ULN2003A by STMicroelectronics
Results Overview of ULN2003A by STMicroelectronics
- Distributor Offerings: (39 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ULN2003A Information
ULN2003A by STMicroelectronics is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ULN2003A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26M4665
|
Newark | Darlington Array 7Npn, 2003, Dip16, |Stmicroelectronics ULN2003A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 83204 |
|
$0.1690 / $0.9060 | Buy Now |
|
DISTI #
89K1130
|
Newark | Darlington Transistor Array, Npn, 7, 50V, Available Until Stocks Are Exhausted Alternative Available |Stmicroelectronics ULN2003A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 33944 |
|
$0.4940 / $1.0300 | Buy Now |
|
DISTI #
26AC5117
|
Newark | Darlington Array 7Npn, 2003, Dip16, |Stmicroelectronics ULN2003A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.3330 / $1.0500 | Buy Now |
|
DISTI #
E02:0323_00205645
|
Arrow Electronics | Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks Date Code: 2451 | Europe - 57420 |
|
$0.1872 / $0.5135 | Buy Now |
|
DISTI #
V36:1790_06568322
|
Arrow Electronics | Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube COO: China RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 30 Weeks Date Code: 2421 | Americas - 43 |
|
$0.2240 / $0.5190 | Buy Now |
|
DISTI #
511-ULN2003A
|
Mouser Electronics | Darlington Transistors Seven NPN Array RoHS: Compliant | 28784 |
|
$0.1980 / $1.2600 | Buy Now |
|
DISTI #
87813503
|
Verical | Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube RoHS: Compliant Min Qty: 39 Package Multiple: 1 Date Code: 2451 | Americas - 57408 |
|
$0.1864 / $0.2005 | Buy Now |
|
DISTI #
89522990
|
Verical | Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube RoHS: Compliant Min Qty: 31 Package Multiple: 1 Date Code: 2421 | Americas - 43 |
|
$0.2240 / $0.3174 | Buy Now |
|
|
STMicroelectronics | Seven Darlington Arrays COO: Singapore Min Qty: 1 | 29089 |
|
$0.3300 / $0.8900 | Buy Now |
|
|
Future Electronics | ULN Series 50 V 500 mA High Voltage High Current Seven Darlington Array - DIP-16 RoHS: Compliant pbFree: Yes Min Qty: 100 Package Multiple: 1 Lead time: 30 Weeks Container: Tube | 8500Tube |
|
$0.2000 / $0.2250 | Buy Now |
US Tariff Estimator: ULN2003A by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
ULN2003A CAD Models
-
Part Symbol
-
Footprint
-

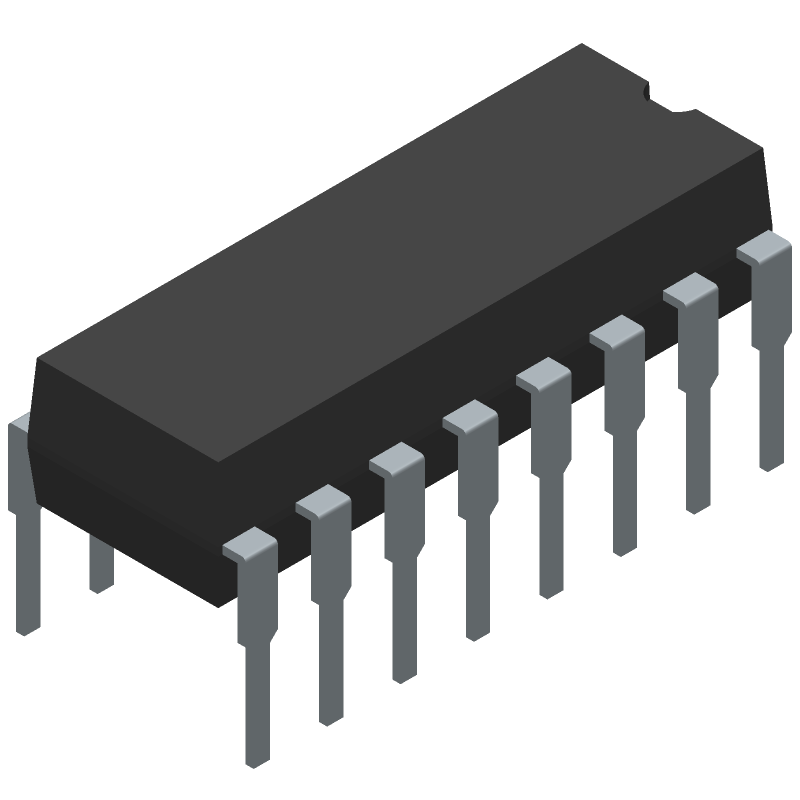

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
ULN2003A Part Data Attributes
|
|
ULN2003A
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
ULN2003A
STMicroelectronics
Buffer/Inverter Based Peripheral Driver, 7 Driver, 0.5A, PDIP16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | DIP | |
| Package Description | Dip-16 | |
| Pin Count | 16 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.60 | |
| Factory Lead Time | 10 Weeks | |
| Built-in Protections | Transient | |
| Driver Number of Bits | 7 | |
| Interface IC Type | Buffer Or Inverter Based Peripheral Driver | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e3 | |
| Length | 19.18 Mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | Open-Collector | |
| Output Current Flow Direction | Sink | |
| Output Peak Current Limit-Nom | 0.5 A | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | Rectangular | |
| Package Style | In-Line | |
| Peak Reflow Temperature (Cel) | Not Specified | |
| Seated Height-Max | 5.33 Mm | |
| Supply Voltage-Max | 3 V | |
| Surface Mount | No | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Through-Hole | |
| Terminal Pitch | 2.54 Mm | |
| Terminal Position | Dual | |
| Time@Peak Reflow Temperature-Max (s) | Not Specified | |
| Turn-off Time | 1 µS | |
| Turn-on Time | 1 µS | |
| Width | 7.87 Mm |
Resources and Additional Insights for ULN2003A
Reference Designs related to ULN2003A
-
Configurable Stepper Driver for HVAC Louver and Motor Control Reference Design
This reference design provides a flexible stepper motor system designed to drive up to two stepper motors: or 8 peripherals: while reducing the number of GPIOs needed from the host controller reducing overall cost. The system is suitable for applications requiring stepper motors or coils up to 50V: and a max current of 2.5A (with all channels  enabled). This design features multiple configurations for outputs: allowing multiple peripherals to be driven (i.e. 1 motor: 1 buzzer: 1 relay: and 2 LEDs). It is adaptable to automated louver control in Heating Ventilation and Air Conditioning (HVAC) systems as well as control of relays: buzzers: and LEDs. This concept could also be more broadly expanded to drive any number of channels for other building automation designs including louver control in smart ventilation systems: automated window blind tilting: as well as pan and tilt control for IP cameras.
-
Single-phase inverter reference design with voltage source and grid connected modes
This reference design implements single-phase inverter (DC-AC) control using the C2000â„¢ F2837xD and F28004x microcontrollers. Design supports two modes of operation for the inverter. First is the voltage source mode using an output LC filter. This control mode is typically used in uninterruptible power supplies (UPS). Second is grid connected mode with an output LCL filter: which is typically used in solar inverters. Firmware for the design is supported under the powerSUITE framework which enables adaptation using the Solution Adapter and enables tuning of the control loop using the Compensation Designer and SFRA. High-efficiency: low THD and intuitive software make this design attractive for engineers working on inverter design for UPS and alternative energy applications such as PV inverters: grid storage and micro grids.
-
Smart brake control and diagnostics reference design for servo drives and robotics
This reference design implements safe brake control functionality in servo drives as per IEC EN 61800-5-2 by providing two channel output signals to control an external holding brake. The holding brake will be latched when the power supply is cut off and released when voltage is applied to the coil. This is accomplished by enabling/disabling the smart electronic load switches that supply power to the coil. This reference design also includes diagnostic features for detecting various faults: ensuring safe operation. TIDA-01600 uses the C2000 Launchpad to generate the brake control signals and to perform the diagnostics functionality.
ULN2003A Frequently Asked Questions (FAQ)
-
Each output of the ULN2003A can handle up to 500mA of current, making it suitable for driving relays, solenoids, and other inductive loads.
-
To protect the ULN2003A from back-EMF, a freewheeling diode (such as 1N4001-1N4007) should be connected in parallel with the inductive load, with the anode connected to the load and the cathode connected to the supply voltage.
-
The ULN2003A can operate with input voltages as low as 4.5V, but it is recommended to use a minimum of 5V to ensure proper operation.
-
While the ULN2003A can be used to drive LEDs, it is not the most suitable choice due to its relatively high output voltage drop (around 1.5V). A dedicated LED driver or a transistor array with a lower voltage drop would be a better option.
-
To ensure that the ULN2003A outputs are turned off when the input is low, a pull-down resistor (around 10kΩ) should be connected between the input pin and ground to prevent the input from floating.
