Capacitors / Fixed Capacitors / VJ0805A102JXAMC
Datasheets
VJ0805A102JXAMC by:
Vishay Intertechnologies

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP

Part Details for VJ0805A102JXAMC by Vishay Intertechnologies

Results Overview of VJ0805A102JXAMC by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

VJ0805A102JXAMC Information

VJ0805A102JXAMC by Vishay Intertechnologies is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for VJ0805A102JXAMC

Part # Distributor Description Stock Price Buy
DISTI # 46C7745
Newark Capacitor, ceramic,1000Pf,50Vdc,5-% Tol,5+% Tol, c0G-Tc Code,-30,30Ppm-Tc |Vishay VJ0805A102JXAMC RoHS: Not Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Tape & Reel 0
Buy Now
DISTI # VJ0805A102JXAMC
Avnet Americas - Tape and Reel (Alt: VJ0805A102JXAMC) COO: Israel RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 9 Weeks, 0 Days Container: Tape & Reel 0
  • 6,000 $0.0647
  • 12,000 $0.0644
  • 18,000 $0.0640
  • 30,000 $0.0637
  • 60,000 $0.0634
$0.0634 / $0.0647 Buy Now
DISTI # 77-VJ0805A102JXAMC
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 1000pF 50volts 5% RoHS: Compliant 6789
  • 1 $0.3200
  • 10 $0.1370
  • 100 $0.1210
  • 500 $0.0960
  • 1,000 $0.0880
  • 3,000 $0.0770
  • 6,000 $0.0760
  • 9,000 $0.0660
  • 24,000 $0.0640
$0.0640 / $0.3200 Buy Now
Future Electronics 0805 1nF 50 V ±5 % Tolerance C0G/NP0 SMT Multilayer Ceramic Chip Capacitor RoHS: Compliant pbFree: Yes Min Qty: 6000 Package Multiple: 3000 Lead time: 9 Weeks Container: Reel 0
Reel
  • 3,000 $0.0571
  • 6,000 $0.0562
  • 9,000 $0.0556
  • 15,000 $0.0549
  • 30,000 $0.0535
$0.0535 / $0.0571 Buy Now
DISTI # VJ0805A102JXAMC
TME Capacitor: ceramic, 1nF, 50V, C0G (NP0), ±5%, SMD, 0805 Min Qty: 1 1215
  • 1 $0.3000
  • 3,000 $0.0731
  • 6,000 $0.0662
  • 9,000 $0.0615
  • 12,000 $0.0592
  • 15,000 $0.0580
  • 24,000 $0.0557
$0.0557 / $0.3000 Buy Now
DISTI # VJ0805A102JXAMC
Avnet Abacus - Tape and Reel (Alt: VJ0805A102JXAMC) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Tape & Reel Abacus - 0
Buy Now

US Tariff Estimator: VJ0805A102JXAMC by Vishay Intertechnologies

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

VJ0805A102JXAMC
Vishay Intertechnologies
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for VJ0805A102JXAMC

VJ0805A102JXAMC CAD Models

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

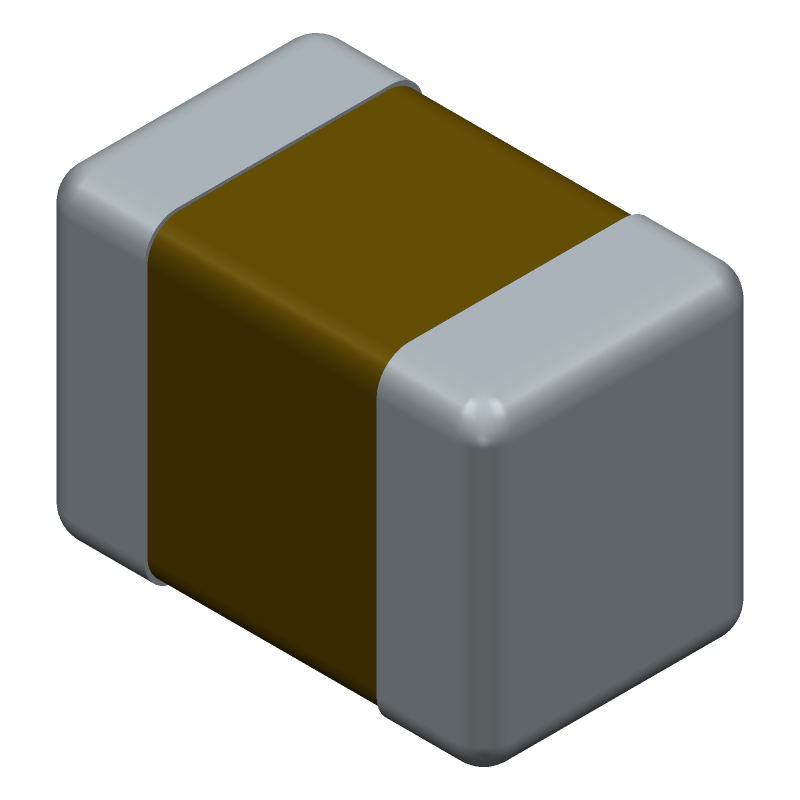

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

VJ0805A102JXAMC Part Data Attributes

Parametric Data
VJ0805A102JXAMC Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
VJ0805A102JXAMC Vishay Intertechnologies Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Package Description Chip
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 9 Weeks
Capacitance 0.001 µF
Capacitor Type Ceramic Capacitor
Dielectric Material Ceramic
Height 1.45 Mm
JESD-609 Code e3
Length 2 Mm
Mounting Feature Surface Mount
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Shape Rectangular Package
Package Style Smt
Packing Method Tr, Paper, 7 Inch
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 50 V
Size Code 0805
Surface Mount Yes
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel Ppm/°C
Terminal Finish Matte Tin (Sn) - With Nickel (Ni) Barrier
Terminal Shape Wraparound
Width 1.25 Mm

Alternate Parts for VJ0805A102JXAMC

This table gives cross-reference parts and alternative options found for VJ0805A102JXAMC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of VJ0805A102JXAMC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
VJ0805A102JXAAC Vishay Intertechnologies $0.1143 Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP VJ0805A102JXAMC vs VJ0805A102JXAAC
VJ0805A102JXAAP Vishay Intertechnologies Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP VJ0805A102JXAMC vs VJ0805A102JXAAP
GA0805D102JEAAJ34G Vishay Intertechnologies Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP VJ0805A102JXAMC vs GA0805D102JEAAJ34G
VJ0805A102JFAAP Vishay Vitramon Check for Price Capacitor, Ceramic, Chip, General Purpose, 1000pF, 50V, ±5%, C0G/NP0, 0805 (2012 mm), 0.057"T, -55º ~ +125ºC, 13" Reel/Paper Tape VJ0805A102JXAMC vs VJ0805A102JFAAP
GA0805D102JXAAJ31M Vishay Intertechnologies Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP VJ0805A102JXAMC vs GA0805D102JXAAJ31M
VJ0805A102JXAAC Vishay Vitramon Check for Price Capacitor, Ceramic, Chip, General Purpose, 1000pF, 50V, ±5%, C0G/NP0, 0805 (2012 mm), 0.057"T, -55º ~ +125ºC, 7" Reel/Paper Tape VJ0805A102JXAMC vs VJ0805A102JXAAC
GA0805D102JXAAR31M Vishay Intertechnologies Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP VJ0805A102JXAMC vs GA0805D102JXAAR31M
GA0805A102JEAAI34G Vishay Intertechnologies Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP VJ0805A102JXAMC vs GA0805A102JEAAI34G
GA0805A102JXAAP31G Vishay Intertechnologies Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP VJ0805A102JXAMC vs GA0805A102JXAAP31G
VJ0805A102JFAAO Vishay Intertechnologies Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.001uF, Surface Mount, 0805, CHIP VJ0805A102JXAMC vs VJ0805A102JFAAO
equivalents icon

VJ0805A102JXAMC Related Parts

VJ0805A102JXAMC Frequently Asked Questions (FAQ)

  • The recommended land pattern for VJ0805A102JXAMC is a rectangular pad with a size of 0.8 mm x 1.2 mm, with a non-solder mask defined (NSMD) pad shape. This is to ensure proper soldering and to prevent solder bridging.

  • Yes, VJ0805A102JXAMC is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating and to follow the recommended storage and handling procedures.

  • To prevent damage, handle VJ0805A102JXAMC by the edges, avoid touching the component's surface, and use an anti-static wrist strap or mat. Also, ensure that the component is properly seated on the PCB and that the soldering process is done according to the recommended profile.

  • Yes, VJ0805A102JXAMC is compatible with lead-free soldering. It is designed to meet the requirements of the RoHS directive and can be soldered using lead-free solder alloys such as SAC305 or Sn96.5Ag3Cu0.5.

  • The equivalent EIA code for VJ0805A102JXAMC is 0805. This code refers to the component's physical dimensions, which are 0.8 mm x 1.2 mm.
