XIO2001ZWS Information
XIO2001ZWS by Texas Instruments is a Bus Controller.
Bus Controllers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| XIO2001ZWS | Texas Instruments | PCI Express® (PCIe®) to PCI bus translation bridge 169-NFBGA 0 to 70 |
Price & Stock for XIO2001ZWS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-XIO2001ZWS-ND
|
DigiKey | PCI EXPRESS (PCIE) TO PCI B Min Qty: 1 Container: Tray |
541 Tray |
|
$4.3425 / $7.4000 | Buy Now |
|
DISTI #
595-XIO2001ZWS
|
Mouser Electronics | PCI Interface IC PCI Express®, (PC Ie®, ) to PCI bus RoHS: Compliant | 741 |
|
$4.2600 / $7.4000 | Buy Now |
|
|
Chip Stock | PCI EXPRESS (PCIE) TO PCI B PCI Express to PCI Translation Bridge Interface 169-NFBGA (12x12) | 3500 |
|
RFQ | |
|
|
Win Source Electronics | PCI EXPRESS (PCIE) TO PCI B / PCI Express to PCI Translation Bridge Interface 169-NFBGA (12x12) | 6400 |
|
$4.9926 / $7.4888 | Buy Now |
US Tariff Estimator: XIO2001ZWS by Texas Instruments
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
XIO2001ZWS CAD Models
-

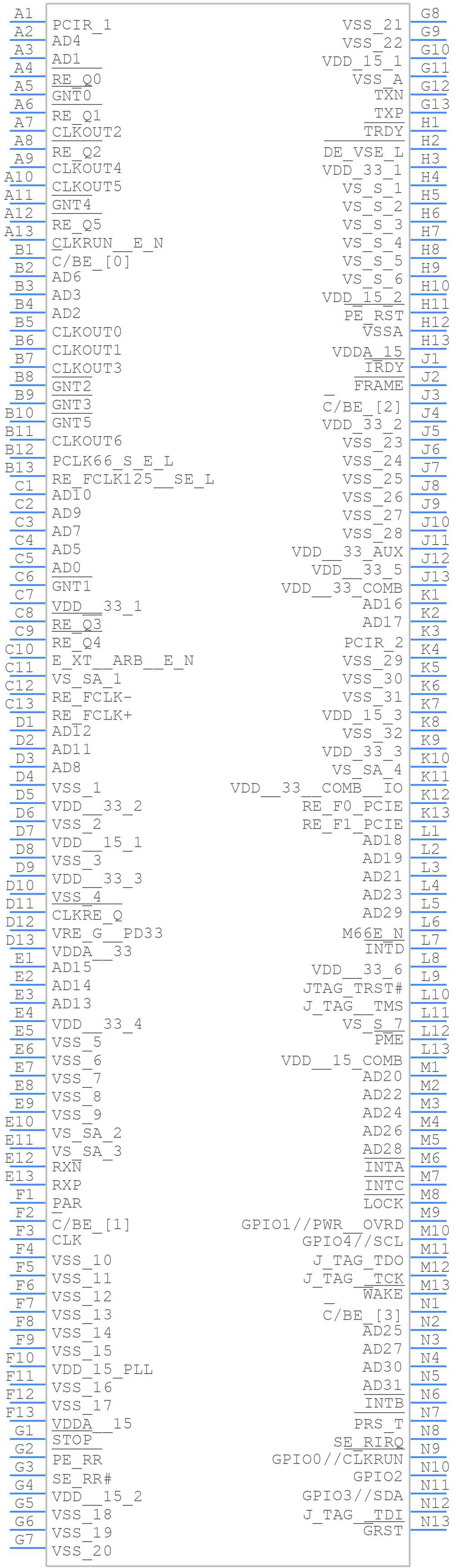

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
XIO2001ZWS Part Data Attributes
|
|
XIO2001ZWS
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
XIO2001ZWS
Texas Instruments
PCI Bus Controller, CMOS, PBGA169
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Package Description | Lfbga-169 | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.90 | |
| Address Bus Width | 32 | |
| Bus Compatibility | Pci | |
| Clock Frequency-Max | 125 Mhz | |
| Data Transfer Rate-Max | 250 Mbps | |
| External Data Bus Width | 32 | |
| JESD-30 Code | S-PBGA-B169 | |
| JESD-609 Code | e1 | |
| Length | 12 Mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 169 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | Plastic/Epoxy | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA169,13X13,32 | |
| Package Shape | Square | |
| Package Style | Grid Array, Low Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.4 Mm | |
| Supply Voltage-Max | 1.65 V | |
| Supply Voltage-Min | 1.35 V | |
| Supply Voltage-Nom | 1.5 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Commercial | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | Ball | |
| Terminal Pitch | 0.8 Mm | |
| Terminal Position | Bottom | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 12 Mm | |
| uPs/uCs/Peripheral ICs Type | Bus Controller, Pci |
