AD5270BRMZ-20 by:
Analog Devices Inc

Digital Potentiometer, 1 Func, 20000ohm, 3-wire Serial Control Interface, 1024 Positions, PDSO10

Part Details for AD5270BRMZ-20 by Analog Devices Inc

Results Overview of AD5270BRMZ-20 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Industrial Automation Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

AD5270BRMZ-20 Information

AD5270BRMZ-20 by Analog Devices Inc is a Digital Potentiometer.
Digital Potentiometers are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for AD5270BRMZ-20

Part # Distributor Description Stock Price Buy
DISTI # 60AK6349
Newark Digital Rheostat, Single, 1024 Step, End To End Resistance:20Kohm, No. Of Pots:Single, Control Interface:Serial, Spi, Track Taper:Linear, Resistance Tolerance:± 1%, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, No. Of Pins:10Pinsrohs Compliant: Yes |Analog Devices AD5270BRMZ-20 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 233
  • 1 $6.9500
  • 10 $4.6000
  • 25 $4.1100
  • 50 $3.6300
  • 100 $3.3100
  • 250 $2.9700
  • 500 $2.7700
$2.7700 / $6.9500 Buy Now
DISTI # 505-AD5270BRMZ-20-ND
DigiKey IC DGT RHE 20KOHM 1024TAP 10MSOP Min Qty: 1 Lead time: 10 Weeks Container: Tube 379
In Stock
  • 1 $5.2300
  • 10 $3.9870
  • 50 $3.4910
  • 100 $3.3374
  • 250 $3.1752
  • 500 $3.0774
  • 1,000 $2.9970
  • 2,500 $2.9120
$2.9120 / $5.2300 Buy Now
DISTI # 584-AD5270BRMZ-20
Mouser Electronics Digital Potentiometer ICs 1024tap 5v 50tp, 1 R-tol MSOP SPI I.C. RoHS: Compliant 512
  • 1 $6.7500
  • 10 $4.4800
  • 50 $3.5100
  • 100 $3.2000
  • 250 $2.8800
  • 500 $2.7900
  • 1,000 $2.6800
$2.6800 / $6.7500 Buy Now
DISTI # V36:1790_06207246
Arrow Electronics Digital Potentiometer 20kOhm 1024POS Non-Volatile Linear 10-Pin MSOP Tube COO: Taiwan RoHS: Compliant Min Qty: 200 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2324 Americas - 1
  • 200 $2.5080
$2.5080 Buy Now
Analog Devices Inc 1024tap 5v 50tp, 1 R-tol MSOP Package Multiple: 50 1779
  • 1 $6.7500
  • 10 $4.4740
  • 100 $3.2095
  • 250 $2.8801
  • 500 $2.6875
  • 1,000 $1.9300
$1.9300 / $6.7500 Buy Now
DISTI # 52538114
Verical Digital Potentiometer 20kOhm 1024POS Non-Volatile Linear 10-Pin MSOP Tube RoHS: Compliant Min Qty: 200 Package Multiple: 200 Americas - 1600
  • 200 $2.6592
$2.6592 Buy Now
DISTI # V36:1790_06207246
Arrow Electronics Digital Potentiometer 20kOhm 1024POS Non-Volatile Linear 10-Pin MSOP Tube COO: Taiwan RoHS: Compliant Min Qty: 200 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2324 Americas - 1
  • 200 $2.5080
$2.5080 Buy Now
DISTI # 52538114
Verical Digital Potentiometer 20kOhm 1024POS Non-Volatile Linear 10-Pin MSOP Tube RoHS: Compliant Min Qty: 200 Package Multiple: 200 Americas - 1600
  • 200 $2.6592
$2.6592 Buy Now
DISTI # V36:1790_06207246
Arrow Electronics Digital Potentiometer 20kOhm 1024POS Non-Volatile Linear 10-Pin MSOP Tube COO: Taiwan RoHS: Compliant Min Qty: 200 Package Multiple: 50 Lead time: 10 Weeks Date Code: 2324 Americas - 1
  • 200 $2.5080
$2.5080 Buy Now
DISTI # 52538114
Verical Digital Potentiometer 20kOhm 1024POS Non-Volatile Linear 10-Pin MSOP Tube RoHS: Compliant Min Qty: 200 Package Multiple: 200 Americas - 1600
  • 200 $2.6592
$2.6592 Buy Now
Win Source Electronics Digital Potentiometer 20kOhm 1024POS Non-Volatile 10-Pin MSOP Tube / IC DGTL POT 20K 1024POS 10MSOP 10000
  • 17 $3.0349
  • 36 $2.8391
  • 55 $2.7412
  • 79 $2.5454
  • 103 $2.4475
  • 128 $2.3496
$2.3496 / $3.0349 Buy Now

US Tariff Estimator: AD5270BRMZ-20 by Analog Devices Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

AD5270BRMZ-20
Analog Devices Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for AD5270BRMZ-20

AD5270BRMZ-20 CAD Models

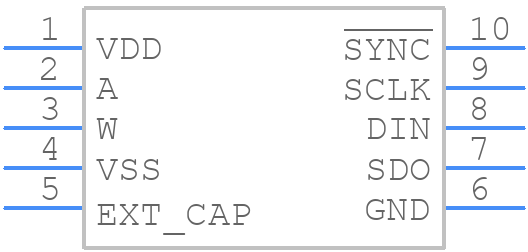

  • Part Symbol

    schematic symbol

  • Footprint

    pcb footprint

  • 3D Model

    2d presentation

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AD5270BRMZ-20 Part Data Attributes

Parametric Data
AD5270BRMZ-20 Analog Devices Inc
Buy Now Datasheet
Compare Parts:
AD5270BRMZ-20 Analog Devices Inc Digital Potentiometer, 1 Func, 20000ohm, 3-wire Serial Control Interface, 1024 Positions, PDSO10
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Part Package Code TSSOP
Package Description Tssop, Tssop10,.19,20
Pin Count 10
Manufacturer Package Code RM-10
Reach Compliance Code Compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Bandwidth-Nom 0.3 Khz
Control Interface 3-Wire Serial
Converter Type Digital Potentiometer
JESD-30 Code S-PDSO-G10
JESD-609 Code e3
Length 3 Mm
Moisture Sensitivity Level 1
Negative Supply Voltage-Nom -2.5 V
Number of Functions 1
Number of Positions 1024
Number of Terminals 10
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material Plastic/Epoxy
Package Code TSSOP
Package Equivalence Code TSSOP10,.19,20
Package Shape Square
Package Style Small Outline, Thin Profile, Shrink Pitch
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Resistance Law Linear
Resistance Tolerance-Max 1%
Resistor Terminal Voltage-Max 2.75 V
Resistor Terminal Voltage-Min -2.5 V
Seated Height-Max 1.1 Mm
Supply Voltage-Nom 2.5 V
Surface Mount Yes
Temperature Coefficient-Nom 5 Ppm/°C
Temperature Grade Automotive
Terminal Finish Matte Tin (Sn)
Terminal Form Gull Wing
Terminal Pitch 0.5 Mm
Terminal Position Dual
Total Resistance-Nom 20000 Ω
Width 3 Mm
