Converters / Analog to Digital Converters / AD7794BRUZ-REEL
Datasheets
AD7794BRUZ-REEL by:

6-Channel, Low Noise, Low Power, 24-Bit Sigma Delta ADC with On-Chip In-Amp and Reference

Part Details for AD7794BRUZ-REEL by Analog Devices Inc

Results Overview of AD7794BRUZ-REEL by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

AD7794BRUZ-REEL Information

AD7794BRUZ-REEL by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
74AC521SC REEL Rochester Electronics LLC 74AC521 - Identity Comparator, AC Series, 8-Bit, Inverted Output, CMOS
HSCHD02BV1001R Amphenol Communications Solutions HSC Vertical plug,Tape and Reel,Blue housing
HSCHD02AR0001R Amphenol Communications Solutions HSC Right Angle plug,Tape and Reel,Black housing

Price & Stock for AD7794BRUZ-REEL

Part # Distributor Description Stock Price Buy
DISTI # 53AK9825
Newark Adc, 24Bit, Tssop-24, -40 To 105 Deg C, Resolution (Bits):24Bit, Sampling Rate:-, Input Channel Type:Differential, Data Interface:3 Wire, Microwire, Qspi, Serial, Spi, Supply Voltage Type:Single, Supply Voltage Min:2.7V Rohs Compliant: Yes |Analog Devices AD7794BRUZ-REEL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 1117
  • 1 $18.3700
  • 10 $14.2000
  • 25 $12.8400
  • 50 $12.0800
  • 100 $11.3400
  • 250 $10.6100
  • 500 $10.3200
$10.3200 / $18.3700 Buy Now
Analog Devices Inc 5 Channel, 24-Bit SD ADC, PGA Min Qty: 1 Package Multiple: 2500 3236
  • 1 $20.8200
  • 10 $15.1750
  • 25 $13.7252
  • 100 $12.1076
  • 250 $11.3250
  • 500 $11.0125
  • 1,000 $8.2000
  • 2,500 $11.0125
$8.2000 / $20.8200 Buy Now
Rochester Electronics AD7794 - 6-Channel, Low Noise, Low Power, 24-Bit Sigma Delta ADC with On-Chip In-Amp and Reference RoHS: Compliant Status: Active Min Qty: 1 1
  • 1 $12.2400
  • 25 $12.0000
  • 100 $11.5100
  • 500 $11.0200
  • 1,000 $10.4000
$10.4000 / $12.2400 Buy Now
DISTI # AD7794BRUZ-REEL
Richardson RFPD CONVERTER - ADC RoHS: Compliant Min Qty: 2500 0
  • 2,500 $11.5200
$11.5200 Buy Now
CHIPMALL.COM LIMITED 24 2.7V~5.25V 470Hz TSSOP-24 Analog to Digital Converters ADC ROHS 280
  • 1 $7.3801
  • 10 $6.1619
  • 30 $5.4926
  • 100 $4.7365
  • 500 $4.4005
  • 1,000 $4.2491
$4.2491 / $7.3801 Buy Now
LCSC 24Bit 2.7V5.25V 470Hz TSSOP-24 Analog to Digital Converters (ADC) ROHS 795
  • 1 $7.6876
  • 10 $6.4186
  • 30 $5.7215
  • 100 $4.9339
  • 500 $4.5838
  • 1,000 $4.4261
$4.4261 / $7.6876 Buy Now
Win Source Electronics 6-Channel Single ADC Delta-Sigma 470sps 24-bit Serial 24-Pin TSSOP T/R / IC ADC 24BIT 6CH LP 24-TSSOP 6230
  • 9 $6.0035
  • 18 $5.6162
  • 28 $5.4226
  • 40 $5.0352
  • 52 $4.8416
  • 65 $4.6479
$4.6479 / $6.0035 Buy Now

Part Details for AD7794BRUZ-REEL

AD7794BRUZ-REEL CAD Models

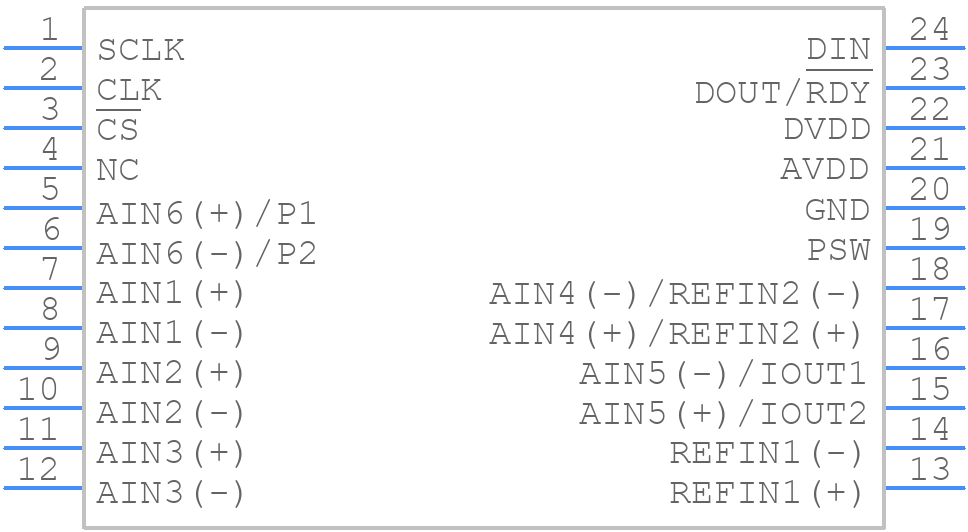

  • Part Symbol

    Part Symbol

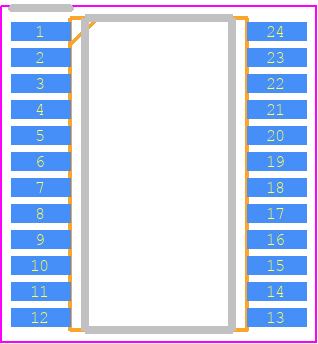

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AD7794BRUZ-REEL Part Data Attributes

Parametric Data
AD7794BRUZ-REEL Analog Devices Inc
Buy Now Datasheet
Compare Parts:
AD7794BRUZ-REEL Analog Devices Inc 6-Channel, Low Noise, Low Power, 24-Bit Sigma Delta ADC with On-Chip In-Amp and Reference
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code TSSOP
Package Description ROHS COMPLIANT, MO-153AD, TSSOP-24
Pin Count 24
Manufacturer Package Code RU-24
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Analog Input Voltage-Max 5 V
Converter Type ADC, DELTA-SIGMA
JESD-30 Code R-PDSO-G24
JESD-609 Code e3
Length 7.8 mm
Linearity Error-Max (EL) 0.0015%
Moisture Sensitivity Level 1
Number of Analog In Channels 6
Number of Bits 24
Number of Functions 1
Number of Terminals 24
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Output Bit Code OFFSET BINARY
Output Format SERIAL
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP24,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Supply Voltage-Nom 3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm

Alternate Parts for AD7794BRUZ-REEL

This table gives cross-reference parts and alternative options found for AD7794BRUZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD7794BRUZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AD7794BRU Analog Devices Inc Check for Price 6-Channel, Low Noise, Low Power, 24-Bit Sigma Delta ADC with On-Chip In-Amp and Reference AD7794BRUZ-REEL vs AD7794BRU
AD7794BRUZ Analog Devices Inc $13.8020 6-Channel, Low Noise, Low Power, 24-Bit Sigma Delta ADC with On-Chip In-Amp and Reference AD7794BRUZ-REEL vs AD7794BRUZ
AD7794BRU-REEL Analog Devices Inc Check for Price 6-CH 24-BIT DELTA-SIGMA ADC, SERIAL ACCESS, PDSO24, MO-153AD, TSSOP-24 AD7794BRUZ-REEL vs AD7794BRU-REEL

AD7794BRUZ-REEL Related Parts

AD7794BRUZ-REEL Frequently Asked Questions (FAQ)

  • The AD7794BRUZ-REEL is a sensitive analog device, and proper layout and placement are crucial. It is recommended to keep the device away from high-frequency sources, use a solid ground plane, and minimize the length of analog signal traces. Additionally, decoupling capacitors should be placed close to the device to reduce noise.

  • The AD7794BRUZ-REEL has a built-in calibration mechanism. To calibrate the device, apply a known voltage to the input pins and use the calibration registers to adjust the gain and offset. The device also has a self-calibration feature that can be enabled to automatically adjust the gain and offset.

  • The maximum sampling rate of the AD7794BRUZ-REEL is 4.17 kSPS. The power consumption of the device increases with the sampling rate. At the maximum sampling rate, the power consumption is approximately 1.5 mA. However, the power consumption can be reduced by lowering the sampling rate or using the device's power-down mode.

  • The AD7794BRUZ-REEL has a serial interface that can be connected to a microcontroller or FPGA. The device uses a 3-wire SPI-compatible interface, and the communication protocol is described in the datasheet. The device also has a dedicated pin for interrupt generation, which can be used to signal the completion of a conversion.

  • The AD7794BRUZ-REEL is specified to operate over a temperature range of -40°C to 125°C. Temperature affects the device's performance, particularly the offset voltage and gain. The device's offset voltage can drift by up to 10 μV/°C, and the gain can vary by up to 10 ppm/°C. However, the device's internal temperature sensor can be used to compensate for these effects.
