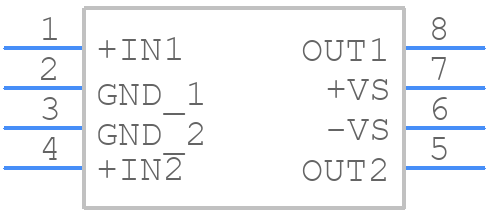

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for AD8079ARZ-REEL7 by Analog Devices Inc
Results Overview of AD8079ARZ-REEL7 by Analog Devices Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
AD8079ARZ-REEL7 Information
AD8079ARZ-REEL7 by Analog Devices Inc is a Buffer Amplifier.
Buffer Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for AD8079ARZ-REEL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Analog Devices Inc | SOIC 450 MHz Dual Gain=+2.0 Bu Min Qty: 1 Package Multiple: 1000 | 1095 |
|
$7.1125 / $13.9100 | Buy Now |
Part Details for AD8079ARZ-REEL7
AD8079ARZ-REEL7 CAD Models
AD8079ARZ-REEL7 Part Data Attributes
|
|
AD8079ARZ-REEL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
AD8079ARZ-REEL7
Analog Devices Inc
Dual 260 MHz Gain = +2.0 & +2.2 Buffer
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | SOIC | |
| Package Description | PLASTIC, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | R-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | BUFFER | |
| Average Bias Current-Max (IIB) | 10 µA | |
| Bandwidth (3dB)-Nom | 260 MHz | |
| Input Offset Voltage-Max | 20000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6.3 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR, 7 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 800 V/us | |
| Supply Voltage Limit-Max | 6.3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for AD8079ARZ-REEL7
This table gives cross-reference parts and alternative options found for AD8079ARZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD8079ARZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MAX4203ESA+ | Maxim Integrated Products | $2.3900 | Buffer Amplifier, 2 Func, BIPolar, PDSO8, SO-8 | AD8079ARZ-REEL7 vs MAX4203ESA+ |
| MAX4203EUA+ | Maxim Integrated Products | $2.5187 | Buffer Amplifier, 2 Func, BIPolar, PDSO8, UMAX-8 | AD8079ARZ-REEL7 vs MAX4203EUA+ |
| AD8079ARZ-REEL | Analog Devices Inc | Check for Price | Dual 260 MHz Gain = +2.0 & +2.2 Buffer | AD8079ARZ-REEL7 vs AD8079ARZ-REEL |
| AD8079BRZ-REEL | Analog Devices Inc | Check for Price | Dual 260 MHz Gain = +2.0 & +2.2 Buffer | AD8079ARZ-REEL7 vs AD8079BRZ-REEL |
| MAX4203ESA | Maxim Integrated Products | Check for Price | Buffer Amplifier, 2 Func, BIPolar, PDSO8, SO-8 | AD8079ARZ-REEL7 vs MAX4203ESA |
| MAX4203EUA+ | Analog Devices Inc | Check for Price | Ultra-High-Speed, Low-Noise, Low-Power, SOT23 Open-Loop Buffers, 8-MINI_SO-N/A, 8 Pins, -40 to 85C | AD8079ARZ-REEL7 vs MAX4203EUA+ |
| MAX4203EUA-T | Maxim Integrated Products | Check for Price | Buffer Amplifier, 2 Func, BIPolar, PDSO8, UMAX-8 | AD8079ARZ-REEL7 vs MAX4203EUA-T |
| MAX4203EUA | Maxim Integrated Products | Check for Price | Buffer Amplifier, 2 Func, BIPolar, PDSO8, UMAX-8 | AD8079ARZ-REEL7 vs MAX4203EUA |
| MAX4203ESA+T | Maxim Integrated Products | Check for Price | Buffer Amplifier, 2 Func, BIPolar, PDSO8, SO-8 | AD8079ARZ-REEL7 vs MAX4203ESA+T |
| MAX4203ESA+T | Analog Devices Inc | Check for Price | Ultra-High-Speed, Low-Noise, Low-Power, SOT23 Open-Loop Buffers, 8-SOIC_N-150_MIL, 8 Pins, -40 to 85C | AD8079ARZ-REEL7 vs MAX4203ESA+T |
AD8079ARZ-REEL7 Frequently Asked Questions (FAQ)
-
A good PCB layout for the AD8079ARZ-REEL7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output is properly terminated, and the input is properly biased. Additionally, consider adding a small capacitor (e.g., 10nF) in parallel with the feedback resistor to improve stability.
-
The maximum power dissipation of the AD8079ARZ-REEL7 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated for higher ambient temperatures.
-
The AD8079ARZ-REEL7 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to consider the thermal management and derate the power dissipation accordingly to ensure reliable operation.
-
Common issues with the AD8079ARZ-REEL7 include oscillations, distortion, and instability. To troubleshoot, check the PCB layout, component values, and power supply decoupling. Ensure that the input and output are properly terminated, and the device is operated within its recommended specifications.
