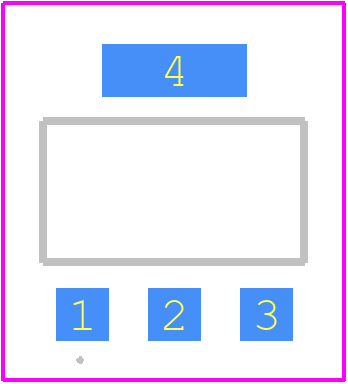

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BSP50,115 by Nexperia
Overview of BSP50,115 by Nexperia
- Distributor Offerings:
- Number of FFF Equivalents:
- CAD Models:
- Number of Functional Equivalents:
- Part Data Attributes
- Reference Designs:
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Electronic Manufacturing
Price & Stock for BSP50,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34AH6896
|
Newark | Bsp50/Sot223/Sc-73 Rohs Compliant: Yes |Nexperia BSP50,115 Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 2000 |
|
$0.2290 / $0.2700 | Buy Now |
|
DISTI #
34R3030
|
Newark | Bipolar (Bjt) Single Transistor, Darlington, Npn, 45 V, 200 Mhz, 1.25 W, 1 A, 2000 Rohs Compliant: Yes |Nexperia BSP50,115 Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 10 |
|
$0.3320 / $0.6860 | Buy Now |
|
DISTI #
93X3950
|
Newark | Bipolar (Bjt) Single Transistor, Darlington, Npn, 45 V, 200 Mhz, 1.25 W, 1 A, 2000 Rohs Compliant: Yes |Nexperia BSP50,115 Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.2130 / $0.2140 | Buy Now |
|
DISTI #
1727-5403-1-ND
|
DigiKey | TRANS NPN DARL 45V 1A SOT223 Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
672 In Stock |
|
$0.1555 / $0.6300 | Buy Now |
|
DISTI #
BSP50,115
|
Avnet Americas | Trans Darlington NPN 45V 1A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: BSP50,115) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 2000 |
|
$0.1268 | Buy Now |
|
DISTI #
771-BSP50115
|
Mouser Electronics | Darlington Transistors BSP50/SOT223/SC-73 RoHS: Compliant | 14916 |
|
$0.1550 / $0.6300 | Buy Now |
|
|
Future Electronics | BSP50 Series 45 V 1 A SMT NPN Darlington Transistor - SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Container: Reel | 12000Reel |
|
$0.1420 / $0.1560 | Buy Now |
|
|
Future Electronics | BSP50 Series 45 V 1 A SMT NPN Darlington Transistor - SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 1000 Container: Reel | 0Reel |
|
$0.1460 / $0.1600 | Buy Now |
|
|
Rochester Electronics | BSP50 - NPN Darlington transistor RoHS: Compliant Status: Active Min Qty: 1 | 13000 |
|
$0.1388 / $0.1633 | Buy Now |
|
DISTI #
BSP50,115
|
Avnet Americas | Trans Darlington NPN 45V 1A 4-Pin(3+Tab) SOT-223 T/R - Tape and Reel (Alt: BSP50,115) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 2000 |
|
$0.1268 | Buy Now |
Part Details for BSP50,115
BSP50,115 CAD Models
BSP50,115 Part Data Attributes
|
|
BSP50,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BSP50,115
Nexperia
BSP50 - NPN Darlington transistor@en-us SC-73 4-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SC-73 | |
| Package Description | PLASTIC, SMD, SC-73, 4 PIN | |
| Pin Count | 4 | |
| Manufacturer Package Code | SOT223 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.75 | |
| Date Of Intro | 1997-09-01 | |
| Samacsys Manufacturer | Nexperia | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 0.5 A | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | |
| DC Current Gain-Min (hFE) | 2000 | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation Ambient-Max | 1.5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 200 MHz | |
| VCEsat-Max | 1.3 V |
