Capacitors / Ceramic Capacitors / CL05A475MQ5NRNC
Datasheets
CL05A475MQ5NRNC by:

Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 6.3V, ±20%, X5R, 0402 (1005 mm), 0.020"T, -55º ~ +85ºC, 7" Reel

Part Details for CL05A475MQ5NRNC by Samsung Electro-Mechanics

Results Overview of CL05A475MQ5NRNC by Samsung Electro-Mechanics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CL05A475MQ5NRNC Information

CL05A475MQ5NRNC by Samsung Electro-Mechanics is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CL05A475MQ5NRNC

Part # Distributor Description Stock Price Buy
DISTI # 82AC9199
Newark Cap, 4.7Uf, 6.3V, Mlcc, 0402, Capacitance:4.7Μf, Voltage(Dc):6.3V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 20%, Dielectric Characteristic:X5R, Product Range:Cl Series, Product Length:1.02Mm, Msl:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL05A475MQ5NRNC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 7985
  • 1 $0.1000
$0.1000 Buy Now
DISTI # 82AC9200
Newark Cap, 4.7Uf, 6.3V, Mlcc, 0402, Capacitance:4.7Μf, Voltage(Dc):6.3V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 20%, Dielectric Characteristic:X5R, Product Range:Cl Series, Product Length:1.02Mm, Msl:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL05A475MQ5NRNC RoHS: Compliant Min Qty: 50000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 50,000 $0.0160
$0.0160 Buy Now
DISTI # CL05A475MQ5NRNC
Avnet Americas - Tape and Reel (Alt: CL05A475MQ5NRNC) RoHS: Not Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks, 0 Days Container: Reel 30000
  • 10,000 $0.0073
  • 20,000 $0.0072
  • 40,000 $0.0071
  • 60,000 $0.0070
  • 80,000 $0.0069
$0.0069 / $0.0073 Buy Now
DISTI # CL05A475MQ5NRNC
Avnet Americas - Tape and Reel (Alt: CL05A475MQ5NRNC) RoHS: Not Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks, 0 Days Container: Reel 30000
  • 10,000 $0.0073
  • 20,000 $0.0072
  • 40,000 $0.0071
  • 60,000 $0.0070
  • 80,000 $0.0069
$0.0069 / $0.0073 Buy Now
Future Electronics CL05 Series 4.7 uF 6.3 V �20 % Tolerance X5R SMT Multilayer Ceramic Capacitor Min Qty: 1 Package Multiple: 1 99256
null
  • 1 $0.1000
  • 20 $0.0712
  • 150 $0.0519
  • 1,000 $0.0337
  • 5,000 $0.0182
$0.0182 / $0.1000 Buy Now
NexGen Digital   20840
RFQ
DISTI # KKS1042
Rutronik KC 4,7µF 0402 20% 6,3V X5R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Container: Reel Stock DE - 940000
Stock HK - 0
Stock US - 0
Stock SG - 0
  • 10,000 $0.0064
  • 20,000 $0.0063
  • 40,000 $0.0063
  • 50,000 $0.0062
  • 100,000 $0.0062
$0.0062 / $0.0064 Buy Now
DISTI # CL05A475MQ5NRNC
Avnet Asia Multilayer Ceramic Capacitor, 4.7 uF, 6.3 V, ? 20%, X5R, 0402 [1005 Metric] (Alt: CL05A475MQ5NRNC) RoHS: Compliant Min Qty: 100000 Package Multiple: 10000 Lead time: 16 Weeks, 0 Days 0
  • 100,000 $0.0026
  • 200,000 $0.0026
  • 300,000 $0.0025
  • 500,000 $0.0025
  • 1,000,000 $0.0024
  • 2,500,000 $0.0024
  • 5,000,000 $0.0023
$0.0023 / $0.0026 Buy Now
LCSC 6.3V 4.7uF X5R 20% 0402 Multilayer Ceramic Capacitors MLCC - SMD/SMT ROHS 80000
  • 100 $0.0033
  • 1,000 $0.0026
  • 3,000 $0.0022
  • 10,000 $0.0020
  • 50,000 $0.0018
$0.0018 / $0.0033 Buy Now
Vyrian Capacitors 656587
RFQ

Part Details for CL05A475MQ5NRNC

CL05A475MQ5NRNC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

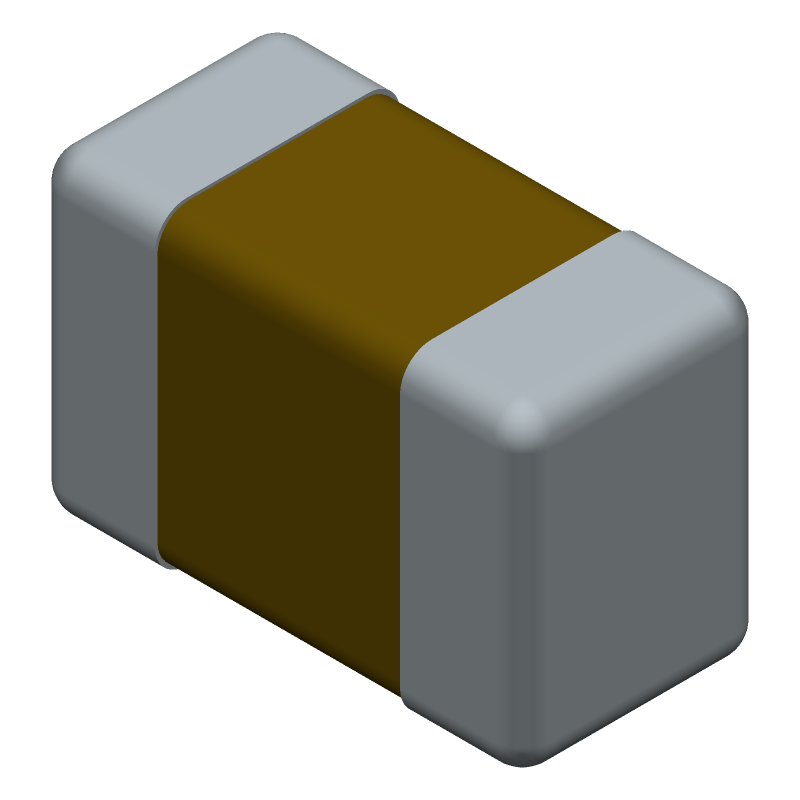

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CL05A475MQ5NRNC Part Data Attributes

Parametric Data
CL05A475MQ5NRNC Samsung Electro-Mechanics
Buy Now Datasheet
Compare Parts:
CL05A475MQ5NRNC Samsung Electro-Mechanics Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 6.3V, ±20%, X5R, 0402 (1005 mm), 0.020"T, -55º ~ +85ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMSUNG ELECTRO-MECHANICS
Part Package Code 0402
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 20 Weeks
Samacsys Manufacturer SAMSUNG
Capacitance 4.7 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.65 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, CARDBOARD, 7 INCH
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 6.3 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code X5R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for CL05A475MQ5NRNC

This table gives cross-reference parts and alternative options found for CL05A475MQ5NRNC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CL05A475MQ5NRNC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CL05A475MQ5NRN8 Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 4.7uF, 0402, CL05A475MQ5NRNC vs CL05A475MQ5NRN8
04026D475MAT4A Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0402, CHIP CL05A475MQ5NRNC vs 04026D475MAT4A
04026D475MAT2A Kyocera AVX Components $0.0381 Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 6.3V, ±20%, X5R, 0402 (1005 mm), Sn/NiBar, -55º ~ +85ºC, 7" Reel CL05A475MQ5NRNC vs 04026D475MAT2A
CL05A475MQ5NRNL Samsung Electro-Mechanics Check for Price Capacitor, Ceramic, Chip, General Purpose, 4.7uF, 6.3V, ±20%, X5R, 0402 (1005 mm), 0.020"T, -55º ~ +85ºC, 7" Reel CL05A475MQ5NRNC vs CL05A475MQ5NRNL
GMC04X5R475M6R3NTD Cal-Chip Electronics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 4.7uF, 0402, CL05A475MQ5NRNC vs GMC04X5R475M6R3NTD
C0402X5R6R3-475MPBU VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0402, CHIP CL05A475MQ5NRNC vs C0402X5R6R3-475MPBU
NMC0402X5R475M6.3TRP3KF NIC Components Corp Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT CL05A475MQ5NRNC vs NMC0402X5R475M6.3TRP3KF
CL05A475MQ5NRNH Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 4.7uF, 0402, CL05A475MQ5NRNC vs CL05A475MQ5NRNH
ZRB15XR60J475ME01D Murata Manufacturing Co Ltd $0.0886 Ceramic Capacitor, Ceramic CL05A475MQ5NRNC vs ZRB15XR60J475ME01D
CL05A475MQ5NRNB Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 4.7uF, 0402, CL05A475MQ5NRNC vs CL05A475MQ5NRNB

CL05A475MQ5NRNC Related Parts

CL05A475MQ5NRNC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile for the CL05A475MQ5NRNC is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.

  • The ESR of the CL05A475MQ5NRNC is 0.015 ohms, which is relatively low. This means that the capacitor has low energy losses and can handle high-frequency signals with minimal attenuation.

  • The CL05A475MQ5NRNC has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours without being damaged.

  • Yes, the CL05A475MQ5NRNC is suitable for use in high-reliability applications due to its high-quality materials, robust construction, and rigorous testing and inspection processes.

  • The CL05A475MQ5NRNC has a voltage derating of 80% of its rated voltage, which means that it can operate safely at 80% of its rated voltage without reducing its lifespan.
