Capacitors / Fixed Capacitors / CL05B104KO5NNNC
Datasheets
CL05B104KO5NNNC by:
Samsung Electro-Mechanics

Capacitor, Ceramic, Chip, General Purpose, 0.1uF, 16V, ±10%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel

Part Details for CL05B104KO5NNNC by Samsung Electro-Mechanics

Results Overview of CL05B104KO5NNNC by Samsung Electro-Mechanics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CL05B104KO5NNNC Information

CL05B104KO5NNNC by Samsung Electro-Mechanics is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CL05B104KO5NNNC

Part # Distributor Description Stock Price Buy
DISTI # 02AH6816
Newark Cap, Mlcc, 0.1Uf, 16Vdc, X7R, 0402, Capacitance:0.1Μf, Voltage(Dc):16V, Voltage(Ac):-, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cl Series, Qualification:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL05B104KO5NNNC RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel 530000
  • 10,000 $0.0020
$0.0020 Buy Now
DISTI # 39AH5003
Newark Cap, Mlcc, 0.1Uf, 16Vdc, X7R, 0402, Capacitance:0.1Μf, Voltage(Dc):16V, Voltage(Ac):-, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cl Series, Qualification:- Rohs Compliant: Yes |Samsung Electro-Mechanics CL05B104KO5NNNC RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape 139422
  • 10 $0.0280
  • 25 $0.0180
  • 50 $0.0130
  • 100 $0.0100
  • 250 $0.0070
  • 500 $0.0050
  • 1,000 $0.0050
$0.0050 / $0.0280 Buy Now
DISTI # CL05B104KO5NNNC
Avnet Americas Multilayer Ceramic Capacitor, 0.1 uF, 16 V, ? 10%, X7R, 0402 [1005 Metric] - Tape and Reel (Alt: CL05B104KO5NNNC) RoHS: Not Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks, 0 Days Container: Reel 1110000
  • 10,000 $0.0017
  • 20,000 $0.0016
  • 40,000 $0.0016
  • 60,000 $0.0015
  • 80,000 $0.0015
$0.0015 / $0.0017 Buy Now
Chip 1 Exchange INSTOCK 17082998
RFQ
Chip 1 Exchange INSTOCK 8000
RFQ
DISTI # CL05B104KO5NNNC
Avnet Asia Multilayer Ceramic Capacitor, 0.1 uF, 16 V, ? 10%, X7R, 0402 [1005 Metric] (Alt: CL05B104KO5NNNC) RoHS: Compliant Min Qty: 100000 Package Multiple: 10000 Lead time: 16 Weeks, 0 Days 0
  • 100,000 $0.0049
  • 200,000 $0.0048
  • 300,000 $0.0046
  • 500,000 $0.0045
  • 1,000,000 $0.0038
  • 2,500,000 $0.0023
  • 5,000,000 $0.0023
$0.0023 / $0.0049 Buy Now
LCSC 16V 100nF X7R 10% 0402 Multilayer Ceramic Capacitors MLCC - SMD/SMT ROHS 7056700
  • 100 $0.0012
  • 1,000 $0.0009
  • 3,000 $0.0008
  • 10,000 $0.0007
$0.0007 / $0.0012 Buy Now
Vyrian Capacitors 22640909
RFQ

Part Details for CL05B104KO5NNNC

CL05B104KO5NNNC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

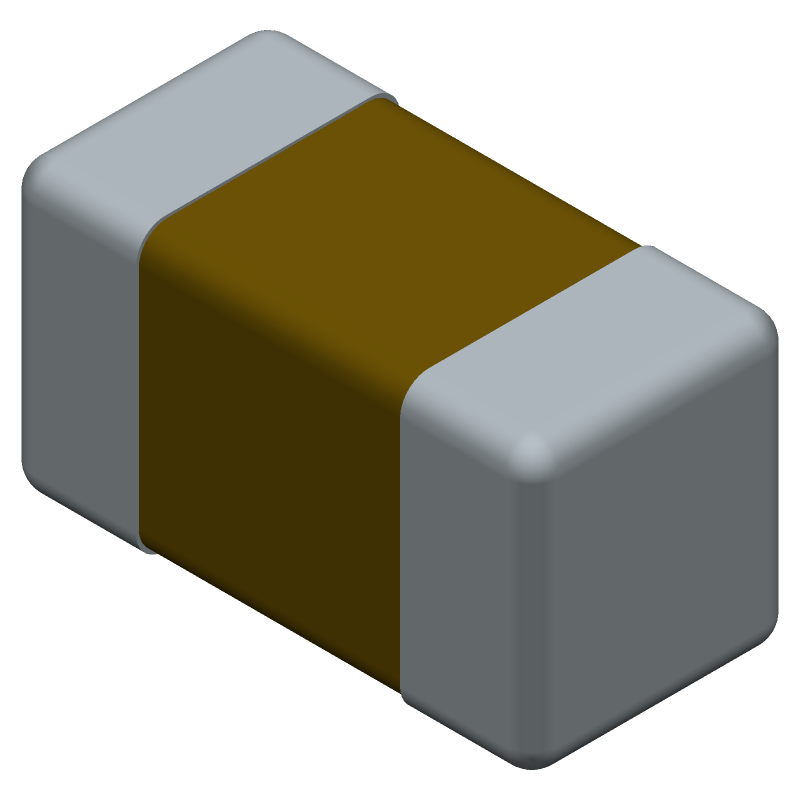

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CL05B104KO5NNNC Part Data Attributes

Parametric Data
CL05B104KO5NNNC Samsung Electro-Mechanics
Buy Now Datasheet
Compare Parts:
CL05B104KO5NNNC Samsung Electro-Mechanics Capacitor, Ceramic, Chip, General Purpose, 0.1uF, 16V, ±10%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMSUNG ELECTRO-MECHANICS
Part Package Code 0402
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 20 Weeks
Samacsys Manufacturer SAMSUNG
Capacitance 0.1 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.5 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, CARDBOARD PAPER, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 16 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for CL05B104KO5NNNC

This table gives cross-reference parts and alternative options found for CL05B104KO5NNNC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CL05B104KO5NNNC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C0402T104K4RAC KEMET Corporation $0.4497 Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT CL05B104KO5NNNC vs C0402T104K4RAC
CC0402KCX7R7BB104 YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT CL05B104KO5NNNC vs CC0402KCX7R7BB104
CM05X7R104K16KC KYOCERA Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.1uF, 0402, CL05B104KO5NNNC vs CM05X7R104K16KC
CML0402X7R104KT16V SEI Stackpole Electronics Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP CL05B104KO5NNNC vs CML0402X7R104KT16V
GCG155R71C104KA01D Murata Manufacturing Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT CL05B104KO5NNNC vs GCG155R71C104KA01D
C0402T104K4RBCTU KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT CL05B104KO5NNNC vs C0402T104K4RBCTU
ST15B104K160MT Walsin Technology Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0402, CHIP CL05B104KO5NNNC vs ST15B104K160MT
SCM05B104KONI Surge Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.1uF, 0402, CL05B104KO5NNNC vs SCM05B104KONI
C0402T104K4RBC9028 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 16V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.1uF, 0402, CL05B104KO5NNNC vs C0402T104K4RBC9028
0402B104K160NT Fenghua (HK) Electronics Ltd Check for Price CAP,CERAMIC,100NF,16VDC,10% -TOL,10% +TOL,X7R TC CODE,-15,15% TC,0402 CASE CL05B104KO5NNNC vs 0402B104K160NT

CL05B104KO5NNNC Related Parts

CL05B104KO5NNNC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature profile is 250°C for 10 seconds, with a peak temperature of 260°C for 5 seconds. However, it's recommended to consult the Samsung Electro-Mechanics application note for more detailed information.

  • The CL05B104KO5NNNC is designed to handle high-frequency noise up to 1 GHz. Its low equivalent series resistance (ESR) and equivalent series inductance (ESL) make it suitable for high-frequency applications.

  • Yes, the CL05B104KO5NNNC is AEC-Q200 qualified, making it suitable for automotive applications. However, it's recommended to consult the datasheet and application notes for specific requirements and testing.

  • The CL05B104KO5NNNC has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours at 30°C and 60% relative humidity.

  • The CL05B104KO5NNNC is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's recommended to derate the capacitor's voltage and current ratings at higher temperatures.
