DS12887+ Information

DS12887+ by Analog Devices Inc is a Timer or RTC.
Timers or RTCs are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for DS12887+

Part # Distributor Description Stock Price Buy
Analog Devices Inc Real-Time Clocks Package Multiple: 1 0
  • 1 $15.8900
  • 1,000 $7.5100
$7.5100 / $15.8900 Buy Now
DISTI # DS12887+
TME IC: RTC circuit, Multiplexed, NV SRAM, 114BSRAM, DIP24, 4.5÷5.5V Min Qty: 1 0
  • 1 $25.1300
  • 3 $23.6000
  • 10 $22.5700
$22.5700 / $25.1300 RFQ

Part Details for DS12887+

DS12887+ CAD Models

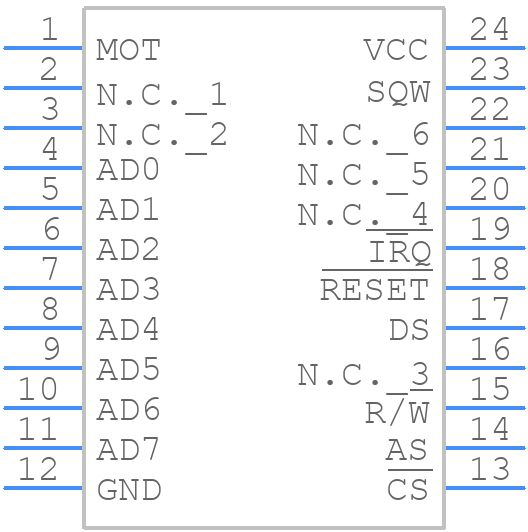

  • Part Symbol

    Part Symbol

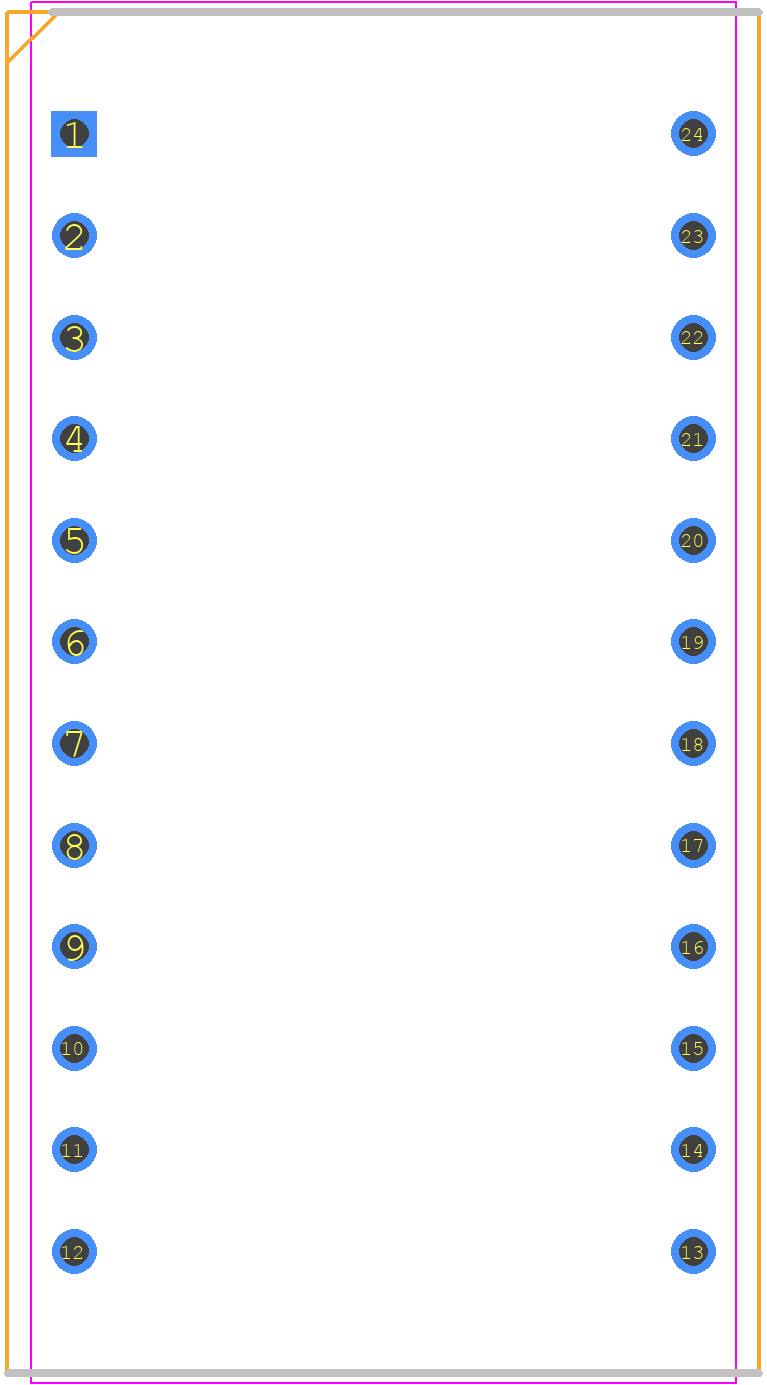

  • Footprint
