DS1339BU+ by Analog Devices Inc is a Timer or RTC.
Timers or RTCs are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for DS1339BU+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS1339BU+
|
Mouser Electronics | Real Time Clock SERIAL RTC 1.8-3.3V HESR USOP RoHS: Compliant | 138 |
|
$3.5800 / $6.3700 | Buy Now |
|
|
Analog Devices Inc | SERIAL RTC 1.8-3.3V HESR USOP Package Multiple: 1 | 111 |
|
$3.6134 / $6.3700 | Buy Now |
US Tariff Estimator: DS1339BU+ by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for DS1339BU+
DS1339BU+ CAD Models
-

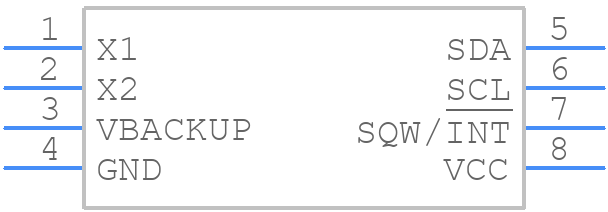

Part Symbol
-
