Memory / DRAMs / H5TC4G63CFR-PBA
Datasheets
H5TC4G63CFR-PBA by: SK Hynix Inc

DRAM Module, 256MX16, CMOS, PBGA96, FBGA-96

Part Details for H5TC4G63CFR-PBA by SK Hynix Inc

Results Overview of H5TC4G63CFR-PBA by SK Hynix Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Computing and Data Storage

H5TC4G63CFR-PBA Information

H5TC4G63CFR-PBA by SK Hynix Inc is a DRAM.
DRAMs are under the broader part category of Memory Components.

Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.

Price & Stock for H5TC4G63CFR-PBA

Part # Distributor Description Stock Price Buy
Vyrian Memory ICs 239
RFQ
Win Source Electronics DRAM Chip DDR3L SDRAM 4Gbit 256Mx16 1.35V 96-Pin FBGA 31589
  • 9 $6.4865
  • 20 $6.0684
  • 30 $5.8593
  • 43 $5.4412
  • 56 $5.2310
  • 69 $5.0219
$5.0219 / $6.4865 Buy Now

Part Details for H5TC4G63CFR-PBA

H5TC4G63CFR-PBA CAD Models

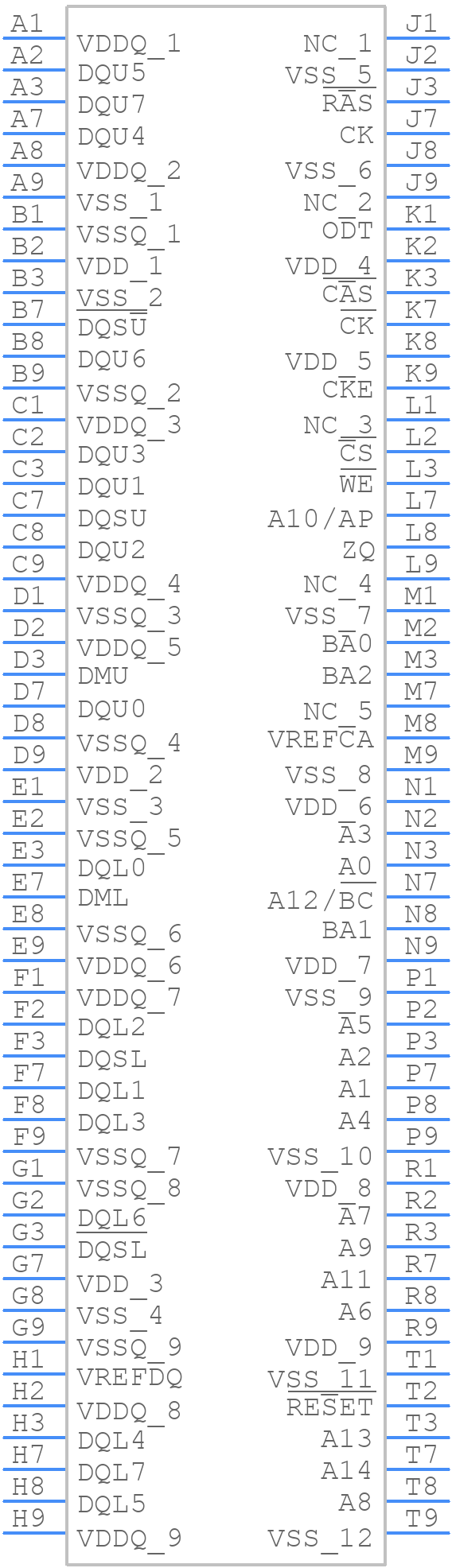

  • Part Symbol

    Part Symbol

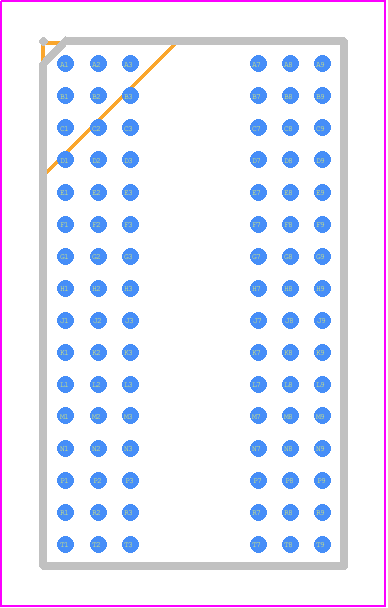

  • Footprint

    footprint

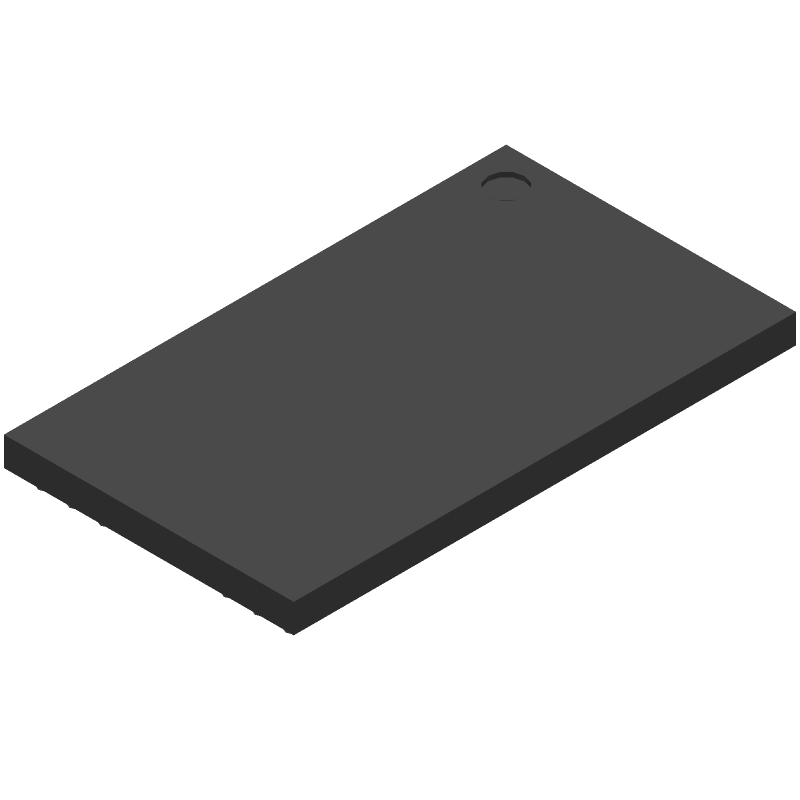

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

H5TC4G63CFR-PBA Part Data Attributes

Parametric Data
H5TC4G63CFR-PBA SK Hynix Inc
Buy Now Datasheet
Compare Parts:
H5TC4G63CFR-PBA SK Hynix Inc DRAM Module, 256MX16, CMOS, PBGA96, FBGA-96
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer SK HYNIX INC
Package Description FBGA-96
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.32.00.36
Samacsys Manufacturer Hynix
Access Mode MULTI BANK PAGE BURST
Additional Feature AUTO/SELF REFRESH
JESD-30 Code R-PBGA-B96
Length 13 mm
Memory Density 4294967296 bit
Memory IC Type DRAM MODULE
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 96
Number of Words 268435456 words
Number of Words Code 256000000
Operating Mode SYNCHRONOUS
Operating Temperature-Max 85 °C
Operating Temperature-Min
Organization 256MX16
Package Body Material PLASTIC/EPOXY
Package Code TFBGA
Package Shape RECTANGULAR
Package Style GRID ARRAY, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Seated Height-Max 1.2 mm
Self Refresh YES
Supply Voltage-Max (Vsup) 1.45 V
Supply Voltage-Min (Vsup) 1.283 V
Supply Voltage-Nom (Vsup) 1.35 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Form BALL
Terminal Pitch 0.8 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 20
Width 7.5 mm

Alternate Parts for H5TC4G63CFR-PBA

This table gives cross-reference parts and alternative options found for H5TC4G63CFR-PBA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of H5TC4G63CFR-PBA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
H5TQ4G63EFR-H9L SK Hynix Inc Check for Price DDR DRAM, H5TC4G63CFR-PBA vs H5TQ4G63EFR-H9L
H5TC4G63CFR-RDI SK Hynix Inc Check for Price DRAM Module, 256MX16, CMOS, PBGA96, FBGA-96 H5TC4G63CFR-PBA vs H5TC4G63CFR-RDI
H5TC4G63CFR-RDR SK Hynix Inc Check for Price DRAM Module, 256MX16, 0.195ns, CMOS, PBGA96, FBGA-96 H5TC4G63CFR-PBA vs H5TC4G63CFR-RDR
H5TC4G63CFR-PBR SK Hynix Inc Check for Price DRAM Module, 256MX16, 0.225ns, CMOS, PBGA96, FBGA-96 H5TC4G63CFR-PBA vs H5TC4G63CFR-PBR
H5TC4G63CFR-RDA SK Hynix Inc Check for Price DRAM Module, 256MX16, CMOS, PBGA96, FBGA-96 H5TC4G63CFR-PBA vs H5TC4G63CFR-RDA
H5TQ4G63CFR-TEL SK Hynix Inc Check for Price DDR DRAM, 256MX16, CMOS, PBGA96, FPBGA-96 H5TC4G63CFR-PBA vs H5TQ4G63CFR-TEL
H5TC4G63EFR-H9L SK Hynix Inc Check for Price DDR DRAM, H5TC4G63CFR-PBA vs H5TC4G63EFR-H9L
H5TQ4G63EFR-TEI SK Hynix Inc Check for Price DDR DRAM, H5TC4G63CFR-PBA vs H5TQ4G63EFR-TEI
H5TC4G63CFR-PBL SK Hynix Inc Check for Price DRAM Module, 256MX16, CMOS, PBGA96, FBGA-96 H5TC4G63CFR-PBA vs H5TC4G63CFR-PBL
H5TC4G63CFR-G7R SK Hynix Inc Check for Price DRAM Module, 256MX16, 0.3ns, CMOS, PBGA96, FBGA-96 H5TC4G63CFR-PBA vs H5TC4G63CFR-G7R

H5TC4G63CFR-PBA Related Parts

H5TC4G63CFR-PBA Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the H5TC4G63CFR-PBA is 0°C to 95°C.

  • The H5TC4G63CFR-PBA requires a refresh command every 3.9 μs (tREFI) to maintain data integrity. You can use the auto-refresh mode or manual refresh mode, depending on your system requirements.

  • The minimum clock cycle time (tCK) for the H5TC4G63CFR-PBA is 1.25 ns, which corresponds to a clock frequency of 800 MHz.

  • The H5TC4G63CFR-PBA requires a specific power-up sequence, including a 200 ms delay after power-on, followed by a reset command. For power-down, you should perform a precharge-all command, then reduce the clock frequency to 0 Hz.

  • The maximum allowable voltage for the H5TC4G63CFR-PBA is 1.4 V, with a tolerance of ±0.1 V.
