3 A low drop positive voltage regulator: adjustable and fixed

Part Details for LD1085V by STMicroelectronics

Results Overview of LD1085V by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

LD1085V Information

LD1085V by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LD1085V

Part # Distributor Description Stock Price Buy
DISTI # 72K5975
Newark V Reg Adj 1.25-28V, 1085, To-220-3, Output Type-Fixed, Adjustable, Input Voltage Min-4.25V, Input Voltage Max-30V, Fixed Output Voltage Nom-, Adjustable Output Voltage Min-1.25V, Adjustable Output Voltage Max-4.25V, Output Rohs Compliant: Yes |Stmicroelectronics LD1085V RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 6593
  • 1 $1.7800
  • 10 $1.5400
  • 100 $1.3300
  • 500 $1.1200
  • 1,000 $0.9480
  • 2,500 $0.8200
  • 10,000 $0.7760
$0.7760 / $1.7800 Buy Now
DISTI # 72K5975
Avnet Americas LDO Regulator Pos 1.25V to 28V 3A 3-Pin(3+Tab) TO-220 Tube - Bulk (Alt: 72K5975) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Container: Bulk 598 Partner Stock
  • 1 $1.8100
  • 10 $1.5700
  • 100 $1.3600
  • 500 $1.1500
  • 1,000 $0.9750
$0.9750 / $1.8100 Buy Now
DISTI # LD1085V
Avnet Americas LDO Regulator Pos 1.25V to 28V 3A 3-Pin(3+Tab) TO-220 Tube - Rail/Tube (Alt: LD1085V) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Tube 0
  • 1,000 $0.7290
  • 2,000 $0.7244
  • 4,000 $0.7110
  • 6,000 $0.6981
  • 8,000 $0.6856
$0.6856 / $0.7290 Buy Now
STMicroelectronics 3 A low drop positive voltage regulator: adjustable and fixed RoHS: Compliant Min Qty: 1 2575
  • 1 $1.6200
  • 10 $1.0200
  • 100 $0.9600
  • 250 $0.9000
  • 500 $0.8700
$0.8700 / $1.6200 Buy Now
Bristol Electronics   186
RFQ
DISTI # LD1085V
TME IC: voltage regulator, LDO,linear,adjustable, 1.25÷30V, 3A, THT Min Qty: 1 919
  • 1 $1.5690
  • 50 $0.8430
  • 100 $0.6950
  • 1,000 $0.5900
  • 2,000 $0.5790
$0.5790 / $1.5690 Buy Now
DISTI # LD1085V
Avnet Silica LDO Regulator Pos 1.25V to 28V 3A 3-Pin(3+Tab) TO-220 Tube (Alt: LD1085V) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 13 Weeks, 0 Days Silica - 2000
Buy Now
DISTI # LD1085V
EBV Elektronik LDO Regulator Pos 1.25V to 28V 3A 3-Pin(3+Tab) TO-220 Tube (Alt: LD1085V) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 13 Weeks, 0 Days EBV - 550
Buy Now

Part Details for LD1085V

LD1085V CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

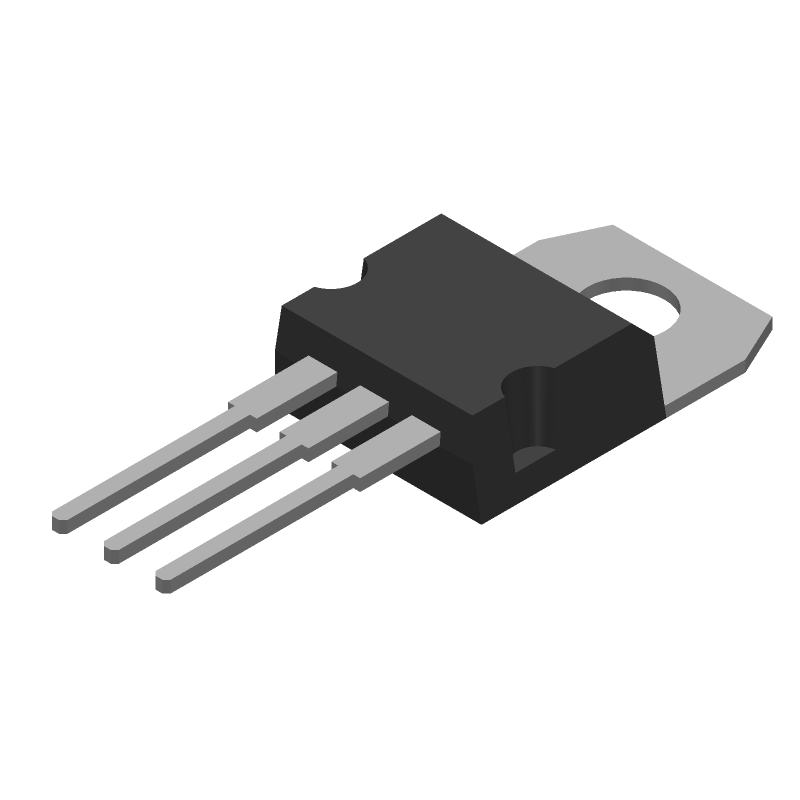

  • 3D Model
