Fixed Positive LDO Regulator, 15V, 0.51V Dropout, BIPolar, PDSO8

Part Details for LT3060EDC-15#TRMPBF by Analog Devices Inc

Results Overview of LT3060EDC-15#TRMPBF by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

LT3060EDC-15#TRMPBF Information

LT3060EDC-15#TRMPBF by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for LT3060EDC-15#TRMPBF

Part # Distributor Description Stock Price Buy
DISTI # LT3060EDC-15#TRMPBFCT-ND
DigiKey IC REG LINEAR 15V 100MA 8-DFN Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 500
In Stock
  • 1 $3.7600
  • 10 $2.8360
  • 25 $2.6048
  • 100 $2.3510
  • 250 $2.2797
  • 500 $2.1569
  • 1,000 $2.0969
  • 1,500 $2.0668
  • 2,500 $2.0335
  • 3,500 $2.0140
  • 5,000 $1.9953
$1.9953 / $3.7600 Buy Now
DISTI # 584-3060EDC-15TRMPBF
Mouser Electronics LDO Voltage Regulators 45V VIN, uP, L N, 100mA L Drop, Lin Reg RoHS: Compliant 380
  • 1 $5.1700
  • 10 $3.5900
  • 25 $3.3400
  • 100 $2.8600
  • 250 $2.5400
  • 500 $1.9500
  • 1,000 $1.8600
$1.8600 / $5.1700 Buy Now
Analog Devices Inc 45V VIN, uP, L N, 100mA L Drop Package Multiple: 500 8100
  • 1 $5.1700
  • 10 $3.3740
  • 25 $2.9060
  • 100 $2.3764
  • 250 $2.1164
  • 500 $1.9564
  • 1,000 $1.8625
$1.8625 / $5.1700 Buy Now
DISTI # 35212772
Verical LDO Regulator Pos 15V 0.1A 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Americas - 8000
  • 500 $1.8429
$1.8429 Buy Now
DISTI # 35212772
Verical LDO Regulator Pos 15V 0.1A 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Americas - 8000
  • 500 $1.8429
$1.8429 Buy Now
DISTI # LT3060EDC15TRMP
Richardson RFPD VOLTAGE REGULATOR RoHS: Compliant Min Qty: 500 0
  • 500 $2.0500
  • 1,000 $2.0000
  • 5,000 $1.9300
$1.9300 / $2.0500 Buy Now
DISTI # 35212772
Verical LDO Regulator Pos 15V 0.1A 8-Pin DFN EP T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Americas - 8000
  • 500 $1.8429
$1.8429 Buy Now

US Tariff Estimator: LT3060EDC-15#TRMPBF by Analog Devices Inc

Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.

LT3060EDC-15#TRMPBF
Analog Devices Inc
Please specify a country of origin.
$
Please specify an import value in USD.
Estimator Results:
Tariff Percentage Tariff Calculation
Import Value
$.
Total Duty
$.
Total Estimate
$.
$.
Based on tariff data from

Part Details for LT3060EDC-15#TRMPBF

LT3060EDC-15#TRMPBF CAD Models

  • Part Symbol

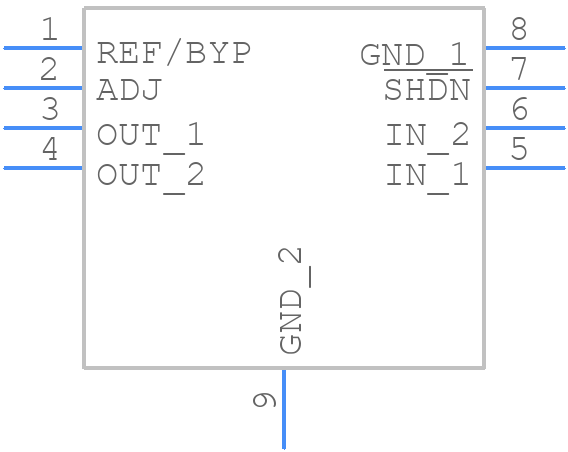

    schematic symbol
