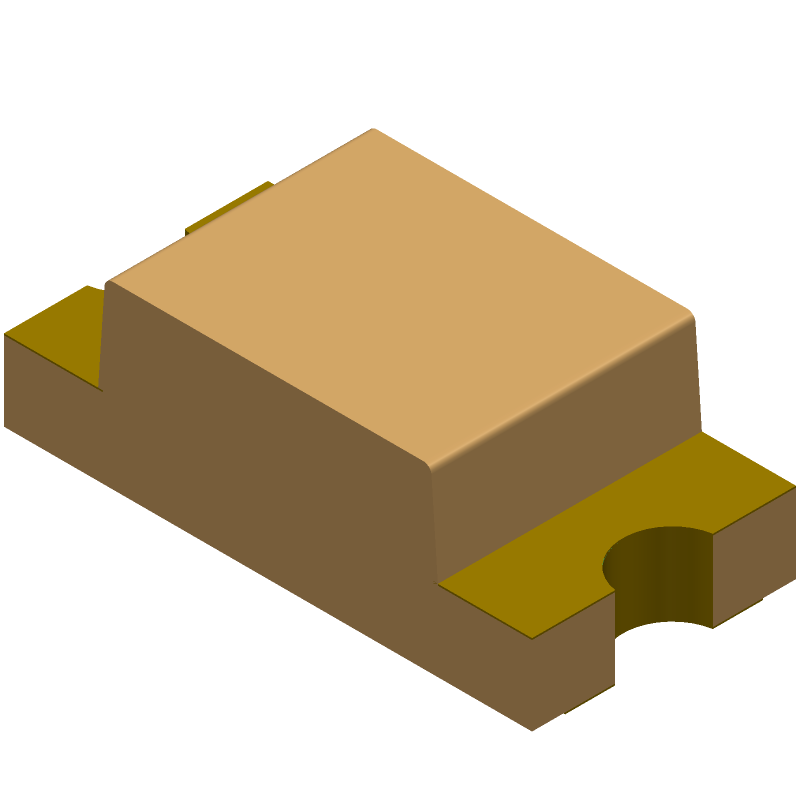

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LTST-C150CKT by Lite-On Semiconductor Corporation
Results Overview of LTST-C150CKT by Lite-On Semiconductor Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Renewable Energy
LTST-C150CKT Information
LTST-C150CKT by Lite-On Semiconductor Corporation is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for LTST-C150CKT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 4259 |
|
RFQ | ||
|
|
Bristol Electronics | 3657 |
|
RFQ | ||
|
|
Bristol Electronics | 927 |
|
RFQ | ||
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 3791 |
|
$0.5000 / $0.7700 | Buy Now |
|
|
Win Source Electronics | LED RED CLEAR 1206 SMD | 323185 |
|
$0.0439 / $0.0658 | Buy Now |
Part Details for LTST-C150CKT
LTST-C150CKT CAD Models
LTST-C150CKT Part Data Attributes
|
|
LTST-C150CKT
Lite-On Semiconductor Corporation
Buy Now
Datasheet
|
Compare Parts:
LTST-C150CKT
Lite-On Semiconductor Corporation
Single Color LED, Red, Water Clear, 2.06mm,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | LITE-ON TECHNOLOGY CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Lite-On | |
| Additional Feature | IC COMPATIBLE | |
| Color | RED | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.04 A | |
| Forward Voltage-Max | 2.4 V | |
| JESD-609 Code | e3 | |
| Lens Type | WATER CLEAR | |
| Luminous Intensity-Min | 0.0028 cd | |
| Luminous Intensity-Nom | 10.0 mcd | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 1.1 mm | |
| Packing Method | TR, 7 INCH | |
| Peak Wavelength | 660 nm | |
| Reverse Voltage-Max | 5 V | |
| Shape | RECTANGULAR | |
| Size | 2.06 mm | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 3.5 mm | |
| Viewing Angle | 130 deg |
LTST-C150CKT Frequently Asked Questions (FAQ)
-
The recommended storage temperature for LTST-C150CKT is -40°C to 100°C.
-
Yes, the LTST-C150CKT is compatible with lead-free soldering processes.
-
The maximum forward current rating for LTST-C150CKT is 150mA.
-
Yes, the LTST-C150CKT is designed to operate in high-temperature applications up to 150°C.
-
Yes, the LTST-C150CKT is RoHS (Restriction of Hazardous Substances) compliant.
