MAX809REUR+T Information
MAX809REUR+T by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for MAX809REUR+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y9608
|
Newark | Mpu Supervisor/Monitor, -40 To 105Deg C, Reset Threshold Voltage ? Min:-, Reset Threshold Voltage ? Max:-, Reset Threshold Voltage - Nom:2.63V, No. Of Monitored Voltages:1Monitors, Supply Voltage Min:1.2V, Supply Voltage Max:5.5V Rohs Compliant: Yes |Analog Devices MAX809REUR+T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2263 |
|
$2.7000 / $4.6400 | Buy Now |
|
DISTI #
700-MAX809REURT
|
Mouser Electronics | Supervisory Circuits 3-Pin Microprocessor Reset Circuits RoHS: Compliant | 3597 |
|
$2.5500 / $4.5000 | Buy Now |
|
DISTI #
V72:2272_21770570
|
Arrow Electronics | Processor Supervisor 2.63V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2204 Container: Cut Strips | Americas - 536 |
|
$2.4360 / $3.3960 | Buy Now |
|
|
Analog Devices Inc | 3-Pin Microprocessor Reset Cir Min Qty: 1 Package Multiple: 1 | 288 |
|
$2.5799 / $4.6800 | Buy Now |
|
DISTI #
69730681
|
Verical | Processor Supervisor 2.63V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2204 | Americas - 536 |
|
$2.4360 / $3.3960 | Buy Now |
|
|
Rochester Electronics | MAX809 - Microprocessor Reset Circuits RoHS: Compliant Status: Active Min Qty: 1 | 1420 |
|
$2.0000 / $2.5000 | Buy Now |
|
DISTI #
V72:2272_21770570
|
Arrow Electronics | Processor Supervisor 2.63V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2204 Container: Cut Strips | Americas - 536 |
|
$2.4360 / $3.3960 | Buy Now |
|
DISTI #
69730681
|
Verical | Processor Supervisor 2.63V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R COO: Thailand RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2204 | Americas - 536 |
|
$2.4360 / $3.3960 | Buy Now |
|
DISTI #
V72:2272_21770570
|
Arrow Electronics | Processor Supervisor 2.63V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R COO: Thailand RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2204 Container: Cut Strips | Americas - 536 |
|
$2.4360 / $3.3960 | Buy Now |
|
DISTI #
69730681
|
Verical | Processor Supervisor 2.63V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R COO: Thailand RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2204 | Americas - 536 |
|
$2.4360 / $3.3960 | Buy Now |
US Tariff Estimator: MAX809REUR+T by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX809REUR+T
MAX809REUR+T CAD Models
-

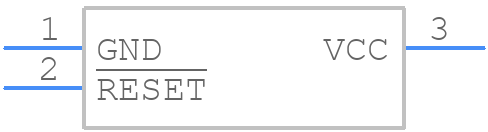

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX809REUR+T Part Data Attributes
|
|
MAX809REUR+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX809REUR+T
Analog Devices Inc
Voltage Supervisor/Reset IC, Fixed, 1 Channel, +2.63V, CMOS, PDSO3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 3-SOT_23-N/A | |
| Package Description | Tsop, To-236 | |
| Pin Count | 3 | |
| Manufacturer Package Code | 3-SOT_23-N/A | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2001-05-10 | |
| Additional Feature | Mnl Rst:N;Pw Fl Io:N;Prg Rst Dly:N;Wd:N;Wdo:N;Wwd:N | |
| Adjustable Threshold | No | |
| Analog IC - Other Type | Voltage Supervisor/Reset Ic | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 2.92 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | TSOP | |
| Package Equivalence Code | TO-236 | |
| Package Shape | Rectangular | |
| Package Style | Small Outline, Thin Profile | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.12 Mm | |
| Supply Current-Max (Isup) | 0.1 Ma | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.2 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | Yes | |
| Technology | Cmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Matte Tin (Sn) - Annealed | |
| Terminal Form | Gull Wing | |
| Terminal Pitch | 0.95 Mm | |
| Terminal Position | Dual | |
| Threshold Voltage-Nom | +2.63v | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.3 Mm |
Alternate Parts for MAX809REUR+T
This table gives cross-reference parts and alternative options found for MAX809REUR+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of MAX809REUR+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM809M3X-2.63/NOPB | Texas Instruments | $0.3375 | Voltage Supervisor/Reset IC, Fixed, 1 Channel, +2.63V, CMOS, PDSO3 | MAX809REUR+T vs LM809M3X-2.63/NOPB |
MAX809REUR+T Frequently Asked Questions (FAQ)
-
A good PCB layout for the MAX809REUR+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
-
The MAX809REUR+T requires a single power supply voltage between 2.7V and 5.5V. Ensure that the power supply is stable and within the recommended range. Also, make sure to follow the recommended power-up sequence and initialization procedure as outlined in the datasheet.
-
The MAX809REUR+T can sink or source up to 20mA of current. However, it's recommended to limit the current to 10mA or less to ensure reliable operation and to prevent overheating.
-
To troubleshoot issues with the MAX809REUR+T, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify that the input and output signals are within the specified voltage ranges. Use an oscilloscope to check for noise or glitches on the input and output signals. Finally, consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
-
The MAX809REUR+T is rated for operation up to 125°C. However, it's recommended to derate the device's performance and reliability at high temperatures. Consult the datasheet and application notes for guidance on using the device in high-temperature environments.
