Part Details for MAX97200BEWC+T by Analog Devices Inc
Results Overview of MAX97200BEWC+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- Tariff Estimator: (Available) NEW
- Number of Functional Equivalents: (0 options)
- CAD Models: (Available)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for MAX97200BEWC+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-MAX97200BEWC+T
|
Mouser Electronics | Audio Amplifiers Low-Power, Low-Offset, Dual Mode, Class RoHS: Compliant | 1643 |
|
$0.7750 / $2.6700 | Buy Now |
|
|
Analog Devices Inc | Low-Power, Low-Offset, Dual Mo Min Qty: 2500 Package Multiple: 1 | 12500 |
|
$0.5900 / $2.6700 | Buy Now |
US Tariff Estimator: MAX97200BEWC+T by Analog Devices Inc
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for MAX97200BEWC+T
MAX97200BEWC+T CAD Models
-

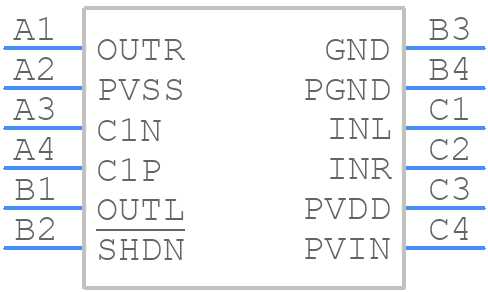

Part Symbol
-
Footprint
-

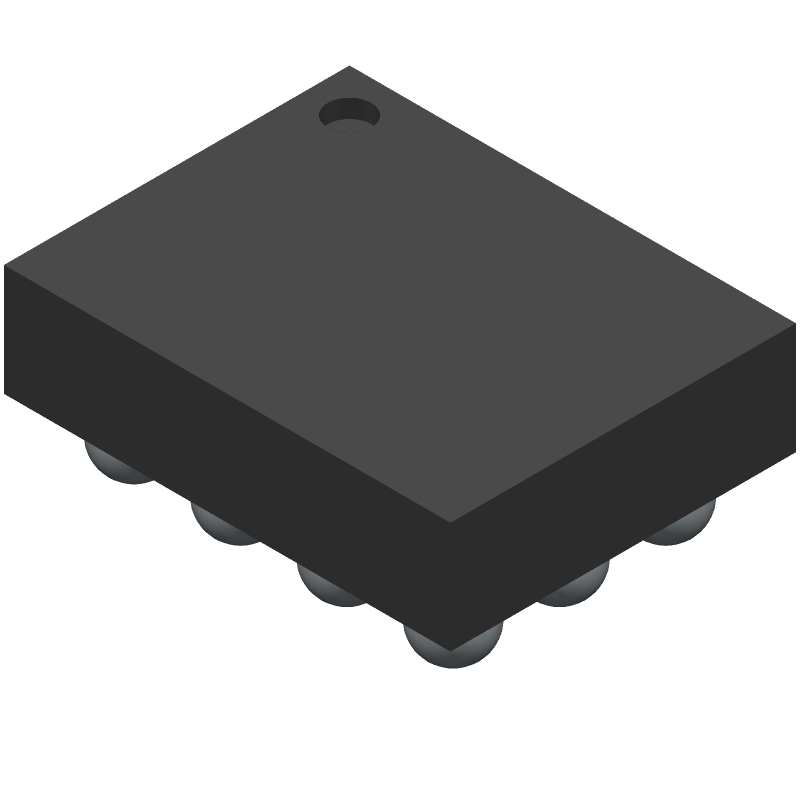

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
MAX97200BEWC+T Part Data Attributes
|
|
MAX97200BEWC+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
MAX97200BEWC+T
Analog Devices Inc
0.045W, 2 Channel(s), 1 Func, BICMOS, PBGA12
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | 12-WLCSP-N/A | |
| Package Description | Vfbga, Bga12,3x4,16 | |
| Pin Count | 12 | |
| Manufacturer Package Code | 12-WLCSP-N/A | |
| Reach Compliance Code | Compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Date Of Intro | 2010-02-17 | |
| Consumer IC Type | Class H Audio Amplifier | |
| Gain | ||
| JESD-30 Code | R-PBGA-B12 | |
| Length | 1.68 Mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 12 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Power-Nom | 0.045 W | |
| Package Body Material | Plastic/Epoxy | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA12,3X4,16 | |
| Package Shape | Rectangular | |
| Package Style | Grid Array, Very Thin Profile, Fine Pitch | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.69 Mm | |
| Supply Voltage-Max (Vsup) | 1.98 V | |
| Supply Voltage-Min (Vsup) | 1.62 V | |
| Surface Mount | Yes | |
| Technology | Bicmos | |
| Temperature Grade | Industrial | |
| Terminal Finish | Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni) | |
| Terminal Form | Ball | |
| Terminal Pitch | 0.4 Mm | |
| Terminal Position | Bottom | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.3 Mm |
