MSP430F6724IPZ by: Texas Instruments

Single-phase metering SoC with 2 Sigma-Delta ADCs, LCD, real-time clock, 96KB Flash, 4KB RAM 100-LQFP -40 to 85

Part Details for MSP430F6724IPZ by Texas Instruments

Overview of MSP430F6724IPZ by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Virtual Reality (VR), Augmented Reality (AR), and Vision Systems

Price & Stock for MSP430F6724IPZ

Part # Distributor Description Stock Price Buy
DISTI # MSP430F6724IPZ-ND
DigiKey IC MCU 16BIT 96KB FLASH 100LQFP Min Qty: 180 Lead time: 6 Weeks Container: Tray Temporarily Out of Stock
  • 180 $5.8015
$5.8015 Buy Now
DISTI # 595-MSP430F6724IPZ
Mouser Electronics 16-bit Microcontrollers - MCU Mixed Signal MCU RoHS: Compliant 0
  • 180 $5.8000
  • 270 $5.5300
  • 450 $5.0500
  • 900 $4.3900
$4.3900 / $5.8000 Order Now
DISTI # MSP430F6724IPZ
TME IC: microcontroller, LQFP100, 4kBSRAM,96kBFLASH, 1.8÷3.6VDC Min Qty: 1 0
  • 1 $7.4000
  • 5 $6.8400
$6.8400 / $7.4000 RFQ
Ameya Holding Limited IC MCU 16BIT 96KB FLASH 100LQFP 5815
RFQ

Part Details for MSP430F6724IPZ

MSP430F6724IPZ CAD Models

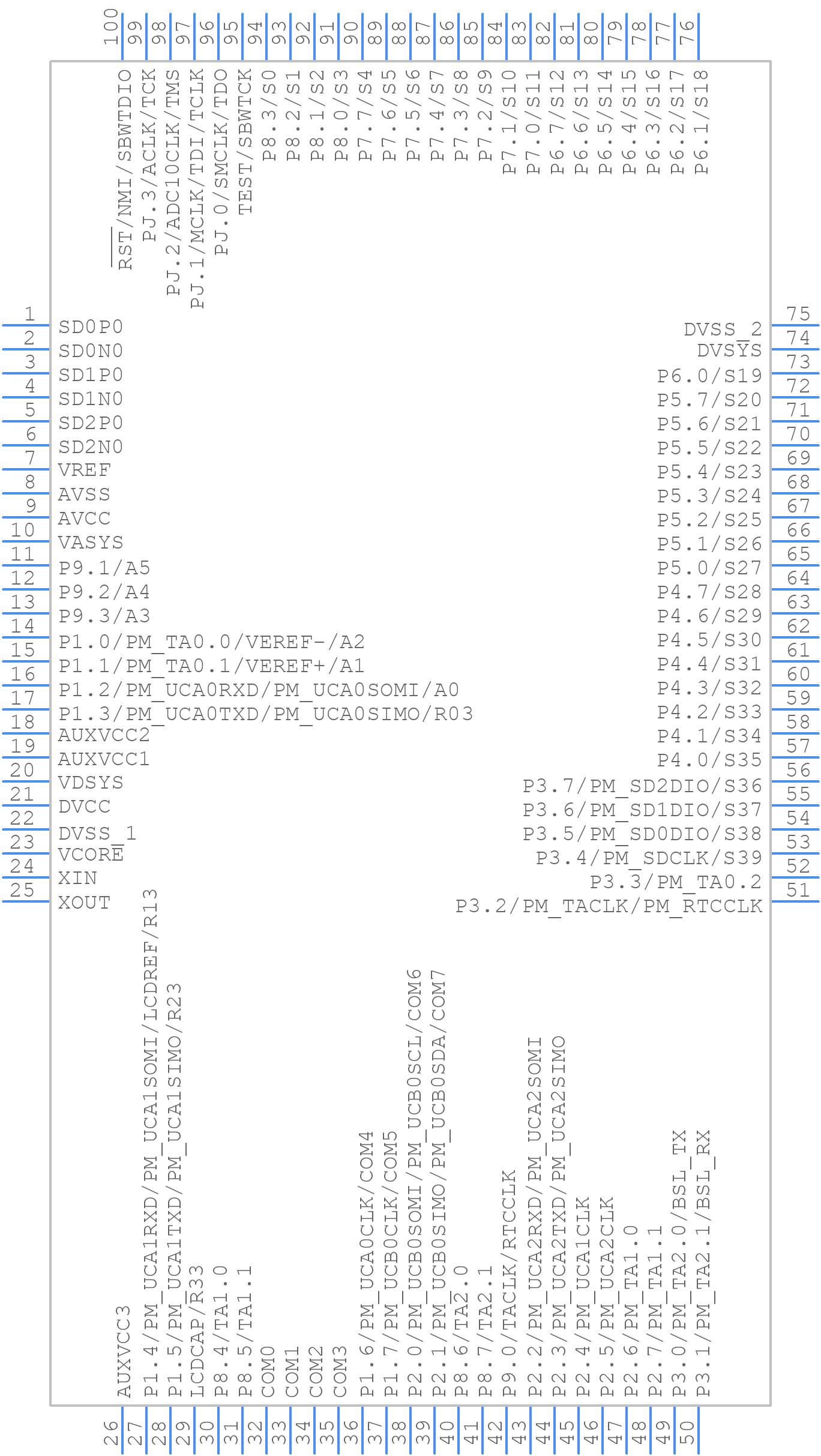

  • Part Symbol
