Diodes / Transient Suppressors / SM8S33ATHE3/I
Datasheets
SM8S33ATHE3/I by:

Trans Voltage Suppressor Diode, 6600W, 33V V(RWM), Unidirectional, 1 Element, Silicon, DO-218AC,

Part Details for SM8S33ATHE3/I by Vishay Intertechnologies

Overview of SM8S33ATHE3/I by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for SM8S33ATHE3/I

Part # Distributor Description Stock Price Buy
DISTI # 49Y2678
Newark 8W,33V 5%,smd Par |Vishay SM8S33ATHE3/I Min Qty: 750 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $1.9100
  • 1,000 $1.8000
  • 2,000 $1.7000
  • 4,000 $1.5400
  • 6,000 $1.4800
  • 10,000 $1.4200
$1.4200 / $1.9100 Buy Now
DISTI # 98AC2612
Newark Do-214Aa (Smb) Rohs Compliant: Yes |Vishay SM8S33ATHE3/I Min Qty: 750 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $1.9100
  • 1,000 $1.8000
  • 2,000 $1.7000
  • 4,000 $1.5400
  • 6,000 $1.4800
  • 10,000 $1.4200
$1.4200 / $1.9100 Buy Now
DISTI # SM8S33ATHE3/I
Avnet Americas 8W,33V 5%,SMD PAR - Tape and Reel (Alt: SM8S33ATHE3/I) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Container: Reel 9000
  • 750 $1.3200
$1.3200 Buy Now
DISTI # 78-SM8S33ATHE3I
Mouser Electronics ESD Suppressors / TVS Diodes 8W,33V 5%,SMD PAR RoHS: Compliant 7631
  • 1 $2.7600
  • 10 $2.3600
  • 25 $2.3100
  • 100 $1.9300
  • 250 $1.8800
  • 500 $1.6500
  • 750 $1.5900
$1.5900 / $2.7600 Buy Now
Future Electronics 8W,33V 5%,SMD PAR RoHS: Compliant pbFree: Yes Min Qty: 750 Package Multiple: 750 Container: Reel 0
Reel
  • 750 $1.7300
  • 1,500 $1.7000
  • 2,250 $1.6800
$1.6800 / $1.7300 Buy Now
DISTI # SM8S33ATHE3/I
TTI ESD Protection Diodes / TVS Diodes 8W,33V 5%,SMD PAR RoHS: Compliant pbFree: Pb-Free Min Qty: 750 Package Multiple: 750 Container: Reel Americas - 0
  • 750 $1.3900
$1.3900 Buy Now
DISTI # SM8S33ATHE3/I
Avnet Asia 8W,33V 5%,SMD PAR (Alt: SM8S33ATHE3/I) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Lead time: 10 Weeks, 0 Days 0
  • 750 $2.6404
  • 1,500 $2.6037
  • 2,250 $2.5681
  • 3,750 $2.5334
  • 7,500 $2.4667
  • 18,750 $2.4035
  • 37,500 $2.3434
$2.3434 / $2.6404 Buy Now
DISTI # C1S803605622455
Chip1Stop TVS RoHS: Compliant Container: Cut Tape 89
  • 1 $1.5600
  • 10 $1.4500
  • 50 $1.4200
$1.4200 / $1.5600 Buy Now
DISTI # SM8S33ATHE3/I
EBV Elektronik (Alt: SM8S33ATHE3/I) RoHS: Compliant Min Qty: 750 Package Multiple: 750 Lead time: 9 Weeks, 0 Days EBV - 0
Buy Now
LCSC 124A 6.6kW 53.3V 36.7V Unidirectional 33V DO-218AC ESD and Surge Protection (TVS/ESD) ROHS 11
  • 1 $1.4107
  • 10 $1.2024
  • 30 $1.0866
  • 100 $0.9570
  • 750 $0.7810
  • 1,500 $0.7548
$0.7548 / $1.4107 Buy Now
Sense Electronic Company Limited DO-218AB 9732
RFQ
Wuhan P&S 33VWM,6600W,Uni-directional SMT TVS Diode Min Qty: 1 19500
  • 1 $9.4100
  • 100 $3.7700
  • 500 $3.4800
  • 1,000 $3.3900
$3.3900 / $9.4100 Buy Now

Part Details for SM8S33ATHE3/I

SM8S33ATHE3/I CAD Models

  • Part Symbol

    Part Symbol

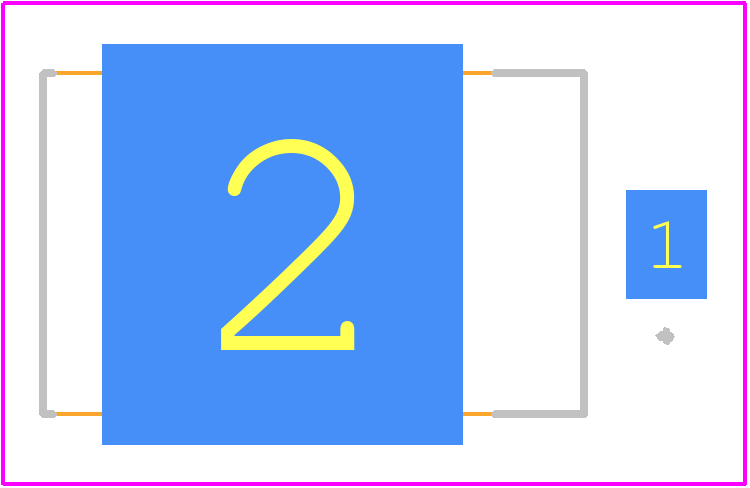

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

SM8S33ATHE3/I Part Data Attributes

Parametric Data
SM8S33ATHE3/I Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
SM8S33ATHE3/I Vishay Intertechnologies Trans Voltage Suppressor Diode, 6600W, 33V V(RWM), Unidirectional, 1 Element, Silicon, DO-218AC,
Rohs Code Yes
Part Life Cycle Code End Of Life
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer Vishay
Additional Feature HIGH RELIABILITY
Breakdown Voltage-Max 40.6 V
Breakdown Voltage-Min 36.7 V
Breakdown Voltage-Nom 38.7 V
Case Connection ANODE
Clamping Voltage-Max 53.3 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-218AC
JESD-30 Code R-PSSO-C1
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 6600 W
Number of Elements 1
Number of Terminals 1
Operating Temperature-Max 175 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 245
Polarity UNIDIRECTIONAL
Power Dissipation-Max 8 W
Reference Standard AEC-Q101
Rep Pk Reverse Voltage-Max 33 V
Reverse Current-Max 150 µA
Reverse Test Voltage 33 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form C BEND
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
