ST715M25R Information
ST715M25R by STMicroelectronics is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ST715M25R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AH2905
|
Newark | Ldo, Fixed, 2.5V, 0.085A, -40 To 125Degc Rohs Compliant: Yes |Stmicroelectronics ST715M25R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2112 |
|
$0.3690 / $0.7620 | Buy Now |
|
DISTI #
497-6998-1-ND
|
DigiKey | IC REG LINEAR 2.5V 85MA SOT23-5 Min Qty: 1 Lead time: 24 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
950 In Stock |
|
$0.3182 / $0.7400 | Buy Now |
|
DISTI #
ST715M25R
|
Avnet Americas | LDO Regulator Pos 2.5V 0.085A 5-Pin SOT-23 T/R - Tape and Reel (Alt: ST715M25R) COO: Italy RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days Container: Tape & Reel | 0 |
|
$0.3149 / $0.3214 | Buy Now |
|
DISTI #
511-ST715M25R
|
Mouser Electronics | LDO Voltage Regulators ST715xx high Volt 85 mA LDO RoHS: Compliant | 4357 |
|
$0.3320 / $0.7400 | Buy Now |
|
|
STMicroelectronics | High input voltage, 85 mA LDO linear regulator COO: Italy RoHS: Compliant Min Qty: 1 | 4357 |
|
$0.3700 / $0.7300 | Buy Now |
|
|
Future Electronics | ST715 Series 85 mA 2.5 V Fixed Output SMT LDO Linear Regulator - SOT-23-5 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks Container: Reel | 0Reel |
|
$0.3000 / $0.3100 | Buy Now |
|
|
Quest Components | 2.5 V FIXED POSITIVE LDO REGULATOR, 1 V DROPOUT, PDSO5 | 15583 |
|
$0.1701 / $0.4860 | Buy Now |
|
|
Rochester Electronics | ST715 - High Input Voltage, 85 mA LDO Linear Regulator RoHS: Compliant Status: Active Min Qty: 1 | 12000 |
|
$0.3162 / $0.5100 | Buy Now |
|
DISTI #
ST715M25R
|
TME | IC: voltage regulator, LDO,linear,fixed, 2.5V, 85mA, SOT23-5, SMD Min Qty: 1 | 0 |
|
$0.3840 / $0.8500 | RFQ |
|
DISTI #
ST715M25R
|
IBS Electronics | ST715M25R by STMicroelectronics is a 2.5V fixed output LDO linear regulator from the ST715 series, delivering 85mA with low dropout in a compact SOT-23-5 package, ideal for space-constrained applications. Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.3780 / $0.4550 | Buy Now |
US Tariff Estimator: ST715M25R by STMicroelectronics
Calculations from this tool are estimations only for imports into the United States. Please refer to the distributor or manufacturer and reference official US government sources and authorities to verify any final purchase costs.
Part Details for ST715M25R
ST715M25R CAD Models
-

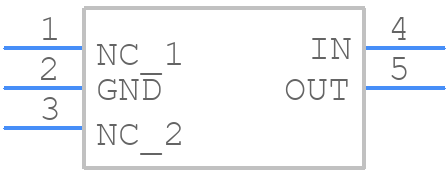

Part Symbol
-
Footprint
-

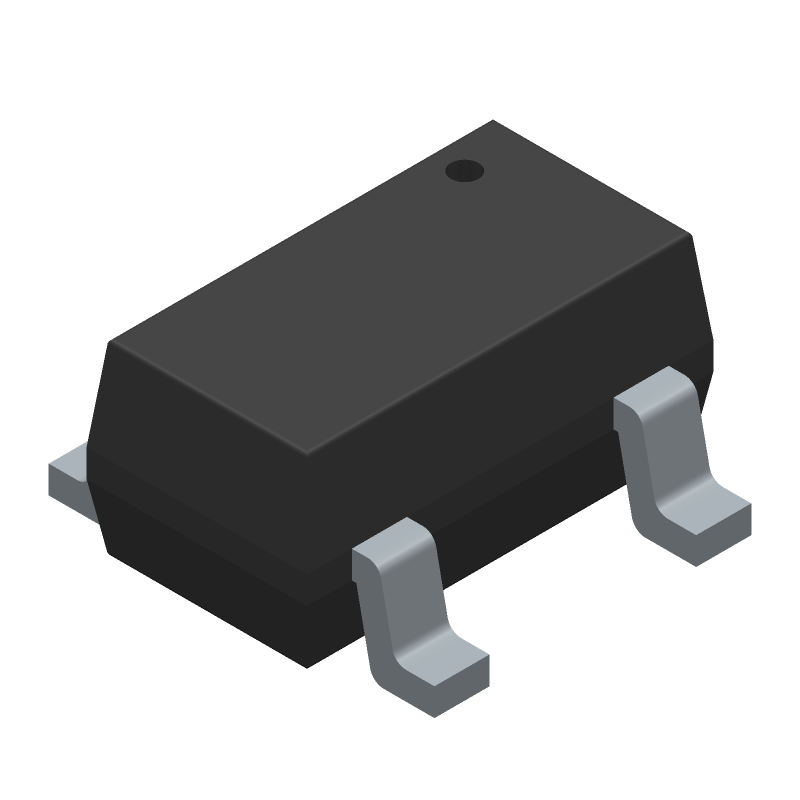

3D Model
