STD13003T4 Information
STD13003T4 by STMicroelectronics is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for STD13003T4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-12551-1-ND
|
DigiKey | TRANS NPN 400V 1.5A DPAK Min Qty: 1 Container: Cut Tape |
973 Cut Tape |
|
$0.3761 / $1.2900 | Buy Now |
|
DISTI #
497-12551-6-ND
|
DigiKey | TRANS NPN 400V 1.5A DPAK Min Qty: 1 Container: Digi-Reel |
973 Digi-Reel® |
|
$0.3761 / $1.2900 | Buy Now |
|
DISTI #
497-12551-2-ND
|
DigiKey | TRANS NPN 400V 1.5A DPAK Min Qty: 2500 Container: Tape & Reel |
0 Tape & Reel |
|
$0.2642 / $0.3347 | Buy Now |
|
DISTI #
26118745
|
Verical | Trans GP BJT NPN 400V 1.5A 20000mW 3-Pin(2+Tab) DPAK T/R RoHS: Exempt Min Qty: 27 Package Multiple: 1 Date Code: 1322 | Americas - 74323 |
|
$0.2205 | Buy Now |
|
DISTI #
511-STD13003T4
|
Mouser Electronics | Bipolar Transistors - BJT H/V FST SWCH PW TRNS NPN RoHS: Compliant | 1605 |
|
$0.2630 / $1.2900 | Buy Now |
|
DISTI #
V79:2366_17795067
|
Arrow Electronics | Trans GP BJT NPN 400V 1.5A 20000mW 3-Pin(2+Tab) DPAK T/R COO: China RoHS: Exempt Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 1322 | Americas - 74323 |
|
$0.2205 | Buy Now |
|
|
Quest Components | 1698 |
|
$0.1547 / $0.5950 | Buy Now | |
|
DISTI #
V79:2366_17795067
|
Arrow Electronics | Trans GP BJT NPN 400V 1.5A 20000mW 3-Pin(2+Tab) DPAK T/R COO: China RoHS: Exempt Min Qty: 1 Package Multiple: 1 Lead time: 99 Weeks Date Code: 1322 | Americas - 74323 |
|
$0.2205 | Buy Now |
|
DISTI #
26118745
|
Verical | Trans GP BJT NPN 400V 1.5A 20000mW 3-Pin(2+Tab) DPAK T/R COO: China RoHS: Exempt Min Qty: 27 Package Multiple: 1 Date Code: 1322 | Americas - 74323 |
|
$0.2205 | Buy Now |
|
DISTI #
26118745
|
Verical | Trans GP BJT NPN 400V 1.5A 20000mW 3-Pin(2+Tab) DPAK T/R COO: China RoHS: Exempt Min Qty: 27 Package Multiple: 1 Date Code: 1322 | Americas - 74323 |
|
$0.2205 | Buy Now |
STD13003T4 CAD Models
-
Part Symbol
-
Footprint
-

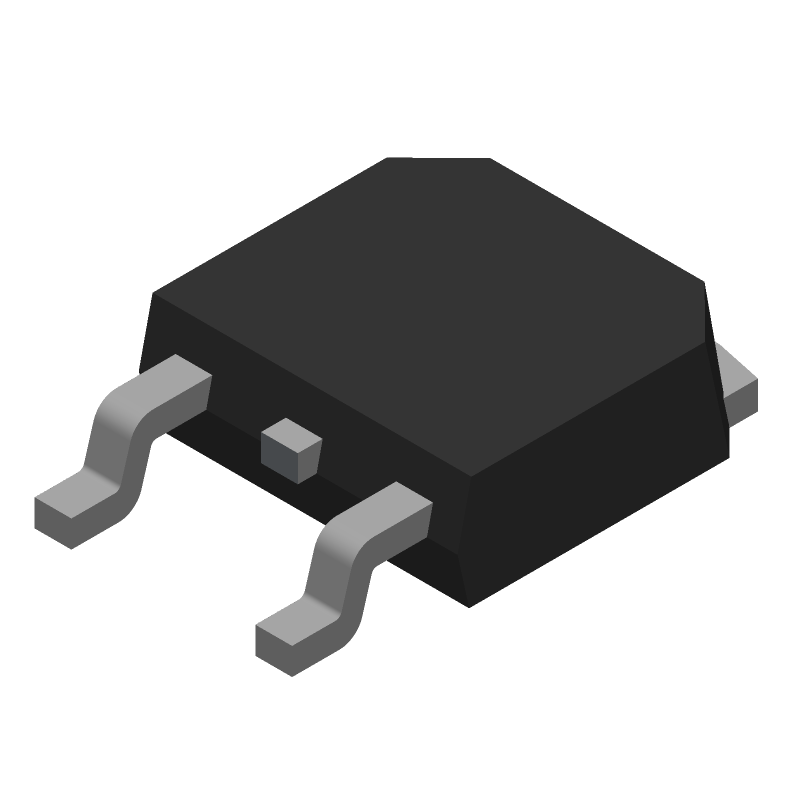

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
STD13003T4 Part Data Attributes
|
|
STD13003T4
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
STD13003T4
STMicroelectronics
Power Bipolar Transistor, 1.5A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-252AA, Plastic/Epoxy, 2 Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Part Package Code | TO-252AA | |
| Package Description | To-252, Dpak-3 | |
| Pin Count | 3 | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 14 Weeks | |
| Collector Current-Max (IC) | 1.5 A | |
| Collector-Emitter Voltage-Max | 400 V | |
| Configuration | Single | |
| DC Current Gain-Min (hFE) | 5 | |
| JEDEC-95 Code | TO-252AA | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | Plastic/Epoxy | |
| Package Shape | Rectangular | |
| Package Style | Small Outline | |
| Polarity/Channel Type | Npn | |
| Power Dissipation-Max (Abs) | 20 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | Yes | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | Gull Wing | |
| Terminal Position | Single | |
| Transistor Application | Switching | |
| Transistor Element Material | Silicon |
